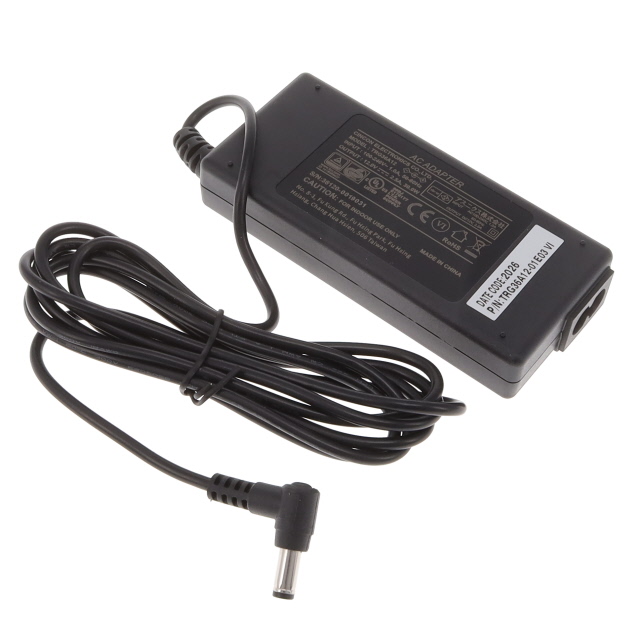

TRG36A12 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 30W

Part	Weight	Weight	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption	Voltage - Output	Input Connector	Efficiency	Form	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Current - Output (Max) [Max]	Cord Length	Cord Length	Polarization	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Applications	Standard Number
Cincon Electronics Co. LTD TRG36A12-11E03 VI	190.06 g	0.419 lb	Cord (Sold Separately)	-20 ░C	60 °C	75 mW	12 V	IEC 320-C8	CoC Tier 2 Level VI	Desktop (Class II)	264 VAC	90 VAC	30 Watts	2.5 A	70.9 "	1.8 m	Positive Center	International	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	111 mm	51 mm	4.37 in	0.89 "	22.5 mm	2.01 "	CE cULus FCC GS PSE TUV	ITE (Commercial)
Cincon Electronics Co. LTD TRG36A12-01E03 VI			Cord (Sold Separately)	-20 ░C	60 °C	75 mW	12 V	IEC 320-C8	CoC Tier 2 Level VI	Desktop (Class II)	264 VAC	90 VAC	30 Watts	2.5 A	70.9 "	1.8 m	Positive Center	International	Barrel Plug R/A	2.5 mm 5.5 mm	12 mm	111 mm	51 mm	4.37 in	0.89 "	22.5 mm	2.01 "	CE cULus FCC GS PSE TUV	ITE (Commercial)	60950-1 62368-1
