X4 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEATSHRNK TUBING 12.0 BLACK 50M

Part	Spool Size [x]	Spool Size [x]	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Features	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Inner Diameter - Supplied
TE Connectivity AMP Connectors X4-12.0-0-FSP-SM	164 '	50 m	50 m	164 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black	12.9 mm	0.508 in	Enter Number of Meters in Order Quantity	144 Months	5.99 mm	0.236 in	Tubing Flexible	0.33 mm	0.013 in

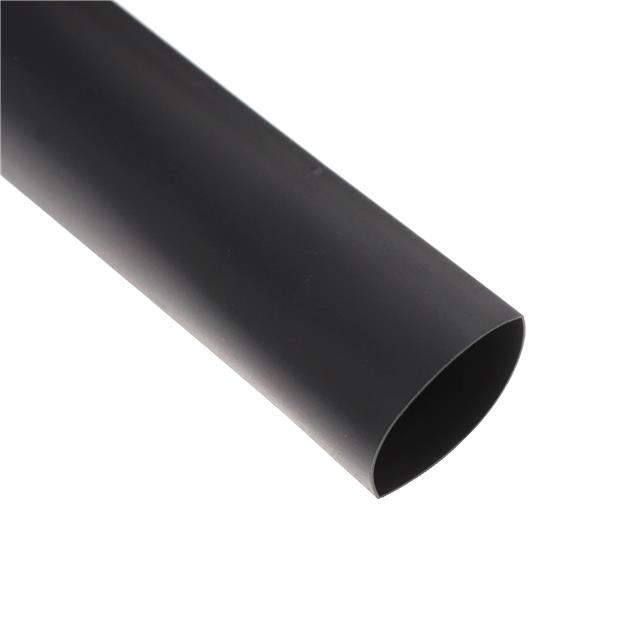

TE Connectivity AMP Connectors X4-9.0-0-FSP-SM	164 '	50 m	1 m 10 m 25 m 50 m	3.28 ft 32.8 ft 82 ft 164 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black	9.5 mm	0.374 "	Enter Number of Meters in Order Quantity	144 Months	4.5 mm	0.177 "	Tubing Flexible	0.33 mm	0.013 in	16.4 ft	5 m
TE Connectivity AMP Connectors X4-3.0-0-SP			25 m 50 m 200 m	82 ft 164 ft 656.2 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black	3.3 mm	0.13 "		144 Months	1.52 mm	0.06 in	Tubing Flexible	0.28 mm	0.011 in	16.4 ft	5 m
TE Connectivity AMP Connectors X4-8.0-0-FSP-SM	164 '	50 m	1 m 10 m 25 m 50 m	3.28 ft 32.8 ft 82 ft 164 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black	8.51 mm	0.335 in	Enter Number of Meters in Order Quantity	144 Months	3.99 mm	0.157 "	Tubing Flexible	0.33 mm	0.013 in	16.4 ft	5 m
TE Connectivity AMP Connectors X4-1.0-0-SP			1 m 25 m 200 m	3.28 ft 82 ft 656.2 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black	1.4 mm	0.055 in		144 Months	0.51 mm	0.02 in	Tubing Flexible	0.25 mm	0.01 in	16.4 ft	5 m
TE Connectivity AMP Connectors X4-10.0-0-FSP-SM	164 '	50 m	1 m 10 m 25 m 50 m	3.28 ft 32.8 ft 82 ft 164 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black	10.49 mm	0.413 in	Enter Number of Meters in Order Quantity	144 Months	5.08 mm	0.2 in	Tubing Flexible	0.33 mm	0.013 in	16.4 ft	5 m
TE Connectivity AMP Connectors X4-0.8-0-SP-SM			1 m 25 m 50 m 200 m	3.28 ft 82 ft 164 ft 656.2 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black	1.17 mm 1.19 mm	0.046 " 0.047 "	Enter Number of Meters in Order Quantity	144 Months	0.41 mm	0.016 "	Tubing Flexible	0.25 mm	0.01 in	16.4 ft	5 m
TE Connectivity AMP Connectors X4-3.5-0-SP			1 m 200 m	3.28 ft 656.2 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black		0.15 in		144 Months	1.75 mm	0.069 in	Tubing Flexible	0.28 mm	0.011 in			3.81 mm
TE Connectivity AMP Connectors X4-3.5-0-SP-SM			1 m 25 m 50 m 200 m	3.28 ft 82 ft 164 ft 656.2 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black		0.15 in	Enter Number of Meters in Order Quantity	144 Months	1.75 mm	0.069 in	Tubing Flexible	0.28 mm	0.011 in	16.4 ft 328.1 ft	5 m 100 m	3.81 mm
TE Connectivity AMP Connectors X4-1.5-0-SP-SM	656.2 ft	200 m	1 m 50 m 200 m	3.28 ft 164 ft 656.2 ft	125 °C	-30 ░C	95 °F	35 °C	65 °F	18 °C	70 °C	1	2	Polyolefin (PO) Irradiated Halogen Free	Flame Retardant	Black	1.91 mm	0.075 in	Enter Number of Meters in Order Quantity	144 Months	0.76 mm	0.03 in	Tubing Flexible	0.25 mm	0.01 in	16.4 ft	5 m
