087332 Series

Manufacturer: Molex

Catalog

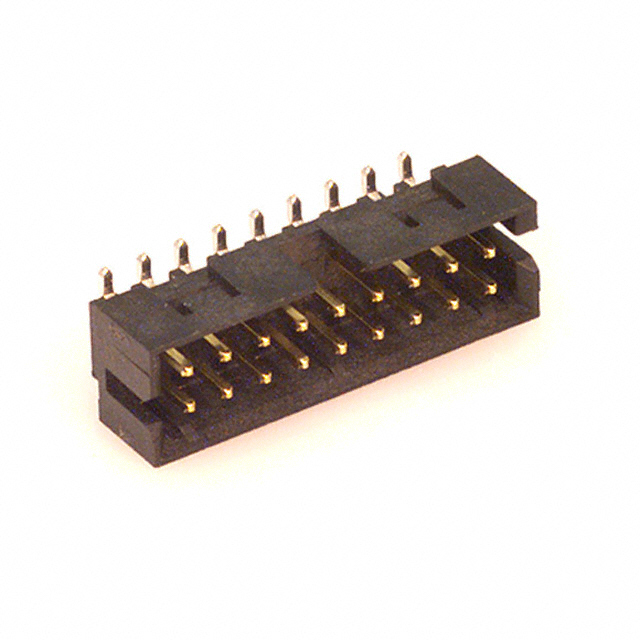

CONN HEADER SMD 18POS 2MM

Part	Features	Shrouding	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Mounting Type	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Style	Insulation Height [z]	Insulation Height [z]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Number of Positions	Termination	Number of Positions Loaded	Material Flammability Rating	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Connector Type	Insulation Color
Molex 0873321820	Board Guide Keying Slot	Shrouded - 4 Wall	Gold	74.8 Áin	1.9 Ám	Tin-Lead	Surface Mount	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 in	2 mm	2	Square	0.079 in	2 mm	Board to Cable/Wire	6.4 mm	0.252 in	Latch Holder	15 µin	0.38 µm	Automotive General Purpose Telecommunications	18	Solder	All	UL94 V-0	Male Pin	0.141 in	3.6 mm	Phosphor Bronze	Header	Black
Molex 0873322420	Board Guide Keying Slot	Shrouded - 4 Wall	Gold	74.8 Áin	1.9 Ám	Tin-Lead	Surface Mount	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 in	2 mm	2	Square	0.079 in	2 mm	Board to Cable/Wire	6.4 mm	0.252 in	Latch Holder	15 µin	0.38 µm	Automotive General Purpose Telecommunications	24	Solder	All	UL94 V-0	Male Pin	0.141 in	3.6 mm	Phosphor Bronze	Header	Black
