1546122 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

EUROSTYLE 10POS VERT PLUG STCK

Part	Contact Material	Torque - Screw	Torque - Screw	Screw Size	Insulation Height	Insulation Height	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Color	Number of Positions	Pitch	Pitch	Plug Wire Entry	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Positions Per Level	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Type	Features	Mounting Type	Number of Levels	Voltage - UL

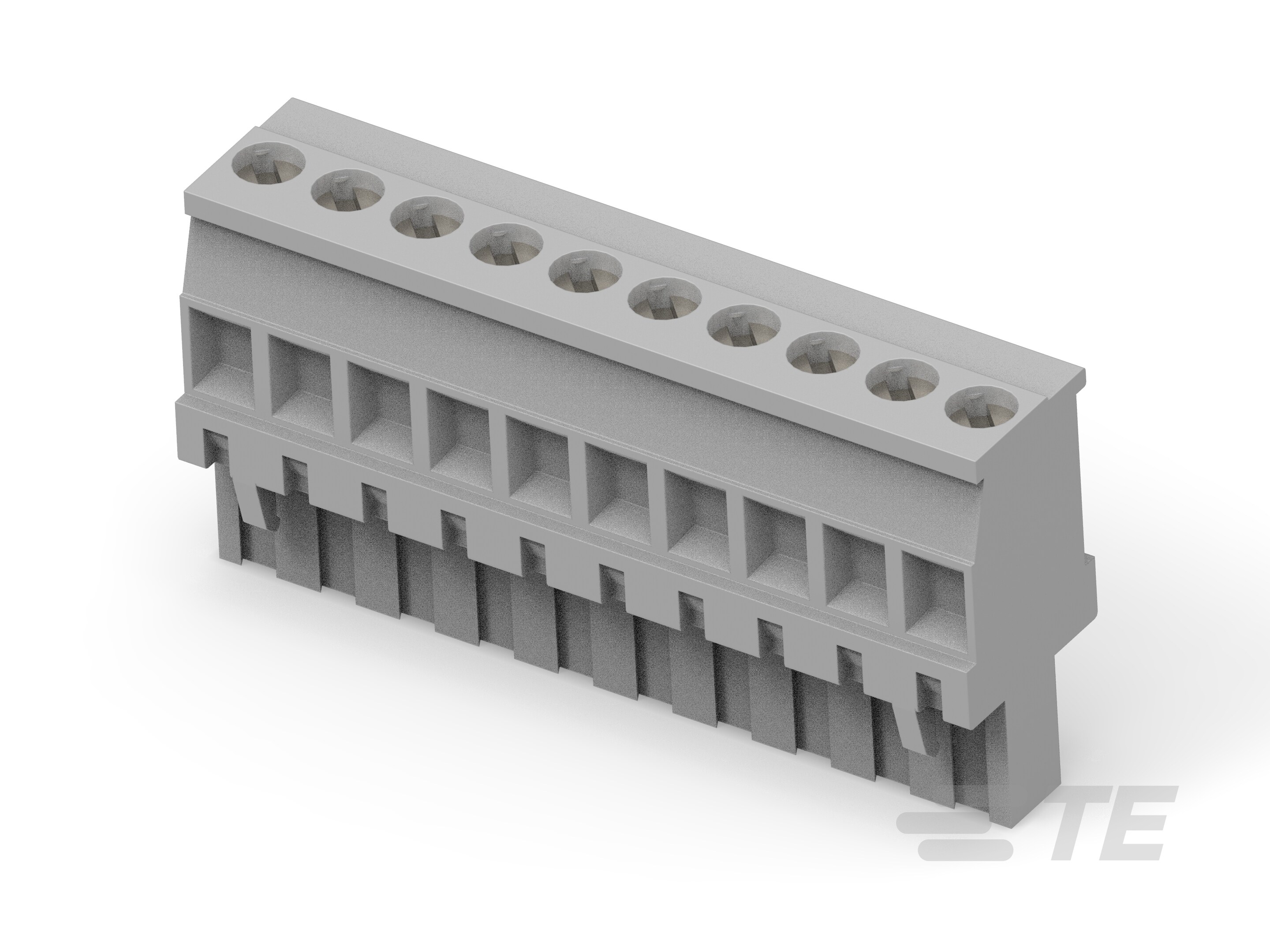

TE Connectivity AMP Connectors 1-1546122-0	Phosphor Bronze	7 Lb-In	0.79 Nm	M3	0.984 "	25 mm	7.5 mm	6 mm	UL94 V-0	Gray	10	5.08 mm	0.2 in	90 °	-40 C	110 °C	Tin	10	30 AWG	12 AWG	Screw - Rising Cage Clamp	3 mm²	0.05 mm²	Plug Female Sockets	Retention Latches (Wire Side)	Free Hanging (In-Line)	1	300 V
TE Connectivity AMP Connectors 1546122-5	Phosphor Bronze	7 Lb-In	0.79 Nm	M3	0.984 "	25 mm	7.5 mm	6 mm	UL94 V-0	Gray	5	5.08 mm	0.2 in	90 °	-40 C	110 °C	Tin	5	30 AWG	12 AWG	Screw - Rising Cage Clamp	3 mm²	0.05 mm²	Plug Female Sockets	Retention Latches (Wire Side)	Free Hanging (In-Line)	1	300 V

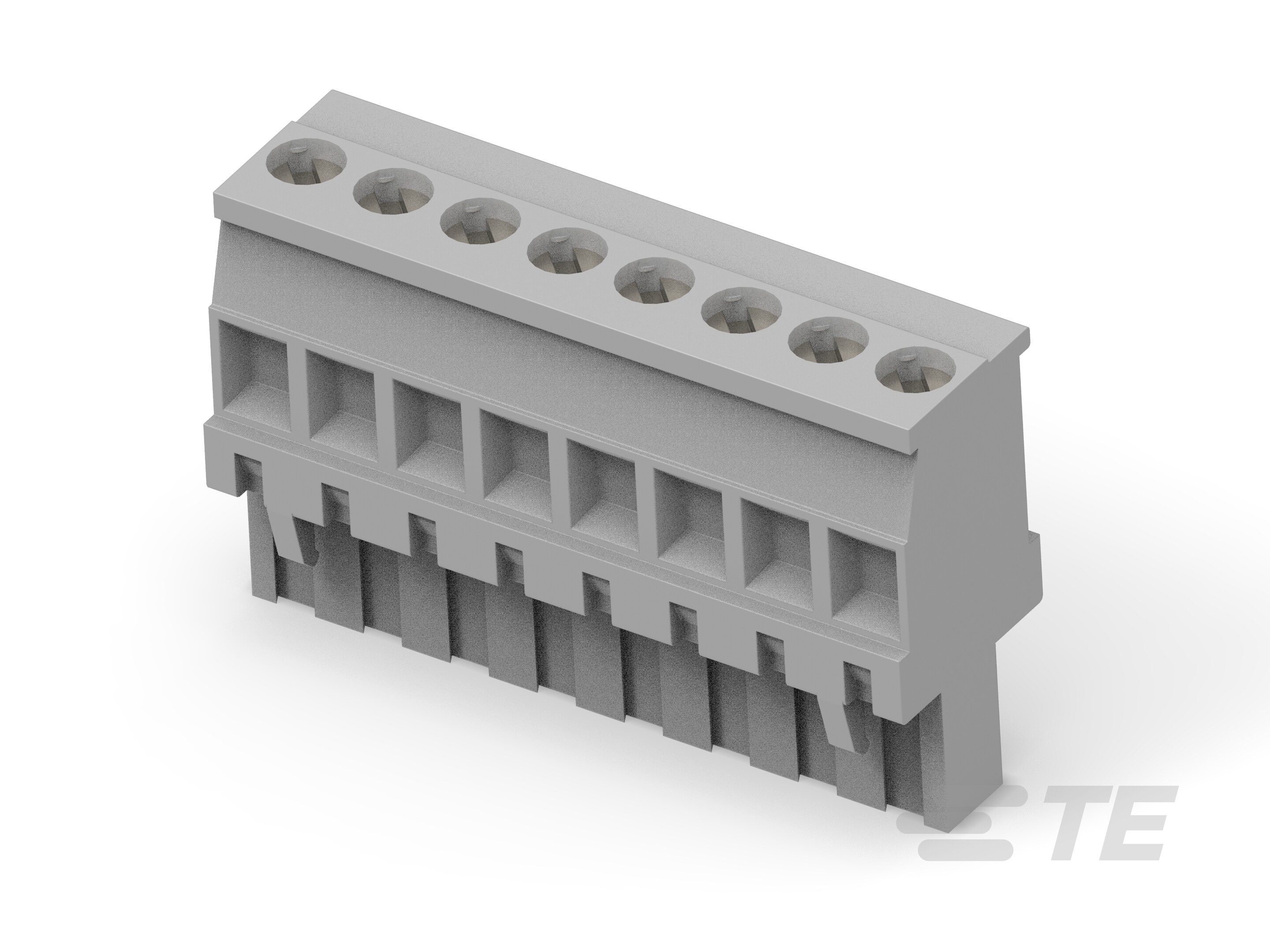

TE Connectivity AMP Connectors 1546122-8	Phosphor Bronze	7 Lb-In	0.79 Nm	M3	0.984 "	25 mm	7.5 mm	6 mm	UL94 V-0	Gray	8	5.08 mm	0.2 in	90 °	-40 C	110 °C	Tin	8	30 AWG	12 AWG	Screw - Rising Cage Clamp	3 mm²	0.05 mm²	Plug Female Sockets	Retention Latches (Wire Side)	Free Hanging (In-Line)	1	300 V
TE Connectivity AMP Connectors 1546122-3	Phosphor Bronze	7 Lb-In	0.79 Nm	M3	0.984 "	25 mm	7.5 mm	6 mm	UL94 V-0	Gray		5.08 mm	0.2 in	90 °	-40 C	110 °C	Tin	3	30 AWG	12 AWG	Screw - Rising Cage Clamp	3 mm²	0.05 mm²	Plug Female Sockets	Retention Latches (Wire Side)	Free Hanging (In-Line)	1	300 V
