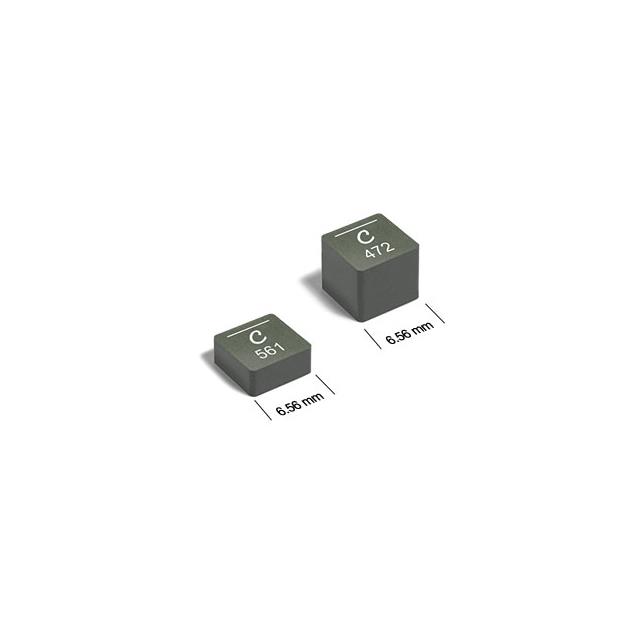

XAL6030 Series
Manufacturer: Coilcraft
Beta
⌘K
POWER INDUCTORS - SMD 2.2UH SHLD 20% 10A 13.97MOHMS AECQ2
| Part | Current - Saturation (Isat) | Ratings | Mounting Type | DC Resistance (DCR) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Material - Core | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | Inductance Frequency - Test | Current Rating (Amps) | Shielding | Package / Case | Frequency - Self Resonant | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | 15.9 A | AEC-Q200 | Surface Mount | 13.97 mOhm | 6.56 mm | 0.25 in | 0.258 " | 6.36 mm | Metal Composite | 2.2 µH | 0.122 in | 3.1 mm | Molded | 1 MHz | 10 A | Shielded | Nonstandard | 30 MHz | 20 % | 125 °C | -40 C |
