RUMC33 Series

Catalog

HARMONY, UNIVERSAL PLUG-IN RELAY

Part	Coil Resistance	Switching Voltage [Max]	Must Operate Voltage	Contact Form	Release Time	Coil Type	Approval Agency	Coil Current	Contact Rating (Current)	Relay Type	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Contact Material	Mounting Type	Features	Must Release Voltage	Termination Style	Load - Max Switching
SCHNEIDER ELECTRIC RUMC33GD	7.3 kOhms	28 VDC 250 VAC	100 VDC	3PDT (3 Form C)	20 ms	Non Latching	CSA EAC UL	17.1 mA	10 A	General Purpose	125 VDC	55 °C	-40 C	20 ms	Silver Nickel (AgNi)	Socketable	Lighted Indicator	12.5 VDC	Plug In	280 W 2500 VA
SCHNEIDER ELECTRIC RUMC33B7	72 Ohms	28 VDC 250 VAC	19.2 VAC	3PDT (3 Form C)	20 ms	Non Latching	CSA EAC UL	333.3 mA	10 A	General Purpose	24 VAC	55 °C	-40 C	20 ms	Silver Nickel (AgNi)	Socketable	Lighted Indicator	3.6 VAC	Plug In	280 W 2500 VA
SCHNEIDER ELECTRIC RUMC33BD	470 Ohms	28 VDC 250 VAC	19.2 VDC	3PDT (3 Form C)	20 ms	Non Latching	CSA EAC UL	51.1 mA	10 A	General Purpose	24 VDC	55 °C	-40 C	20 ms	Silver Nickel (AgNi)	Socketable	Lighted Indicator	2.4 VDC	Plug In	280 W 2500 VA

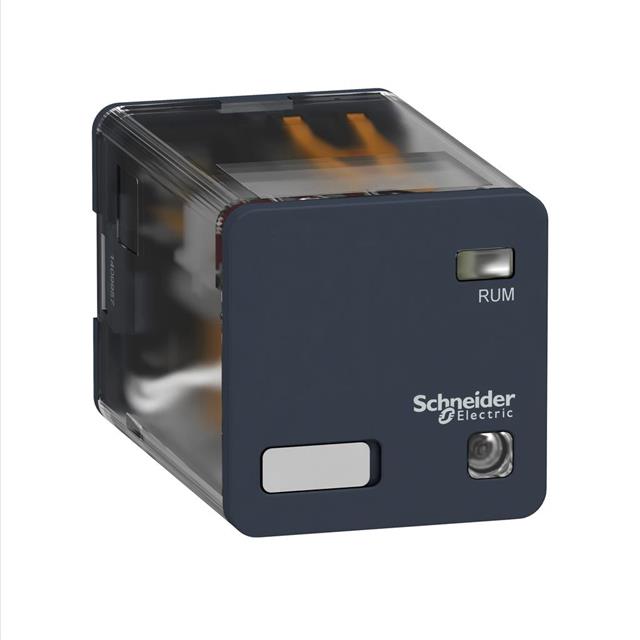

SCHNEIDER ELECTRIC RUMC33F7	1.7 kOhms	28 VDC 250 VAC	96 VAC	3PDT (3 Form C)	20 ms	Non Latching	CSA EAC UL	70.6 mA	10 A	General Purpose	120 VAC	55 °C	-40 C	20 ms	Silver Nickel (AgNi)	Socketable	Lighted Indicator	18 VAC	Plug In	280 W 2500 VA
SCHNEIDER ELECTRIC RUMC33P7	6.8 kOhms	28 VDC 250 VAC	184 VAC	3PDT (3 Form C)	20 ms	Non Latching	CSA EAC UL	33.8 mA	10 A	General Purpose	230 VAC	55 °C	-40 C	20 ms	Silver Nickel (AgNi)	Chassis Mount	Lighted Indicator	34.5 VAC	Plug In	280 W 2500 VA
