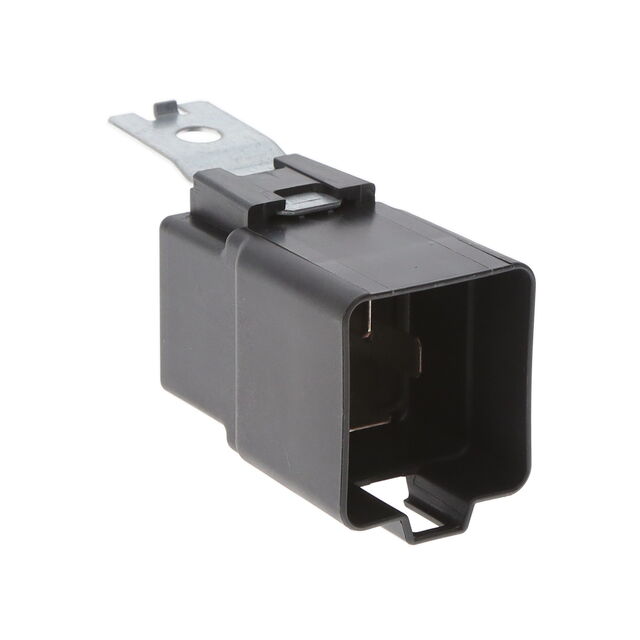

1-1414122 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
V23136J1004X050-EV-CBOX
| Part | Contact Material | Coil Power | Coil Resistance | Coil Current | Contact Rating (Current) | Form A Count | Contact Form | Operate Time | Mounting Type | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Coil Type | Switching Voltage DC (Max) | Must Release Voltage | Coil Voltage | Must Operate Voltage | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver (Ag) | 1.6 W | 90 Ohms | 133.3 mA | 70 A | 1 | SPST-NO | 7 ms | Socketable | Plug In Quick Connect - Multiple Sizes | 125 °C | -40 °C | Non Latching | 14 VDC | 1.6 VDC | 12 VAC | 7.2 VDC | 2 ms |
