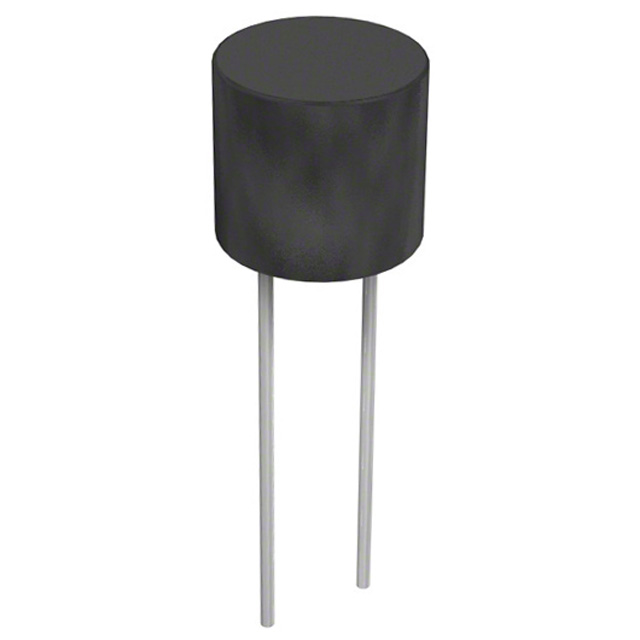

SR-5F Series
Fuses with Leads - Through Hole SR-5F RADIAL FA FUSE
Manufacturer: Eaton - Electronics Division
Catalog
Fuses with Leads - Through Hole SR-5F RADIAL FA FUSE
Beta
⌘K
Fuses with Leads - Through Hole SR-5F RADIAL FA FUSE
Fuses with Leads - Through Hole SR-5F RADIAL FA FUSE
Fuses with Leads - Through Hole SR-5F RADIAL FA FUSE
| Part | DC Cold Resistance | Current Rating (Amps) | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Fuse Type | Approval Agency | Response Time | Voltage Rating - AC | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Breaking Capacity @ Rated Voltage | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

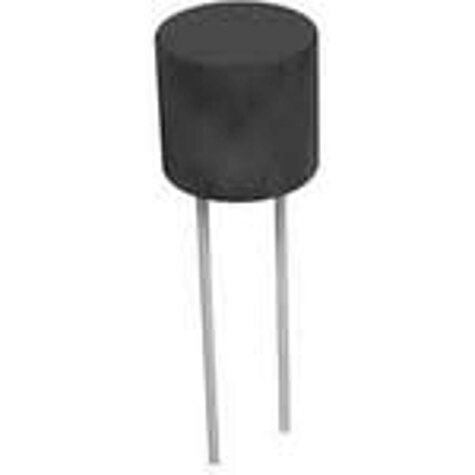

 Eaton - Electronics Division | 0.171 Ohms | 1 A | Through Hole | Can Radial Vertical | 125 °C | -40 C | Board Mount (Cartridge Style Excluded) | cULus PSE | Fast Blow | 250 V | 0.335 in | 8.1 mm | 8.5 mm | 0.319 " | 50 A | 2.6 |
 Eaton - Electronics Division | 6.3 A | Through Hole | Can Radial Vertical | 125 °C | -40 C | Board Mount (Cartridge Style Excluded) | cULus PSE | Fast Blow | 125 V | 0.335 in | 8.1 mm | 8.5 mm | 0.319 " | 50 A | 75 | |
 Eaton - Electronics Division | 0.058 Ohms | 2 A | Through Hole | Can Radial Vertical | 125 °C | -40 C | Board Mount (Cartridge Style Excluded) | cULus PSE | Fast Blow | 250 V | 0.335 in | 8.1 mm | 8.5 mm | 0.319 " | 50 A | 9 |
