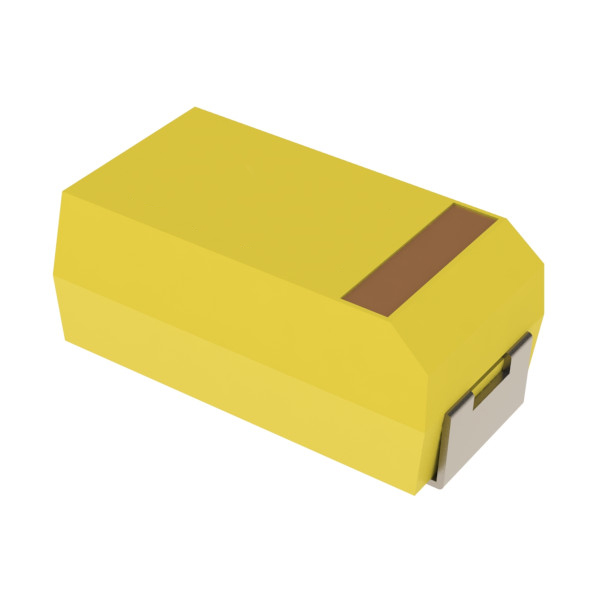

T495 Auto Series
Manufacturer: KEMET
Beta
⌘K
TANTALUM CAPACITORS - SOLID SMD 35V 47UF 2917 10% ESR=300MOHMS AECQ200
| Part | Tolerance | Type | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lifetime @ Temp. | Mounting Type | Ratings | Capacitance | Package / Case | Features | Operating Temperature [Min] | Operating Temperature [Max] | Manufacturer Size Code | Qualification | Grade | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 10 % | Molded | 35 V | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 0.169 in | 4.3 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 47 µF | 2917 (7343 Metric) | Automotive | -55 C | 125 °C | X | |||||
 KEMET | 10 % | Molded | 10 V | 0.126 in | 6 mm | 0.236 in | 3.2 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 33 ÁF | 2312 (6032 Metric) | Automotive | -55 C | 125 °C | AEC-Q200 | Automotive | 380 mOhm | |||||
 KEMET | 10 % | Molded | 20 V | 0.126 in | 6 mm | 0.236 in | 3.2 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 10 µF | 2312 (6032 Metric) | Automotive | -55 C | 125 °C | 1.6 Ohm | |||||||
 KEMET | 20 % | Molded | 35 V | 0.126 in | 6 mm | 0.236 in | 3.2 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 4.7 µF | 2312 (6032 Metric) | Automotive | -55 C | 125 °C | 2000 mOhm | |||||||
 KEMET | 20 % | Molded | 10 V | 0.063 " | 3.2 mm | 0.126 " | 1.6 mm | 0.071 in | 1.8 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 3.3 µF | 1206 (3216 Metric) | Automotive | -55 C | 125 °C | A | 5.5 Ohm | ||||
 KEMET | 10 % | Molded | 25 VDC | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 0.169 in | 4.3 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 68 µF | 2917 (7343 Metric) | Automotive | -55 C | 125 °C | X | AEC-Q200 | Automotive | 150 mOhm | ||
 KEMET | 20 % | Molded | 6.3 VDC | 0.063 " | 3.2 mm | 0.126 " | 1.6 mm | 0.071 in | 1.8 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 22 µF | 1206 (3216 Metric) | Automotive | -55 C | 125 °C | A | |||||
 KEMET | 10 % | Molded | 50 VDC | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 4.7 µF | 2917 (7343 Metric) | Automotive | -55 C | 125 °C | D | 300 mOhm | 0.122 in | 3.1 mm | ||||
 KEMET | 20 % | Molded | 50 VDC | 0.126 in | 6 mm | 0.236 in | 3.2 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 1 µF | 2312 (6032 Metric) | Automotive | -55 C | 125 °C | 4.8 Ohm | |||||||
 KEMET | 10 % | Molded | 35 V | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2000 Hrs | Surface Mount | AEC-Q200 | 10 µF | 2917 (7343 Metric) | Automotive | -55 C | 125 °C | D | 260 mOhm | 0.122 in | 3.1 mm |
