VIP/S Series
Manufacturer: Phoenix Contact
Beta
⌘K
TERMINAL BLOCK INTERFACE MODULES VIP/S/MC/BASE 1- 8/L/C/EX
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Process Side Connection | Wire Gauge [Max] | Wire Gauge [Min] | Width [x] | Width [x] | Control Side Connection | Positions / Poles |
|---|---|---|---|---|---|---|---|---|---|---|---|

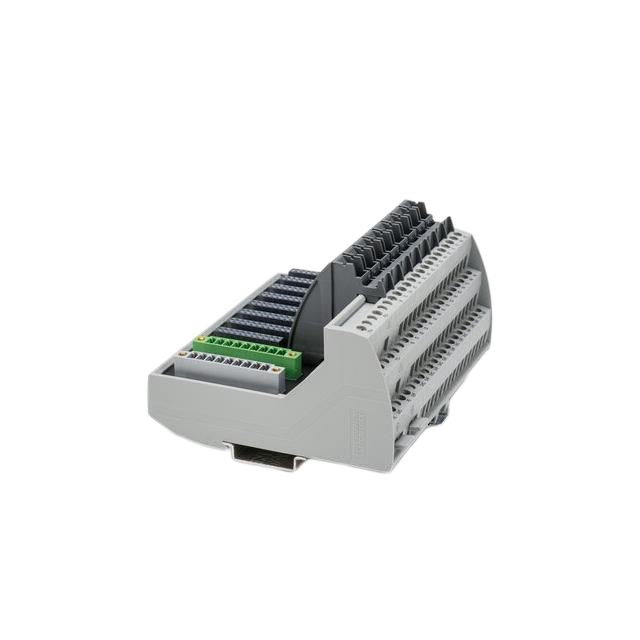

 Phoenix Contact | -40 C | 75 ░C | 2.843 " | 72.2 mm | Terminal Blocks - Screw Connection | 24 AWG | 12 AWG | 118.1 mm | 4.65 " | Terminal Blocks - Header | 9 |

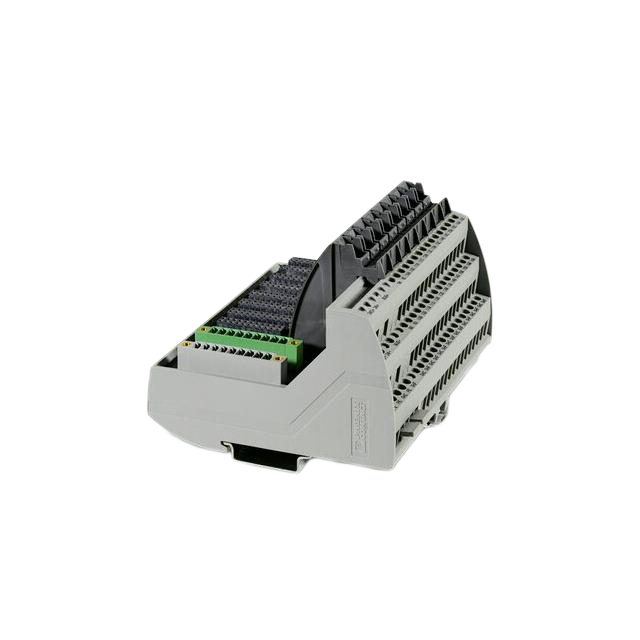

 Phoenix Contact | -40 C | 75 ░C | 2.843 " | 72.2 mm | Terminal Blocks - Screw Connection | 24 AWG | 12 AWG | 118.1 mm | 4.65 " | Terminal Blocks - Header | 9 |
