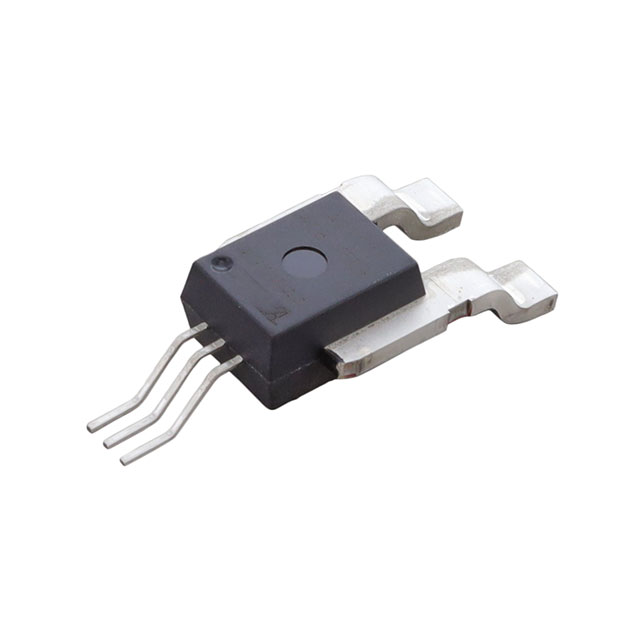

ACS773 Series
Manufacturer: Allegro MicroSystems
Beta
⌘K
OPEN LOOP CURRENT SENSOR AC/DC CURRENT 3.3V 5-PIN SMD TUBE AUTOMOTIVE AEC-Q100
| Part | Output | Linearity | Package / Case | Current - Sensing | Voltage - Supply [Max] | Voltage - Supply [Min] | Grade | Current - Supply (Max) [Max] | Polarization | Operating Temperature [Min] | Operating Temperature [Max] | Sensor Type | Sensitivity | Number of Channels [custom] | Qualification | Frequency [Min] | Frequency [Max] | Supplier Device Package | Response Time | Mounting Type | For Measuring |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Allegro MicroSystems | Ratiometric Voltage | 0.9 % | 5-CB Formed Leads SMT | 100 A | 3.6 V | 3 V | Automotive | 15 mA | Bidirectional | -40 C | 150 °C | Hall Effect | 13.2 mV/A | 1 | AEC-Q100 | DC | 200 kHz | 5-CB | 2.5 µs | Surface Mount | AC DC |
 Allegro MicroSystems | Ratiometric Voltage | 0.9 % | 5-CB Formed Leads SMT | 50 A | 3.6 V | 3 V | Automotive | 15 mA | Bidirectional | -40 C | 150 °C | Hall Effect | 26.4 mV/A | 1 | AEC-Q100 | DC | 200 kHz | 5-CB | 2.5 µs | Surface Mount | AC DC |
