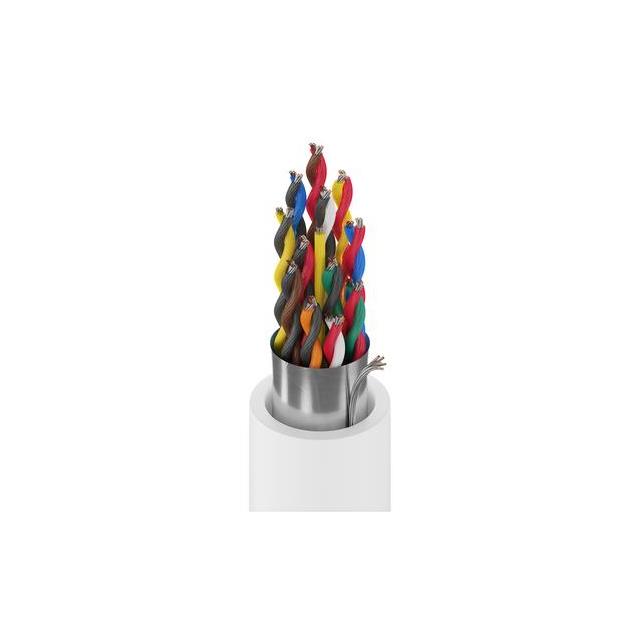

82512 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 25COND 24AWG
| Part | Shield Material | Shield Coverage | Wire Gauge | Conductor Material | Voltage | Cable Type | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Shield Type | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Conductor Insulation | Number of Conductors | Length | Length | Features | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 24 AWG | Copper Tinned | 300 VDC | Multi-Pair | Natural | 0 °C | 60 °C | 0.381 mm | 0.015 in | Foil | 0.278 in | 7.06 mm | 7 | 32 AWG | Computer | Fluorinated Ethylene-Propylene (FEP) | 25 | 304.8 m | 1000 ft | Drain Wire | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
