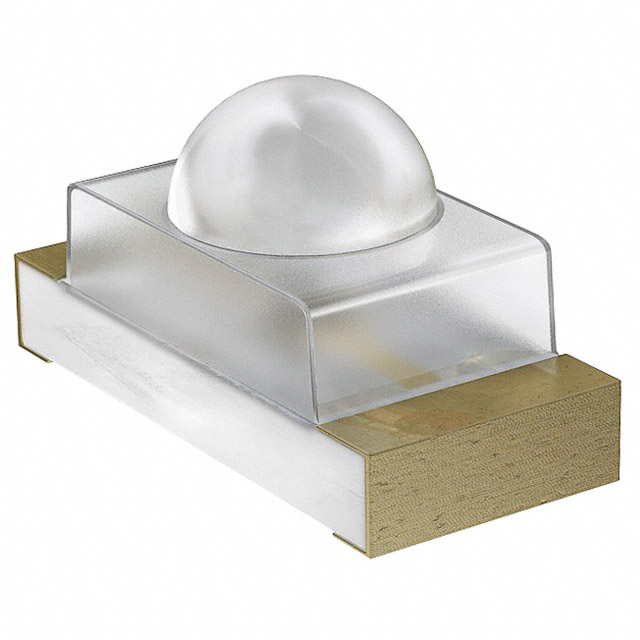

APHD1608 Series

Catalog

LED UNI-COLOR GREEN 574NM 2-PIN CHIP LED T/R

Part	Configuration	Current - Test	Viewing Angle	Lens Color	Lens Transparency	Voltage - Forward (Vf) (Typ)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Package / Case	Package / Case	Lens Style	Millicandela Rating	Wavelength - Dominant	Color	Lens Size [diameter]	Wavelength - Peak	Orientation	Current - DC Forward (If) (Max)	Type	Radiant Intensity (Ie) Min @ If	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Radiant Intensity (Ie) Min @ If [Min]
Kingbright APHD1608LCGCK	Standard	2 mA	100 °	Colorless	Clear	1.9 V	Surface Mount	1.6 mm	0.8 mm	1608	1608 Metric	0603	Round with Domed Top	5 mcd	570 nm	Green	0.7 mm
Kingbright APHD1608LSYCK	Standard	2 mA	100 °	Colorless	Clear	1.85 V	Surface Mount	1.6 mm	0.8 mm	1608	1608 Metric	0603	Round with Domed Top	20 mcd	590 nm	Yellow	0.7 mm	590 nm
Kingbright APHD1608LSURCK	Standard	2 mA	100 °	Colorless	Clear	1.75 V	Surface Mount	1.6 mm	0.8 mm	1608	1608 Metric	0603	Round with Domed Top	45 mcd	630 nm	Red	0.7 mm	645 nm
Kingbright APHD1608LQBC/D	Standard	2 mA	100 °	Colorless	Clear	2.65 V	Surface Mount	1.6 mm	0.8 mm	1608	1608 Metric	0603	Round with Domed Top	25 mcd	465 nm	Blue	0.7 mm	460 nm
Kingbright APHD1608F3C-P22			100 °				Surface Mount				1608 Metric	0603							Top View	50 mA	Infrared (IR)	0.8 mW/sr	85 °C	-40 C	940 nm

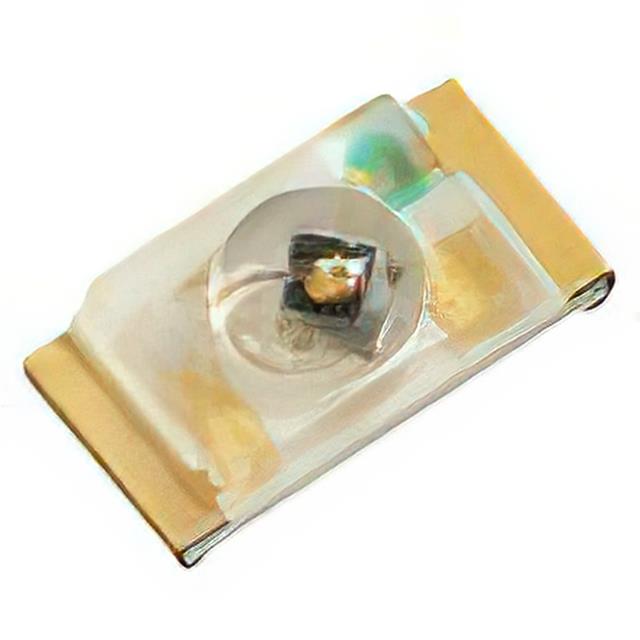

Kingbright APHD1608SF4CPRV-P22			100 °			1.3 V	Surface Mount				1608 Metric	0603							Top View	50 mA	Infrared (IR)		85 °C	-40 C	880 nm	0.35 mW/sr
Kingbright APHD1608LZGCK	Standard	2 mA	100 °	Colorless	Clear	2.65 V	Surface Mount	1.6 mm	0.8 mm	1608	1608 Metric	0603	Round with Domed Top	180 mcd	525 nm	Green	0.7 mm	515 nm
Kingbright APHD1608LVBC/D	Standard	2 mA	100 °	Colorless	Clear	2.65 V	Surface Mount	1.6 mm	0.8 mm	1608	1608 Metric	0603	Round with Domed Top	45 mcd	470 nm	Blue	0.7 mm	465 nm
