892-064 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 64POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Contact Material	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Contact Type	Features	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Finish	Mounting Type	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Pitch	Pitch
EDAC Inc. 892-064-555-204	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Solder	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Female	Cantilever	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Board Edge Straddle Mount	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 892-064-556-203	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Solder	Dual	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Female	Cantilever	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Board Edge Straddle Mount	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm

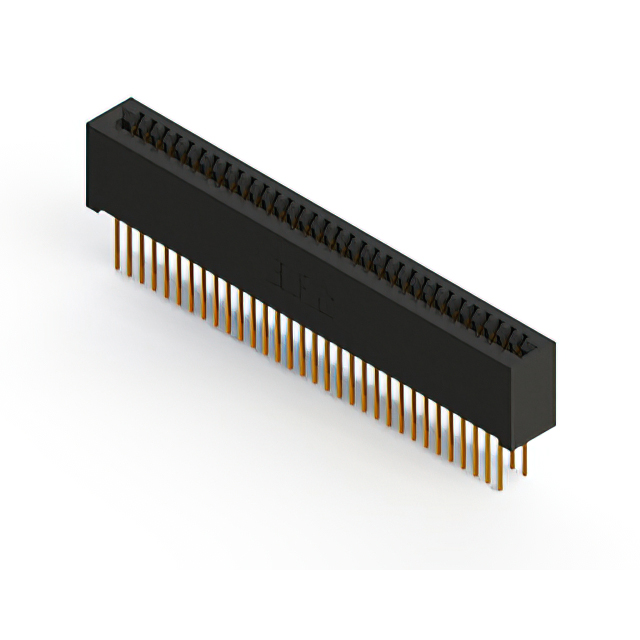

EDAC Inc. 892-064-542-201	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Wire Wrap	Dual				Female	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Through Hole	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm

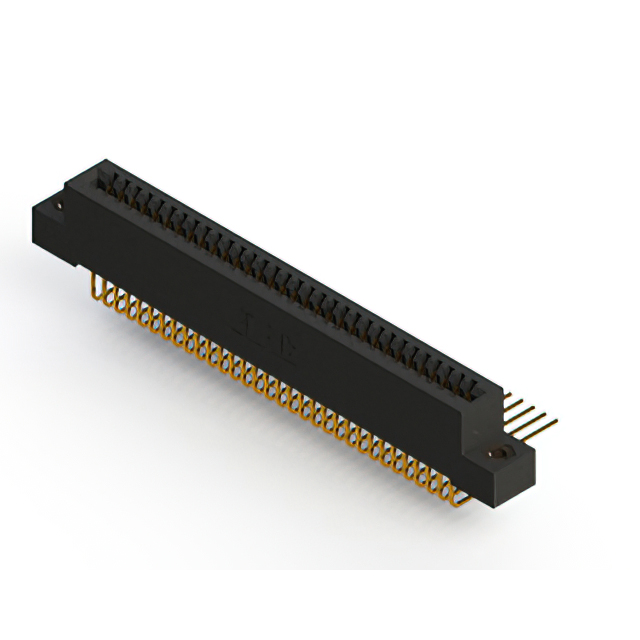

EDAC Inc. 892-064-558-207	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Solder	Dual	Flush Mount M3 Threaded Insert Top Opening			Female	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Right Angle Through Hole	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm

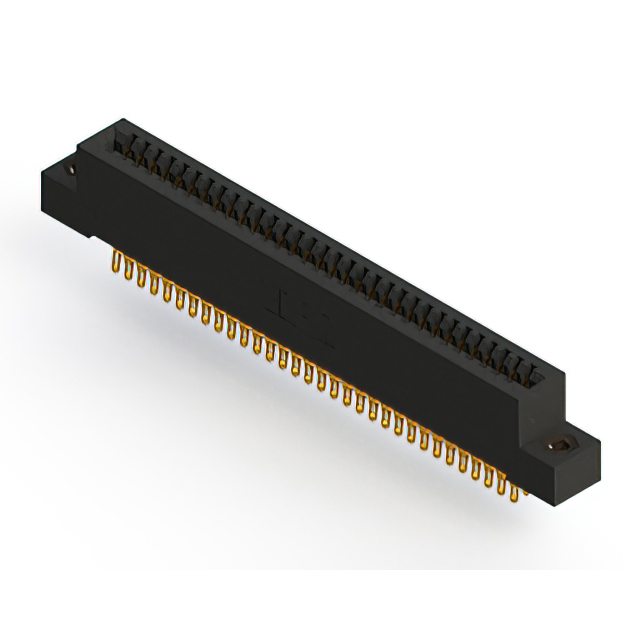

EDAC Inc. 892-064-555-207	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Solder	Dual	Flush Mount M3 Threaded Insert Top Opening			Female	Cantilever	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Board Edge Straddle Mount	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm

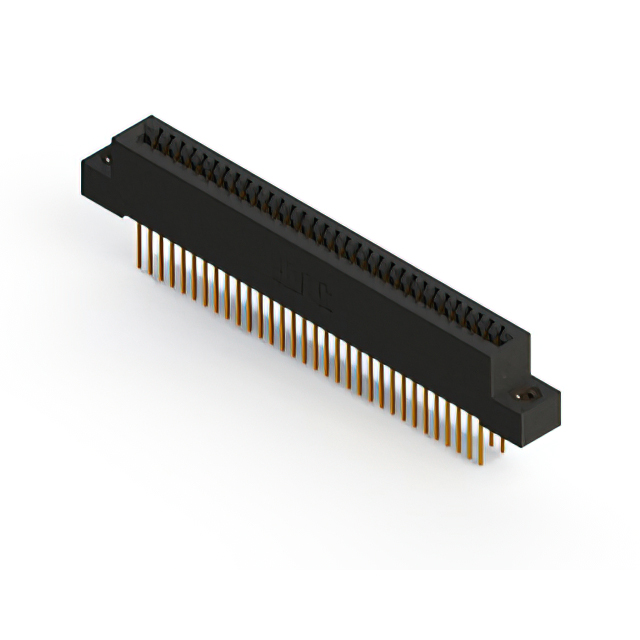

EDAC Inc. 892-064-541-208	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Wire Wrap	Dual	4-40 Flush Mount Threaded Insert Top Opening			Female	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Through Hole	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 892-064-559-204	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Solder	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Female	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Right Angle Through Hole	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm

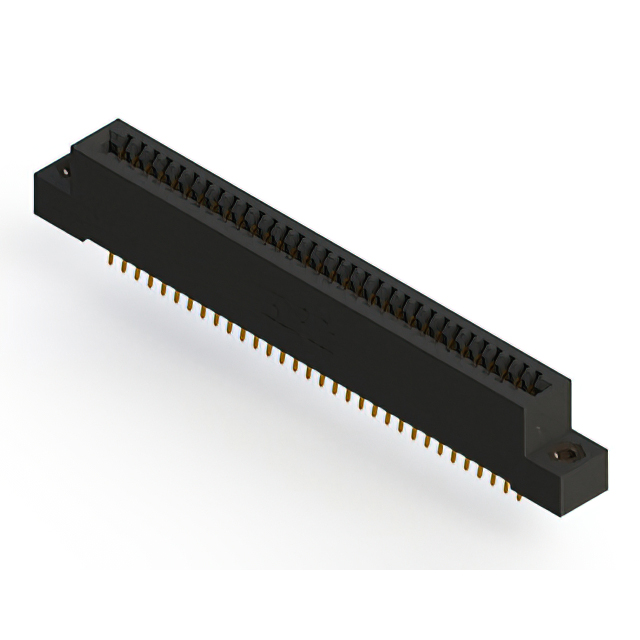

EDAC Inc. 892-064-556-207	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Solder	Dual	Flush Mount M3 Threaded Insert Top Opening			Female	Cantilever	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Board Edge Straddle Mount	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm

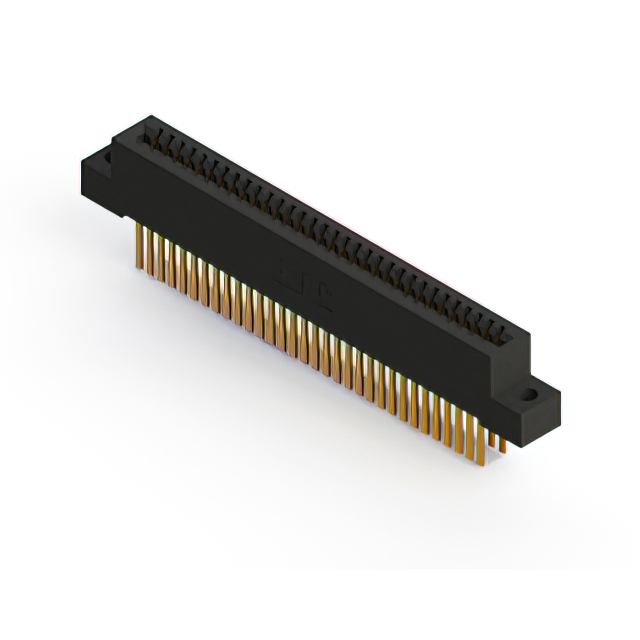

EDAC Inc. 892-064-544-204	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Wire Wrap	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Female	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Through Hole	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 892-064-540-212	2	Polyphenylene Sulfide (PPS)	Copper Alloy	2	0.25 Ám	10 Áin	Black	Wire Wrap	Dual	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Female	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	64	Gold	Through Hole	32	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm
