CGS 3503 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

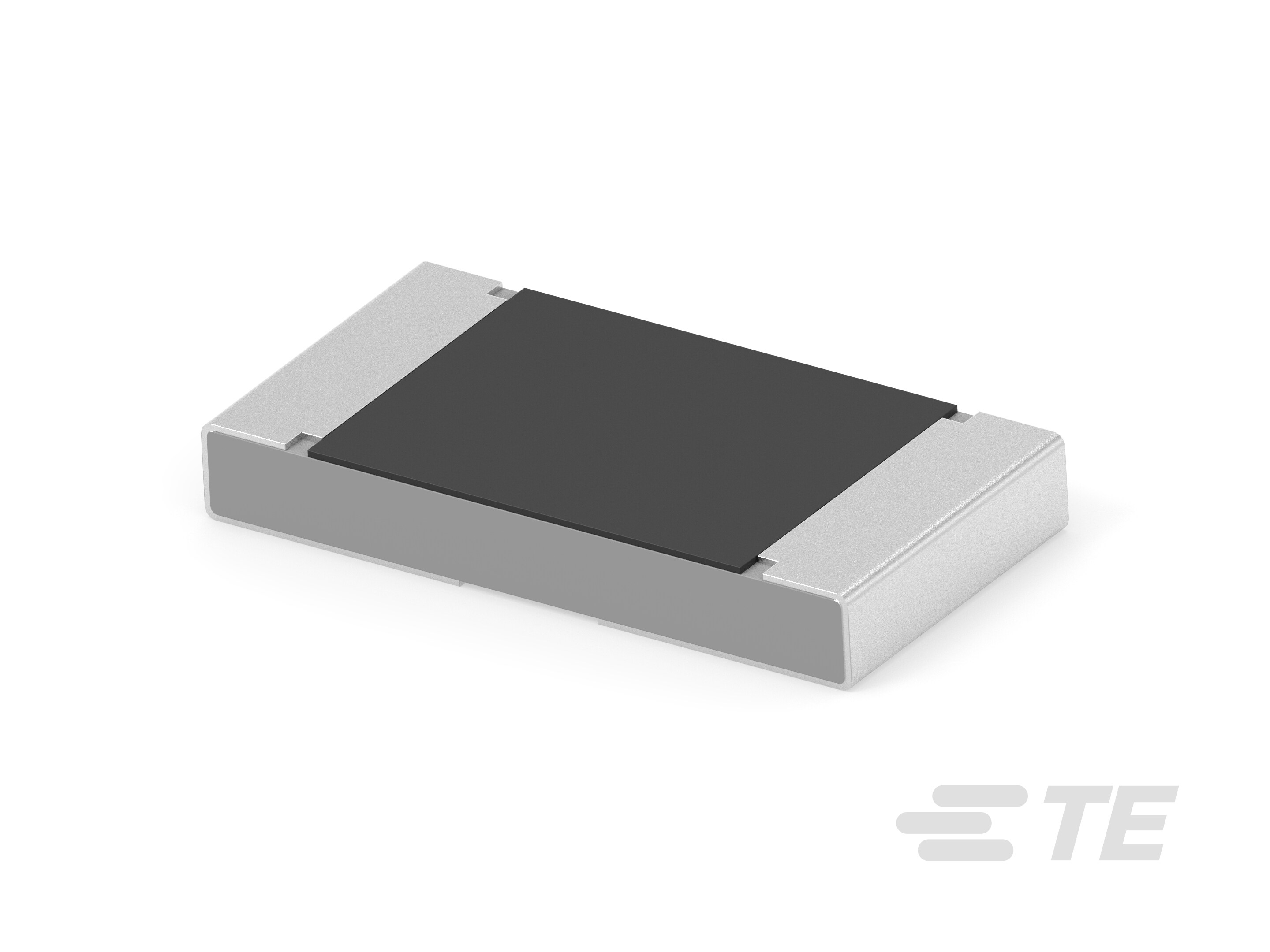

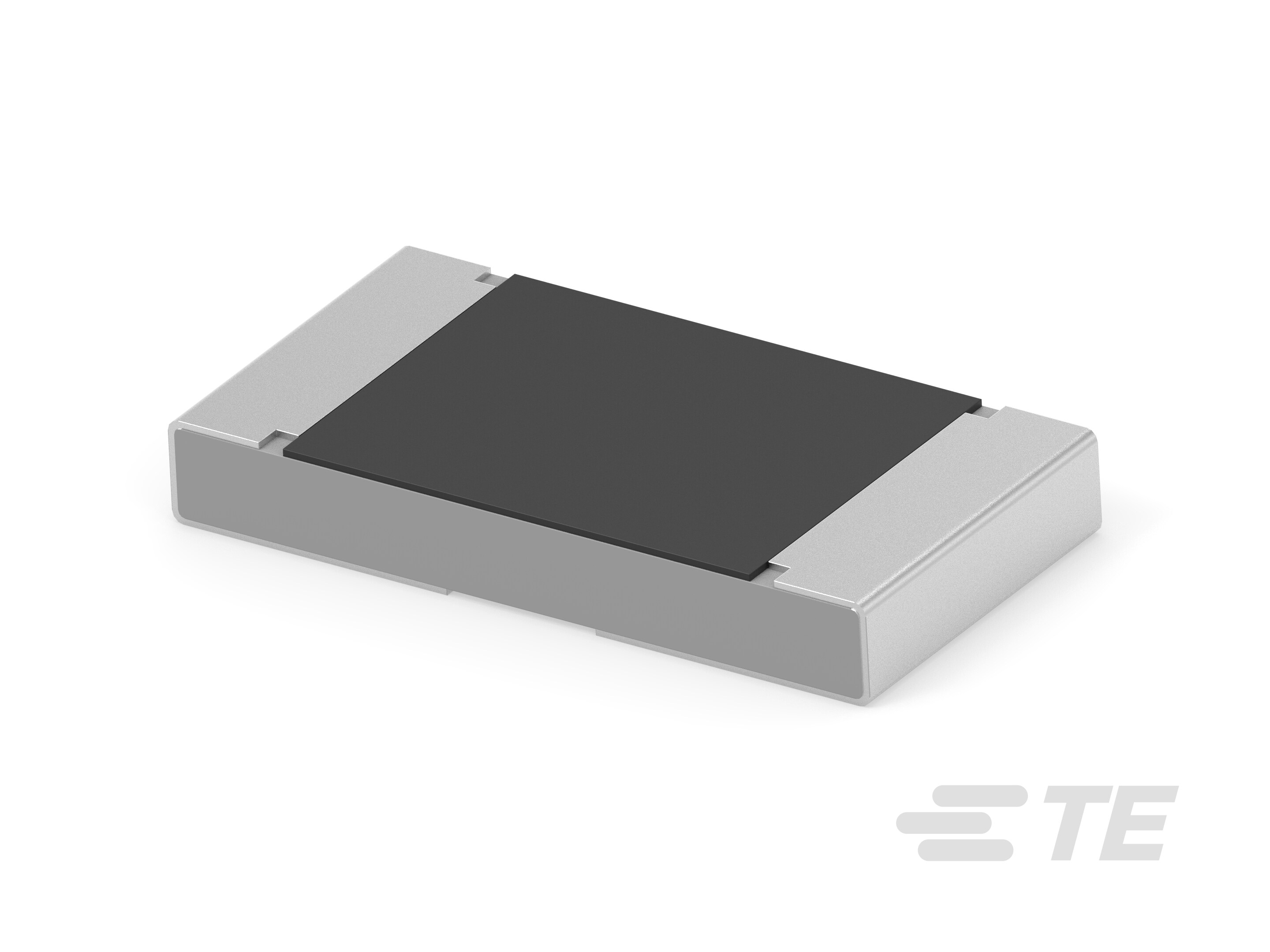

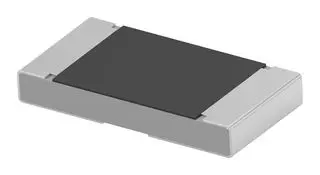

SMD CHIP RESISTOR, 7.68 KOHM, ± 1%, 2 W, 1206 [3216 METRIC], THIN FILM, HIGH POWER
| Part | Resistance | Temperature Coefficient | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Number of Terminations [custom] | Power (Watts) | Supplier Device Package | Package / Case | Tolerance | Composition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 7.68 kOhms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
TE Connectivity AMP Connectors | 866 Ohms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
TE Connectivity AMP Connectors | 14300 Ohms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
 TE Connectivity AMP Connectors | 1000 Ohms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
 TE Connectivity AMP Connectors | 6.34 kOhms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
 TE Connectivity AMP Connectors | 511 Ohms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
 TE Connectivity AMP Connectors | 1.65 kOhms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
TE Connectivity AMP Connectors | 825 Ohms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
TE Connectivity AMP Connectors | 210 Ohms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
 TE Connectivity AMP Connectors | 4.99 kOhms | 50 ppm/░C | 155 C | -55 C | 0.58 mm | 0.023 in | 2 | 2 W | 1206 | 1206 (3216 Metric) | 1 % | Thin Film |
