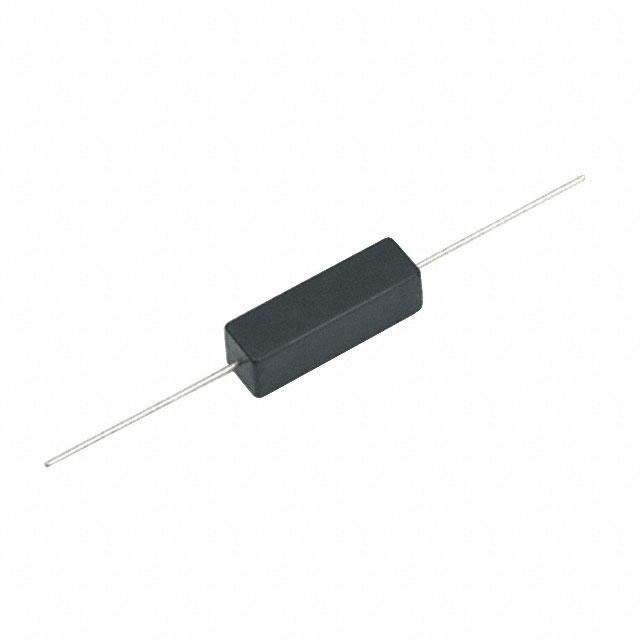

OHD Series

Manufacturer: KEMET

Catalog

THERMOSTATS 125C 6W 110V MAKE AXIAL THERMAL GUARD

Part	Mounting Type	Current Rating - AC	Switching Temperature	Switching Temperature	Termination Style	Switching Cycles	Tolerance	Tolerance	Current Rating - DC	Package / Case	Circuit	Reset Temperature	Reset Temperature

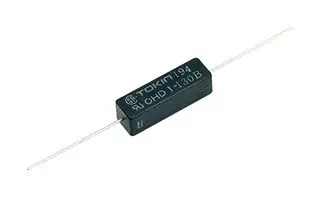

KEMET OHD1-125M	Through Hole	0.3 A	125 °C	125 °C	PC Pins	100K	5 °C	9 °F	0.3 A	Axial	SPST-NO

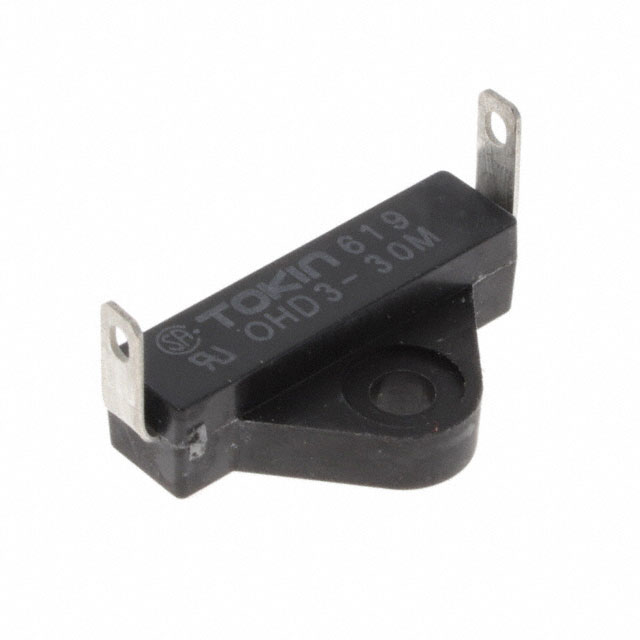

KEMET OHD3-110M	Chassis Mount	0.3 A	110 °C	110 °C	Solder Lug	100K	5 °C	9 °F	0.3 A	Module	SPST-NO	212 °F	100 °C
KEMET OHD1-90B	Through Hole	0.3 A	90 °C	90 °C	PC Pins	100K	5 °C	9 °F	0.3 A	Axial	SPST-NC
KEMET OHD1-90M	Through Hole	0.3 A	90 °C	90 °C	PC Pins	100K	5 °C	9 °F	0.3 A	Axial	SPST-NO

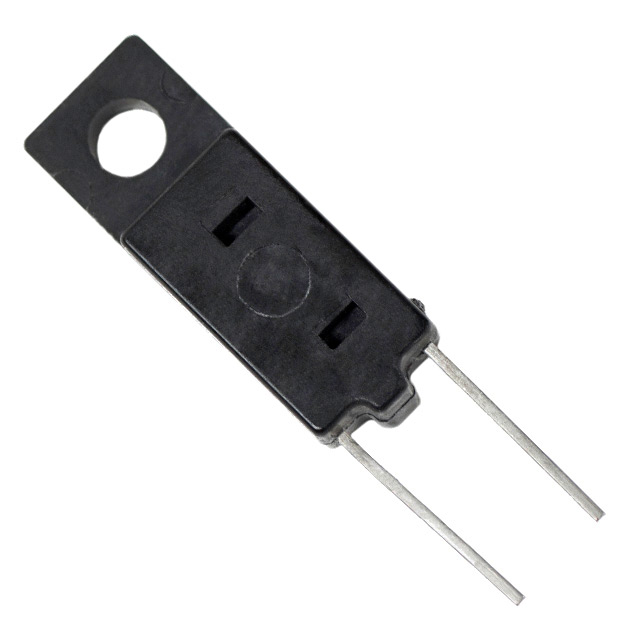

KEMET OHD5R-120B	Through Hole		248 °F		PC Pins	100K	5 °C	9 °F	0.1 A 30 V	Module	SPST-NC	230 °F	110 °C
KEMET OHD3-100M	Chassis Mount	0.3 A	100 °C	100 °C	Solder Lug	100K	5 °C	9 °F	0.3 A	Module	SPST-NO	194 °F	90 °C
KEMET OHD5R-90B	Through Hole		90 °C	90 °C	PC Pins	100K	5 °C	9 °F	0.1 A 30 V	Module	SPST-NC	176 °F	80 °C
KEMET OHD3-90B	Chassis Mount	0.3 A	90 °C	90 °C	Solder Lug	100K	5 °C	9 °F	0.3 A	Module	SPST-NC	176 °F	80 °C
KEMET OHD3-30B	Chassis Mount	0.3 A	30 °C	30 °C	Solder Lug	100K	5 °C	9 °F	0.3 A	Module	SPST-NC	20 °C
KEMET OHD3-80B	Chassis Mount	0.3 A	176 °F	80 °C	Solder Lug	100K	5 °C	9 °F	0.3 A	Module	SPST-NC	158 °F	70 °C
