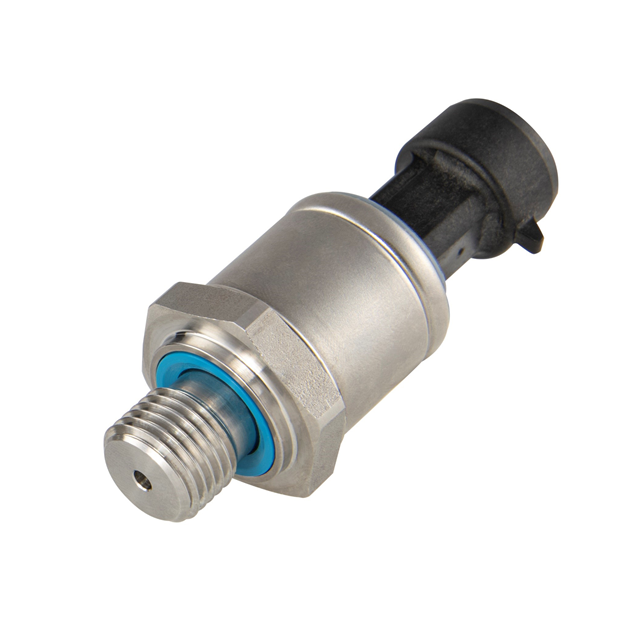

PTE7100 Series

Catalog

INDUSTRIAL PRESSURE SENSORS INDUSTRIAL HERMETIC PRESSURE SENSOR 400 BAR, 4-20MA, 1/4-18NPT, PACKARD

Part	Operating Pressure	Operating Pressure	Package / Case	Maximum Pressure	Maximum Pressure	Port Style	Accuracy	Pressure Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Output [Min]	Output [Max]	Termination Style	Port Size	Port Size	Port Size
Sensata-Crydom PTE7100-41DC-0A400BN	5801.51 PSI	40000 kPa	Cylinder Threaded	11603 PSI	80000 kPa	Threaded	1.5 %	Gauge	32 VDC	8 V	-40 C	100 °C	Analog Current	4 mA	20 mA	Connector	Male NPT	0.25 "	0.25 in

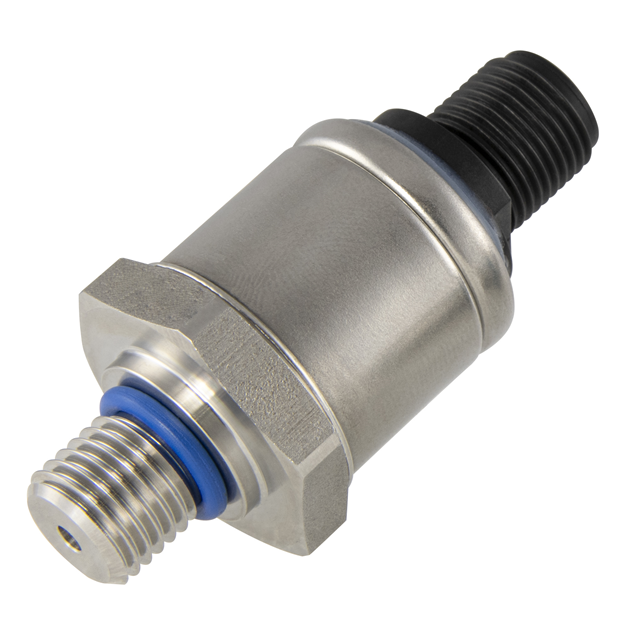

Sensata-Crydom PTE7100-22DB-0B050BN	725.19 PSI	5000 kPa	Cylinder Threaded	1450.38 PSI	10000 kPa	Threaded	1.5 %	Gauge	5.25 V	4.75 V	-40 C	100 °C	Analog Voltage	0.5 V	4.5 V	Connector	Male NPT	0.25 "	0.25 in
Sensata-Crydom PTE7100-23DB-0E050BN	725.19 PSI	5000 kPa	Cylinder Threaded	1450.38 PSI	10000 kPa	Threaded	1.5 %	Gauge	32 VDC	8 V	-40 C	100 °C	Analog Voltage	1 V	5 V	Connector	Male NPT	0.25 "	0.25 in
Sensata-Crydom PTE7100-21DC-0A100BN	1450.38 PSI	10000 kPa	Cylinder Threaded			Threaded	1.5 %	Gauge	32 VDC	8 V	-40 C	100 °C	Analog Current	4 mA	20 mA	Connector	Male NPT	0.25 "	0.25 in
Sensata-Crydom PTE7100-31CC-2A200BN	2900.75 PSI	20000 kPa	Cylinder Threaded	5801.51 PSI	40000 kPa	Threaded	1.5 %	Gauge	32 VDC	8 V	-40 C	100 °C	Analog Current	4 mA	20 mA	Connector	Male	0.4375 in 11.11 mm

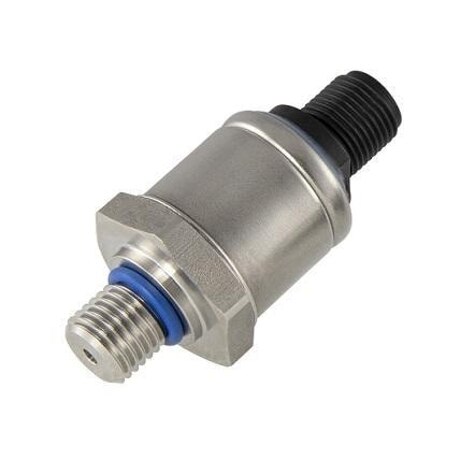

Sensata-Crydom PTE7100-23DB-0E100BN	1450.38 PSI	10000 kPa	Cylinder Threaded			Threaded	1.5 %	Gauge	32 VDC	8 V	-40 C	100 °C	Analog Voltage	1 V	5 V	Connector	Male NPT	0.25 "	0.25 in
Sensata-Crydom PTE7100-23DC-0E050BN	725.19 PSI	5000 kPa	Cylinder Threaded	1450.38 PSI	10000 kPa	Threaded	1.5 %	Gauge	32 VDC	8 V	-40 C	100 °C	Analog Voltage	1 V	5 V	Connector	Male NPT	0.25 "	0.25 in
Sensata-Crydom PTE7100-41CC-2A400BN	5801.51 PSI	40000 kPa	Cylinder Threaded	11603 PSI	80000 kPa	Threaded	1.5 %	Gauge	32 VDC	8 V	-40 C	100 °C	Analog Current	4 mA	20 mA	Connector	Male	0.4375 in 11.11 mm
Sensata-Crydom PTE7100-43DC-0E400BN	5801.51 PSI	40000 kPa	Cylinder Threaded	11603 PSI	80000 kPa	Threaded	1.5 %	Gauge	32 VDC	8 V	-40 C	100 °C	Analog Voltage	1 V	5 V	Connector	Male NPT	0.25 "	0.25 in
