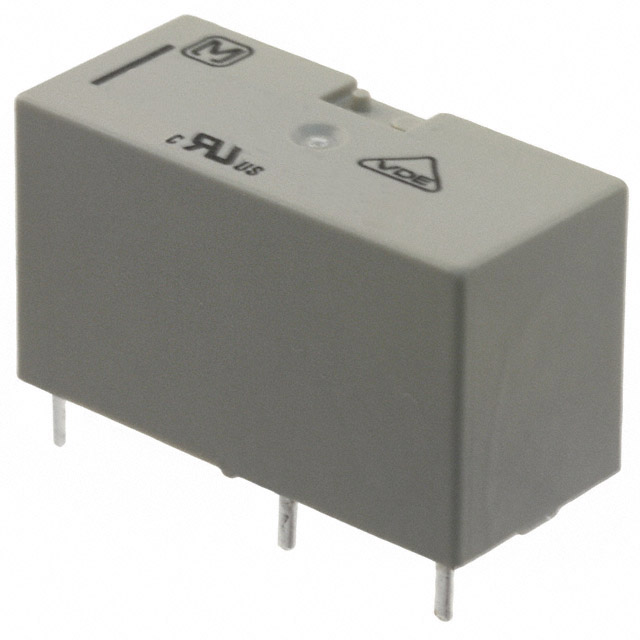

ADJ110 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 48V
| Part | Coil Resistance | Must Operate Voltage | Contact Form | Coil Current | Release Time | Contact Material | Operate Time | Seal Rating | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Contact Rating (Current) | Load - Max Switching [Max] | Mounting Type | Relay Type | Termination Style | Coil Type | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 15.36 kOhms | 33.6 VDC | SPDT (1 Form C) | 3.1 mA | 20 ms | Silver Tin Oxide (AgSnO) | 20 ms | Sealed - Flux Protection | CQC cURus VDE | 70 °C | -40 C | 48 VDC | 16 A | 4000 VA | Through Hole | General Purpose | PC Pin | Latching Single Coil | 250 VAC |
 Panasonic Electronic Components | 167 Ohms | 3.5 VDC | SPDT (1 Form C) | 0.03 A | 20 ms | Silver Tin Oxide (AgSnO) | 20 ms | Sealed - Flux Protection | CQC cURus VDE | 70 °C | -40 C | 5 VDC | 16 A | 4000 VA | Through Hole | General Purpose | PC Pin | Latching Single Coil | 250 VAC |
Panasonic Electronic Components | 960 Ohms | 8.4 VDC | SPDT (1 Form C) | 20 ms | Silver Tin Oxide (AgSnO) | 20 ms | Sealed - Flux Protection | CQC cURus VDE | 70 °C | -40 C | 12 VDC | 16 A | 4000 VA | Through Hole | General Purpose | PC Pin | Latching Single Coil | 250 VAC |
