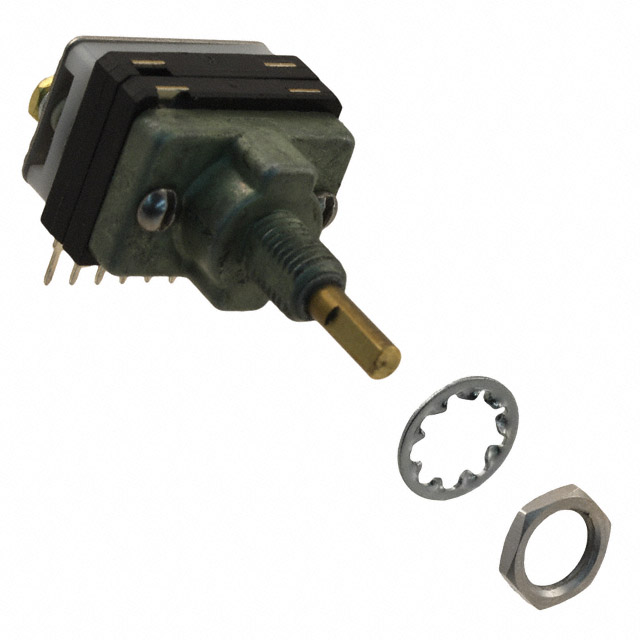

C2P0108 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-8POS 100MA 125V
| Part | Panel Cutout Dimensions [diameter] | Contact Material | Circuit per Deck | Index Stops | Actuator Length [x] | Depth Behind Panel [z] | Voltage Rating - AC | Termination Style | Contact Timing | Number of Decks [custom] | Angle of Throw | Number of Poles per Deck | Actuator Type | Voltage Rating - DC | Current Rating (Amps) | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 6.76 mm | Brass | SP8T | Adjustable | 9.52 mm | 22.38 mm | 125 V | PC Pin | Non-Shorting (BBM) | 1 | 30 ° | 1 | Flatted (3.17mm Dia) | 28 V | 100 mA 250 mA | Panel Mount Right Angle Through Hole | Silver |
 Electroswitch | 6.76 mm | Brass | SP8T | Adjustable | 9.52 mm | 22.38 mm | 125 V | PC Pin | Shorting (MBB) | 1 | 30 ° | 1 | Flatted (3.17mm Dia) | 28 V | 100 mA 250 mA | Panel Mount Right Angle Through Hole | Silver |
