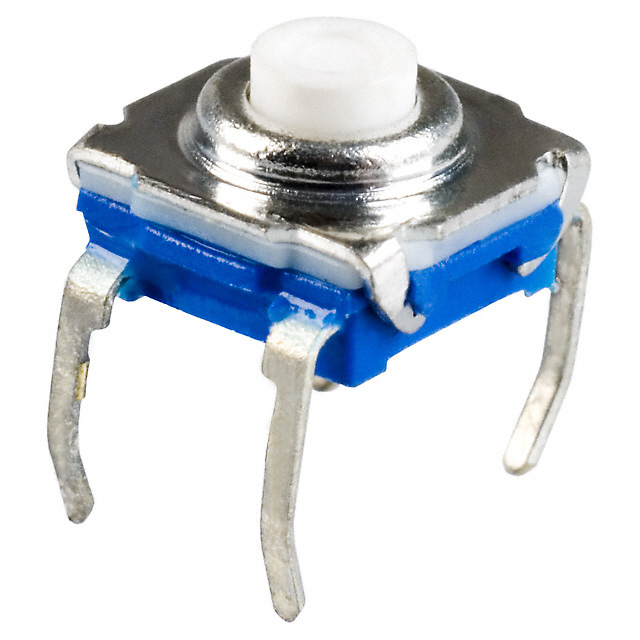

GSE4.70 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Mechanical Life | Switch Function | Contact Rating @ Voltage | Actuator Height off PCB, Vertical [z] | Outline [y] | Outline [x] | Features | Mounting Type | Circuit | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Illumination | Termination Style | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Liquid Crystal Polymer (LCP) | 0.3 mm | 400000 Cycles | Off-Mom | 0.05 A 50 VDC | 4.7 mm | 7.2 mm | 7.2 mm | Grounding Pin | Through Hole | SPST-NO | 130 gf | 85 °C | -40 C | Standard | Non-Illuminated | PC Pin | Top Actuated |
