087832 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD 26POS 2MM

...

Part	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height [z]	Contact Type	Insulation Material	Number of Positions Loaded	Fastening Type	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Mounting Type	Connector Type	Number of Rows	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Style	Features	Contact Finish - Mating	Contact Finish - Post	Applications	Insulation Color	Insulation Height	Insulation Height
Molex 0878326223	0.141 in	3.6 mm	Square	74.8 Áin	1.9 Ám	105 ░C	-55 °C	6.4 mm	0.252 in	Male Pin	Glass Filled Nylon Polyamide (PA)	All	Latch Holder	Shrouded - 4 Wall	0.079 in	2 mm	26	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	30 Áin	0.76 Ám	Solder	Board to Board Cable	Board Guide Keying Slot Pick and Place	Gold	Tin	Automotive General Purpose Telecommunications	Black
Molex 0878325122	0.141 in	3.6 mm	Square	74.8 Áin	1.9 Ám	105 ░C	-55 °C	6.4 mm	0.252 in	Male Pin	Glass Filled Nylon Polyamide (PA)	All	Push-Pull	Shrouded - 4 Wall	0.079 in	2 mm	4	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	15 µin	0.38 µm	Solder	Board to Board Cable	Pick and Place	Gold	Tin	Automotive General Purpose Telecommunications	Black

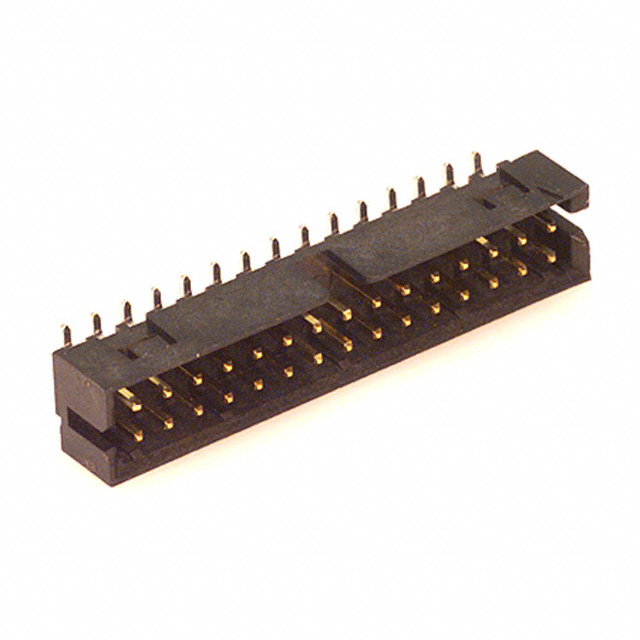

Molex 0878325030	0.142 in	3.6 mm	Square	74.8 Áin	1.9 Ám					Male Pin	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Latch Holder	Shrouded - 2 Wall	0.079 in	2 mm	50	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	15 µin	0.38 µm	Solder	Board to Cable/Wire		Gold	Tin		Black	6.8 mm	0.268 in

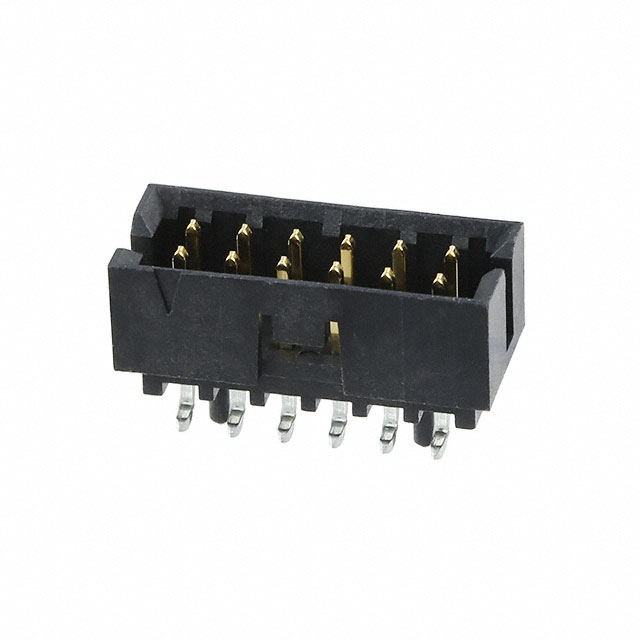

Molex 0878321221	0.141 in	3.6 mm	Square	74.8 Áin	1.9 Ám	105 ░C	-55 °C	6.4 mm	0.252 in	Male Pin	Glass Filled Nylon Polyamide (PA)	All	Push-Pull	Shrouded - 4 Wall	0.079 in	2 mm	12	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	30 Áin	0.76 Ám	Solder	Board to Board Cable	Board Guide Keying Slot	Gold	Tin	Automotive General Purpose Telecommunications	Black
Molex 0878321208	0.141 in	3.6 mm	Square	74.8 Áin	1.9 Ám	105 ░C	-55 °C	6.4 mm	0.252 in	Male Pin	Glass Filled Nylon Polyamide (PA)	All	Latch Holder	Shrouded - 4 Wall	0.079 in	2 mm	12	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	15 µin	0.38 µm	Solder	Board to Board Cable	Board Guide Pick and Place	Gold	Tin	Automotive General Purpose Telecommunications	Black

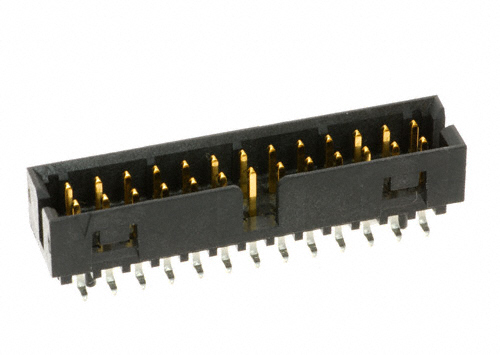

Molex 0878322620	0.141 in	3.6 mm	Square	74.8 Áin	1.9 Ám	105 ░C	-55 °C	6.4 mm	0.252 in	Male Pin	Glass Filled Nylon Polyamide (PA)	All	Latch Holder	Shrouded - 4 Wall	0.079 in	2 mm	26	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	15 µin	0.38 µm	Solder	Board to Board Cable	Board Guide Keying Slot	Gold	Tin	Automotive General Purpose Telecommunications	Black
Molex 0878326422	0.141 in	3.6 mm	Square	74.8 Áin	1.9 Ám	105 ░C	-55 °C	6.4 mm	0.252 in	Male Pin	Glass Filled Nylon Polyamide (PA)	All	Latch Holder	Shrouded - 4 Wall	0.079 in	2 mm	30	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	15 µin	0.38 µm	Solder	Board to Board Cable	Board Guide Keying Slot Pick and Place	Gold	Tin	Automotive General Purpose Telecommunications	Black
Molex 0878320406	0.141 in	3.6 mm	Square	74.8 Áin	1.9 Ám	105 ░C	-55 °C	6.4 mm	0.252 in	Male Pin	Glass Filled Nylon Polyamide (PA)	All	Latch Holder	Shrouded - 4 Wall	0.079 in	2 mm	4	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	15 µin	0.38 µm	Solder	Board to Board Cable	Board Guide Pick and Place	Gold	Tin	Automotive General Purpose Telecommunications	Black

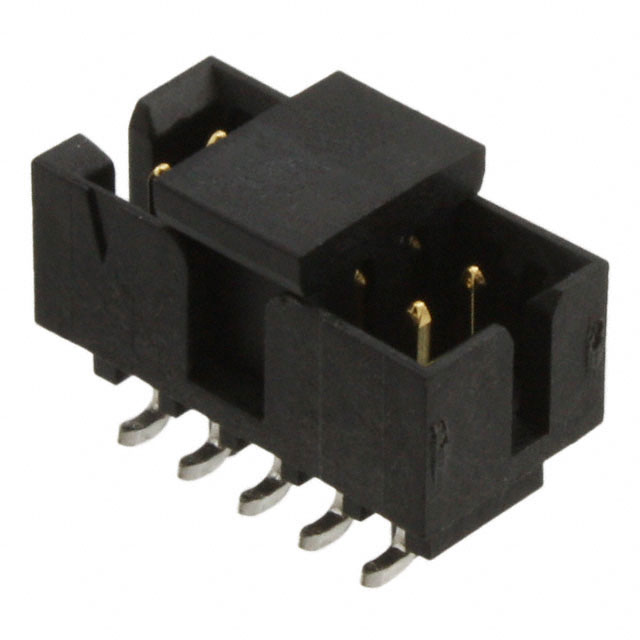

Molex 0878321042	0.141 in	3.6 mm	Square	74.8 Áin	1.9 Ám	105 ░C	-55 °C	6.4 mm	0.252 in	Male Pin	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Latch Holder	Shrouded - 4 Wall	0.079 in	2 mm	10	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	30 Áin	0.76 Ám	Solder	Board to Board Cable	Board Guide Pick and Place	Gold	Tin	Automotive General Purpose Telecommunications	Black

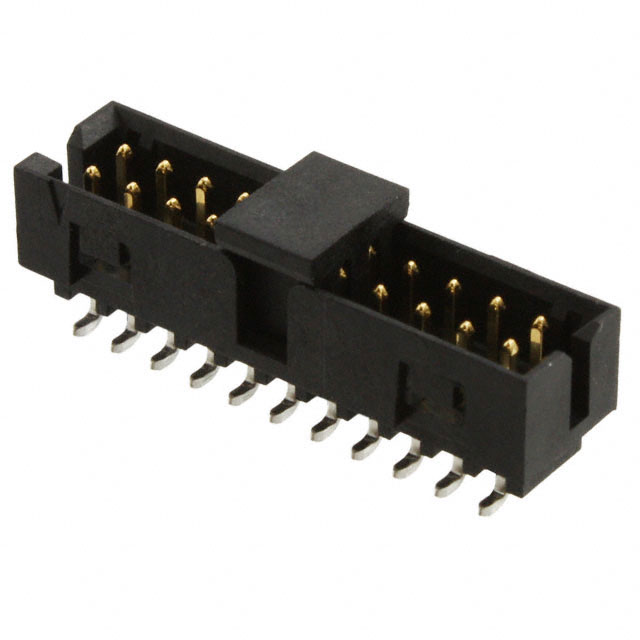

Molex 0878326023	0.141 in	3.6 mm	Square	74.8 Áin	1.9 Ám	105 ░C	-55 °C	6.4 mm	0.252 in	Male Pin	Glass Filled Nylon Polyamide (PA)	All	Latch Holder	Shrouded - 4 Wall	0.079 in	2 mm	22 positions	Surface Mount	Header	2	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	30 Áin	0.76 Ám	Solder	Board to Board Cable	Board Guide Keying Slot Pick and Place	Gold	Tin	Automotive General Purpose Telecommunications	Black
