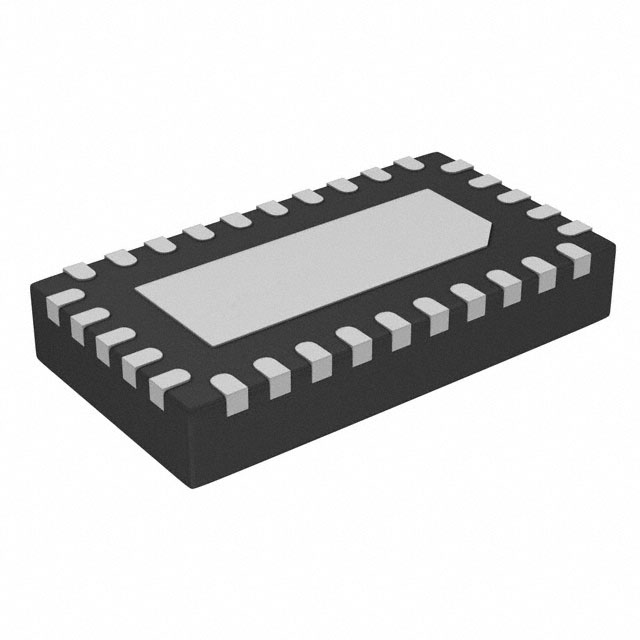

10-Gbps USB 3.1 Type-C 2:1 mux with DRP Controller
Key Features
• USB Type-C Port Controller with Integrated 2:1 SuperSpeed MuxCompatible to USB Type-C™ SpecificationsSupports USB 3.1 G1 and G2 up to 10 GbpsSupports up to 15 W of Power Delivery with 3-A Current Advertisement and DetectionMode ConfigurationHost Only – DFP/SourceDevice Only – UFP/SinkDual Role Port - DRPChannel Configuration (CC)Attach of USB Port DetectionCable Orientation DetectionRole DetectionType-C Current Mode (Default, Mid, High)V(BUS)Detection and VCONN Support for Active CablesAudio and Debug Accessory SupportSupports for Try.SRC and Try.SNK DRP ModesConfiguration Control through GPIO and I2CLow Active and Standby Current ConsumptionsIndustrial Temperature Range of –40 to 85°CUSB Type-C Port Controller with Integrated 2:1 SuperSpeed MuxCompatible to USB Type-C™ SpecificationsSupports USB 3.1 G1 and G2 up to 10 GbpsSupports up to 15 W of Power Delivery with 3-A Current Advertisement and DetectionMode ConfigurationHost Only – DFP/SourceDevice Only – UFP/SinkDual Role Port - DRPChannel Configuration (CC)Attach of USB Port DetectionCable Orientation DetectionRole DetectionType-C Current Mode (Default, Mid, High)V(BUS)Detection and VCONN Support for Active CablesAudio and Debug Accessory SupportSupports for Try.SRC and Try.SNK DRP ModesConfiguration Control through GPIO and I2CLow Active and Standby Current ConsumptionsIndustrial Temperature Range of –40 to 85°C
Description
AI
HD3SS3220 is a USB SuperSpeed (SS) 2:1 mux with DRP port controller. The device provides Channel Configuration (CC) logic and 5V VCONN sourcing for ecosystems implementing USB Type-C. The HD3SS3220 can be configured as a Downstream Facing Port (DFP), Upstream Facing Port (UFP) or a Dual Role Port (DRP) making it ideal for any application.
The HD3SS3220, in DRP mode, alternates presenting itself as a DFP or UFP according to the Type-C specifications. The CC logic block monitors the CC1 and CC2 pins for pull-up or pull-down resistances to determine when a USB port has been attached and its port role. Once a USB port has been attached, the CC logic also determines the orientation of the cable and configures the USB SS mux accordingly. Finally, CC logic advertises or detects Type-C current mode – Default, Mid, or High in DFP and UFP modes respectively.
Excellent dynamic characteristics of the integrated mux allow switching with minimum attenuation to the SS signal eye diagram and very little added jitter. The device’s switch paths deploy adaptive common mode voltage tracking resulting identical channel despite different common mode voltage for RX and TX channels.
HD3SS3220 is a USB SuperSpeed (SS) 2:1 mux with DRP port controller. The device provides Channel Configuration (CC) logic and 5V VCONN sourcing for ecosystems implementing USB Type-C. The HD3SS3220 can be configured as a Downstream Facing Port (DFP), Upstream Facing Port (UFP) or a Dual Role Port (DRP) making it ideal for any application.
The HD3SS3220, in DRP mode, alternates presenting itself as a DFP or UFP according to the Type-C specifications. The CC logic block monitors the CC1 and CC2 pins for pull-up or pull-down resistances to determine when a USB port has been attached and its port role. Once a USB port has been attached, the CC logic also determines the orientation of the cable and configures the USB SS mux accordingly. Finally, CC logic advertises or detects Type-C current mode – Default, Mid, or High in DFP and UFP modes respectively.
Excellent dynamic characteristics of the integrated mux allow switching with minimum attenuation to the SS signal eye diagram and very little added jitter. The device’s switch paths deploy adaptive common mode voltage tracking resulting identical channel despite different common mode voltage for RX and TX channels.
