M12 D-CODED Series
Manufacturer: HARTING
Beta
⌘K

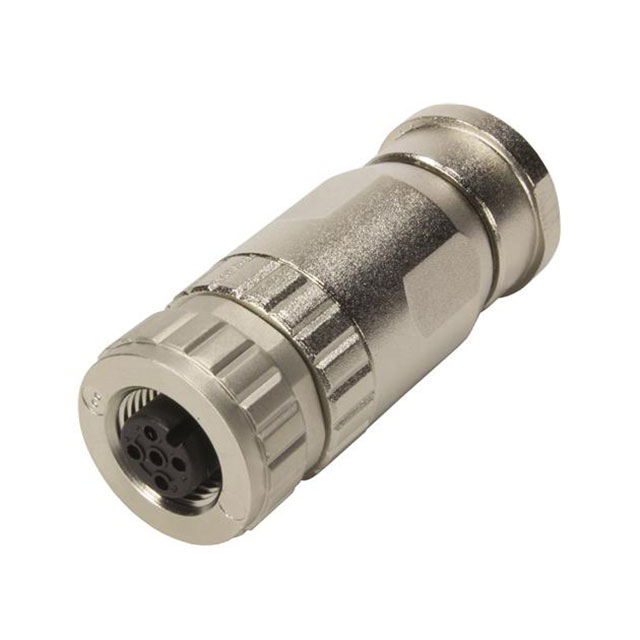

SENSOR CONNECTOR, M12, RECEPTACLE, 4 CONTACTS, SCREW SOCKET, STRAIGHT CABLE MOUNT
| Part | Insert Material [custom] | Insert Material [custom] | Orientation | Number of Positions | Color | Voltage Rating | Current Rating (Amps) | Contact Finish - Mating | Termination | Fastening Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Ingress Protection | Connector Type | Shell Material | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Primary Material | Shell Size - Insert | Contact Material | Shielding | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Nylon | Polyamide (PA) | D | 4 | Silver | 250 V | 4 A | Gold | Screw | Threaded | Free Hanging (In-Line) | 85 °C | -30 ░C | Backshell Coupling Nut | IP65 IP67 | Receptacle Female Sockets | Zinc Die Cast | 8 mm | 4 mm | 0.315 in | 0.157 in | Metal | M12-4 | Brass | Shielded | Zinc Die Cast |
