TBS1T Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Electrical Life	Actuator Length [x]	Mounting Type	Voltage Rating - DC	Bushing Thread	Voltage Rating - AC	Features	Illumination	Circuit	Switch Function	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Current Rating (Amps)
TE Connectivity AMP Connectors TBS1TBA1MZRES	30000 Cycles	6.1 mm	Right Angle Surface Mount	20 V	Unthreaded	20 V	Process Sealed	Non-Illuminated	SPDT	On-On	SMD (SMT) Tab	85 °C	-30 ░C	Standard Round	0.4 VA
TE Connectivity AMP Connectors TBS1T2A1MZRES	30000 Cycles	6.1 mm	Right Angle Surface Mount	20 V	Unthreaded	20 V	Process Sealed	Non-Illuminated	SPDT	On-On	SMD (SMT) Tab	85 °C	-30 ░C	Standard Round	0.4 VA

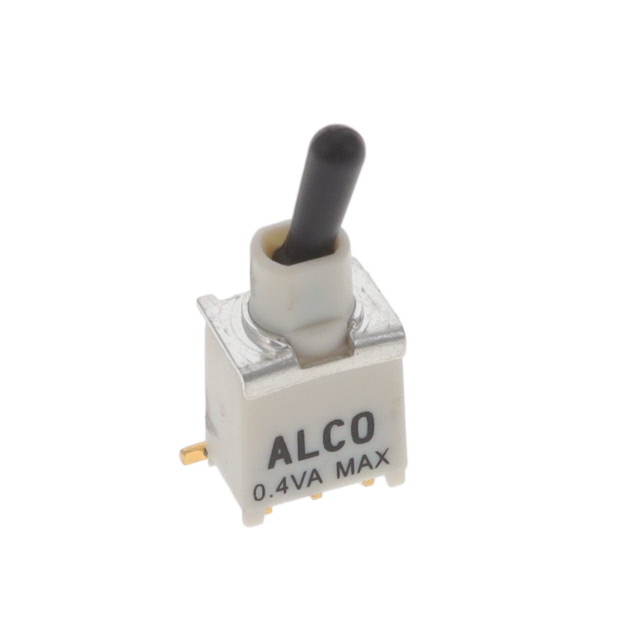

TE Connectivity AMP Connectors TBS1TBA1MTRES	30000 Cycles	6.1 mm	Right Angle Surface Mount	20 V	Unthreaded	20 V	Process Sealed	Non-Illuminated	SPDT	On-On	SMD (SMT) Tab	85 °C	-30 ░C	Standard Round	0.4 VA

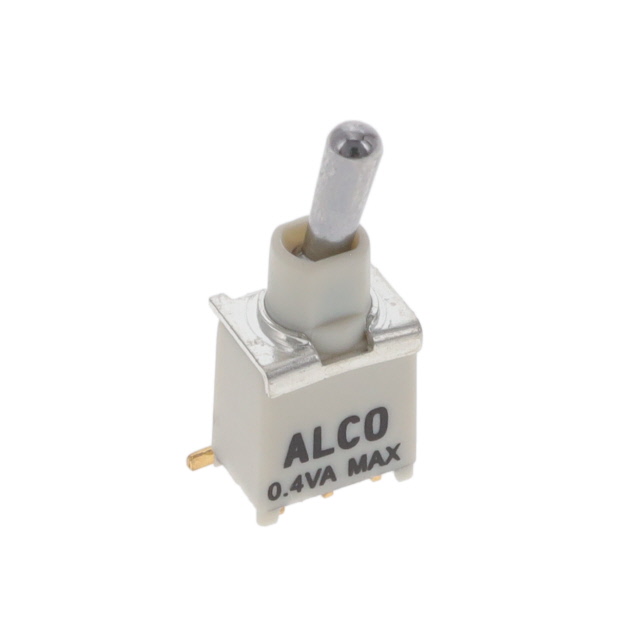

TE Connectivity AMP Connectors TBS1T2A1MTRES	30000 Cycles	6.1 mm	Right Angle Surface Mount	20 V	Unthreaded	20 V	Process Sealed	Non-Illuminated	SPDT	On-On	SMD (SMT) Tab	85 °C	-30 ░C	Standard Round	0.4 VA
