767054 Series

Catalog

CONN HIGH SPEED FINE PITCH CONNECTOR RCP 3POWER/114SIGNAL POS 2.54MM/0.64MM SOLDER ST SMD/THRU-HOLE TUBE

Part	Number of Rows [custom]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Height Above Board [z]	Height Above Board [z]	Features	Mounting Type	Contact Finish	Mated Stacking Heights	Pitch	Pitch

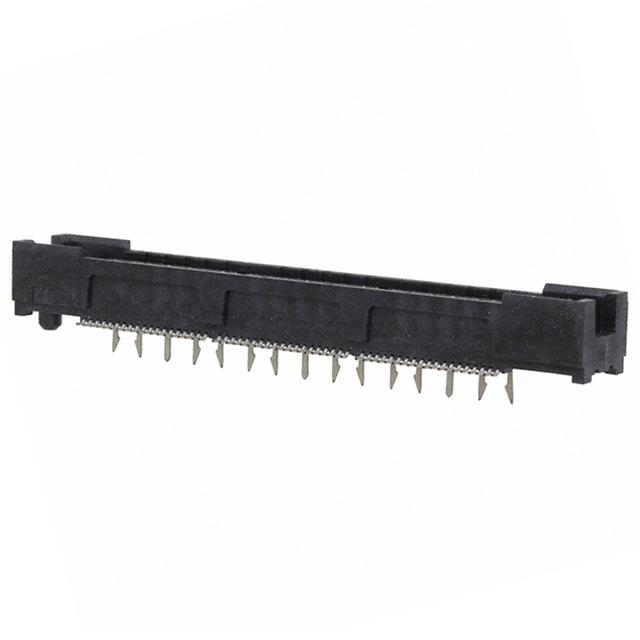

TE Connectivity AMP Connectors 767054-3	2	114	5 µin	0.127 µm	Receptacle Center Strip Contacts	0.236 in	6 mm	Board Guide Ground Bus (Plane)	Surface Mount	Palladium-Nickel	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.64 mm	0.025 in
TE Connectivity AMP Connectors 767054-2	2	76	5 µin	0.127 µm	Receptacle Center Strip Contacts	0.236 in	6 mm	Board Guide Ground Bus (Plane)	Surface Mount	Palladium-Nickel	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.64 mm	0.025 in

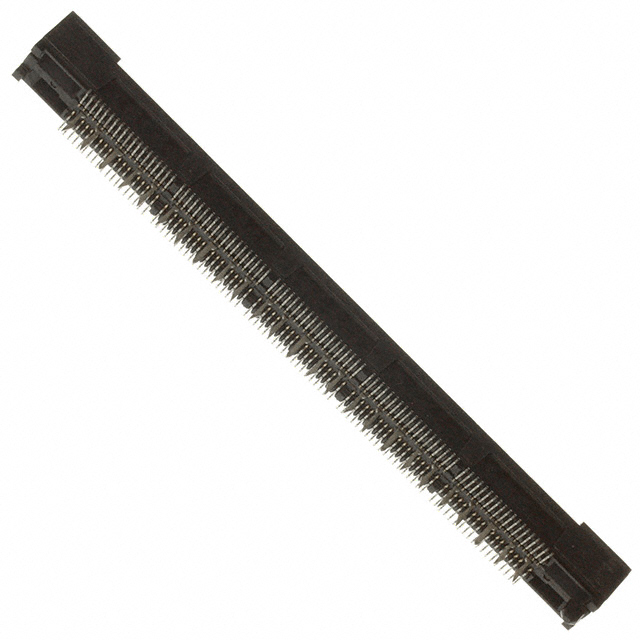

TE Connectivity AMP Connectors 767054-5	2	190	5 µin	0.127 µm	Receptacle Center Strip Contacts	0.236 in	6 mm	Board Guide Ground Bus (Plane)	Surface Mount	Palladium-Nickel	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.64 mm	0.025 in
