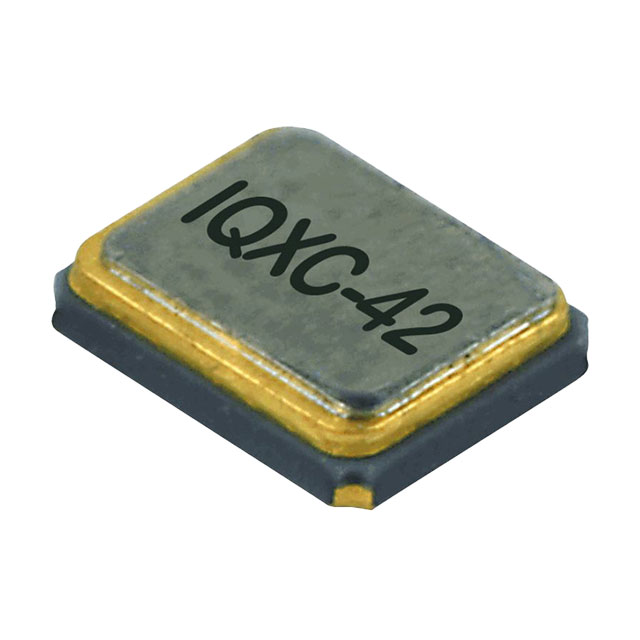

IQXC-42 Series

Manufacturer: IQD

Catalog

CRYSTALS 27.12 MHZ 10/50 FUND ESR=100OHMS 125C

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Type	Mounting Type	Frequency Stability	Frequency Tolerance	Frequency	Load Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Operating Mode	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
IQD LFXTAL085849	0.02 in	0.5 mm	MHz Crystal	Surface Mount	50 ppm	10 ppm	27.12 MHz	10 pF	1.6 mm	0.079 in	0.063 "	2 mm	100 Ohms	Fundamental	4-SMD No Lead	125 °C	-40 C
IQD LFXTAL081781	0.02 in	0.5 mm	MHz Crystal	Surface Mount	20 ppm	10 ppm	16 MHz	8 pF	1.6 mm	0.079 in	0.063 "	2 mm	200 Ohm	Fundamental	4-SMD No Lead	85 °C	-40 C
IQD LFXTAL085842	0.02 in	0.5 mm	MHz Crystal	Surface Mount	50 ppm	10 ppm	16 MHz	8 pF	1.6 mm	0.079 in	0.063 "	2 mm	150 Ohms 200 Ohm	Fundamental	4-SMD No Lead	125 °C	-40 C
