395-035 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Material - Insulation | Termination Rows | Contact Finish | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Read Out | Mounting Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination | Color | Contact Material | Number of Positions/Bay/Row | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Gender | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

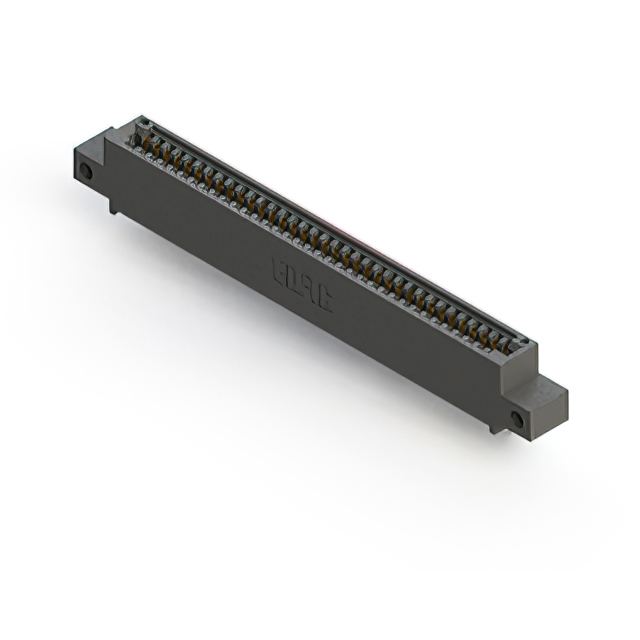

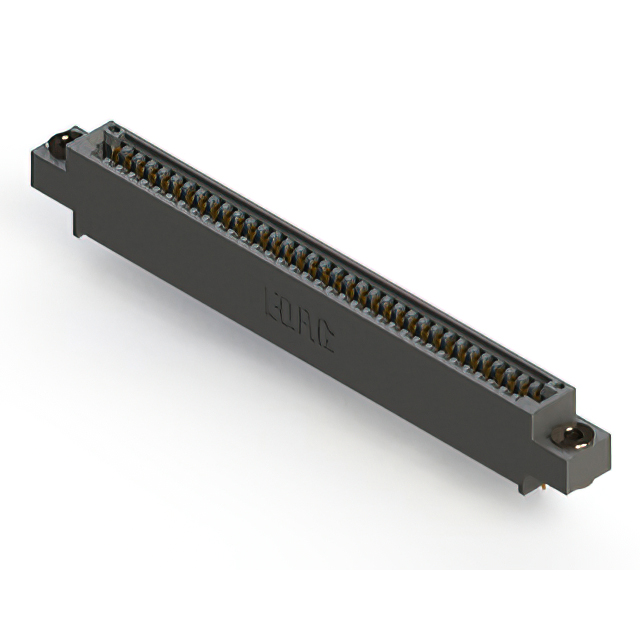

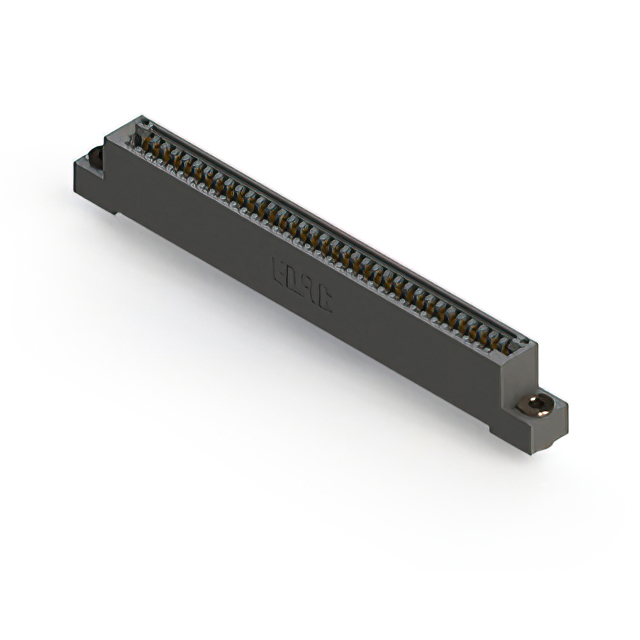

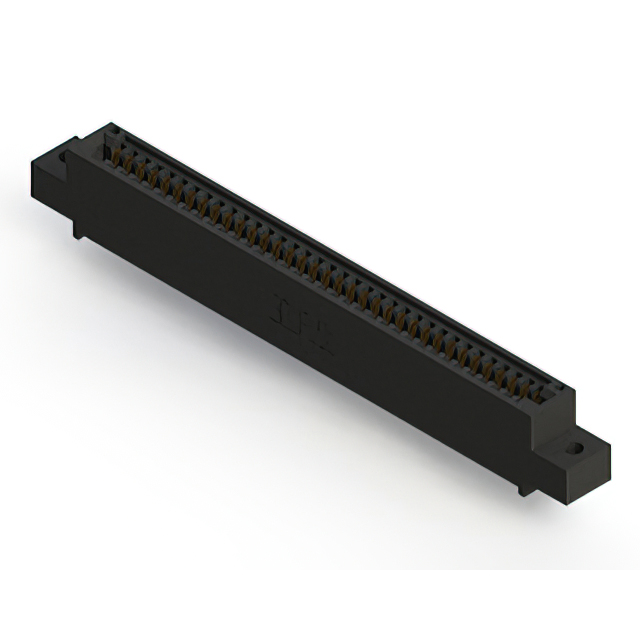

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | Black | Copper Alloy | 35 | 1 | 3.25 mm | 0.128 " | Non Specified - Single Edge | Female | ||

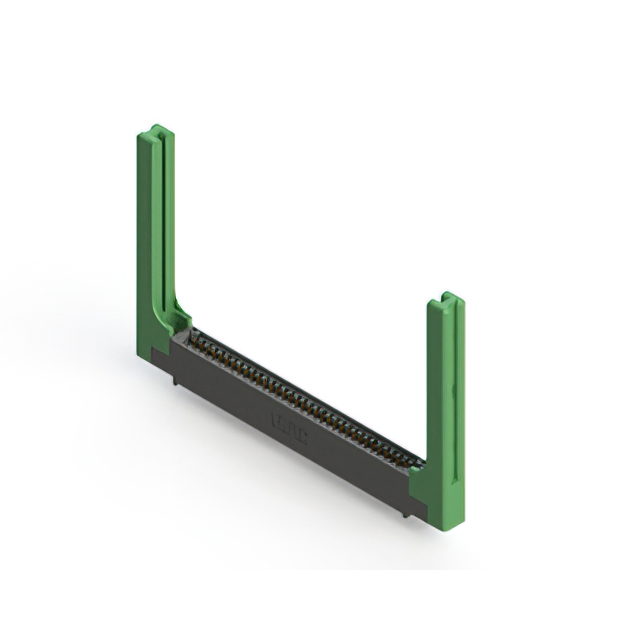

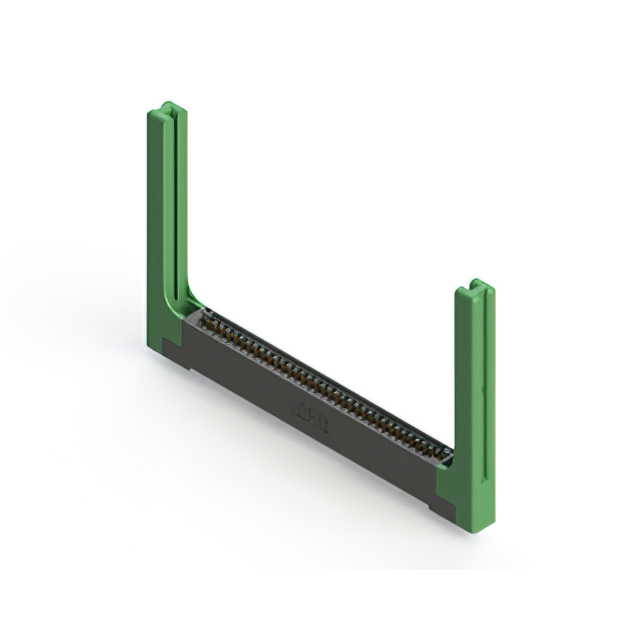

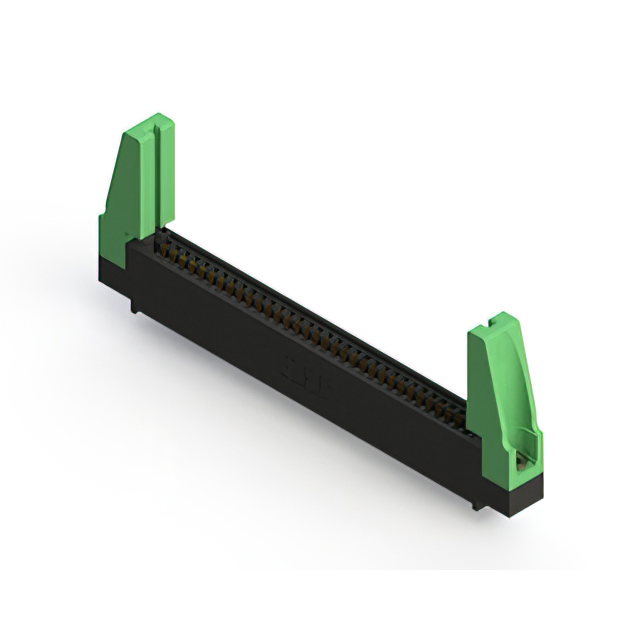

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | Black | Copper Alloy | 35 | 1 | Non Specified - Single Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | Black | Copper Alloy | 35 | 1 | Non Specified - Single Edge | Female | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Right Angle Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | Black | Copper Alloy | 35 | 1 | Non Specified - Single Edge | Female | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | Black | Copper Alloy | 35 | 1 | 3.25 mm | 0.128 " | Non Specified - Single Edge | Female | ||

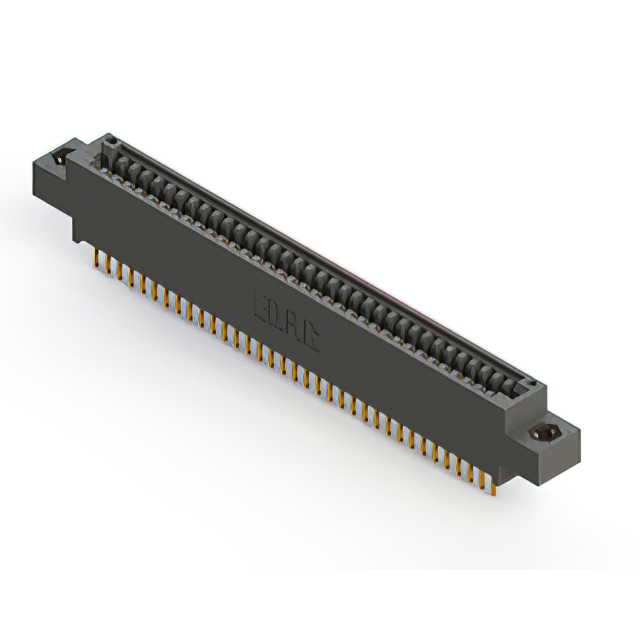

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Wire Wrap | Black | Copper Alloy | 35 | 1 | 3.25 mm | 0.128 " | Non Specified - Single Edge | Female | Side Mount Opening Unthreaded | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | Black | Copper Alloy | 35 | 1 | Non Specified - Single Edge | Female | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | Black | Copper Alloy | 35 | 1 | Non Specified - Single Edge | Female | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Right Angle Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | Black | Copper Alloy | 35 | 1 | Non Specified - Single Edge | Female | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | Through Hole | 35 | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | Black | Copper Alloy | 35 | 1 | 2.95 mm | 0.116 " | Non Specified - Single Edge | Female | Floating Bobbin Top Mount Opening |
