ALM06FD15 Series

Manufacturer: Amphenol Industrial Operations

Catalog

CONN PLUG MALE 37POS GOLD CRIMP

Part	Primary Material	Applications	Current Rating (Amps)	Insert Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Number of Positions	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color	Shell Material	Shielding	Shell Finish	Connector Type	Material Flammability Rating	Orientation	Contact Finish - Mating	Termination	Mounting Type	Shell Size - Insert	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]

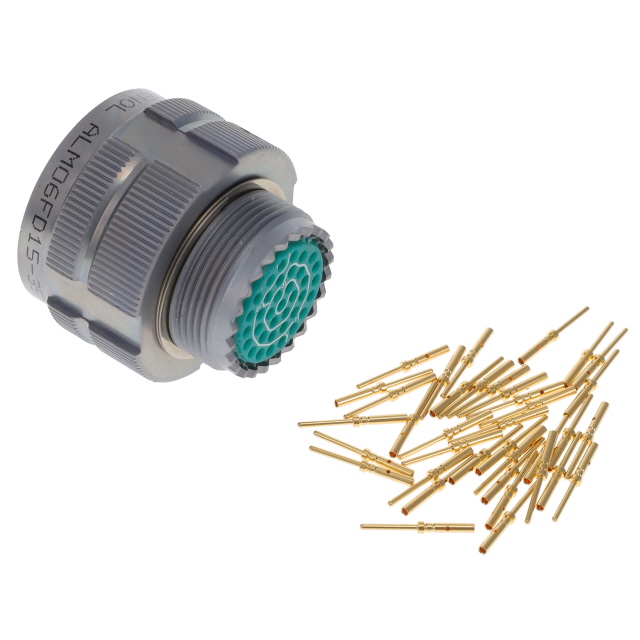

Amphenol Industrial Operations ALM06FD15-35P(072)	Composite	Aviation	5 A	Silicon Rubber	15	35	IP67 - Dust Tight Waterproof	37	Coupling Nut	125 °C	-65 ░C	Gray	Composite	Shielded	Gray Zinc Nickel	Male Pins Plug	UL94 V-0	N	Gold	Crimp	Free Hanging (In-Line)

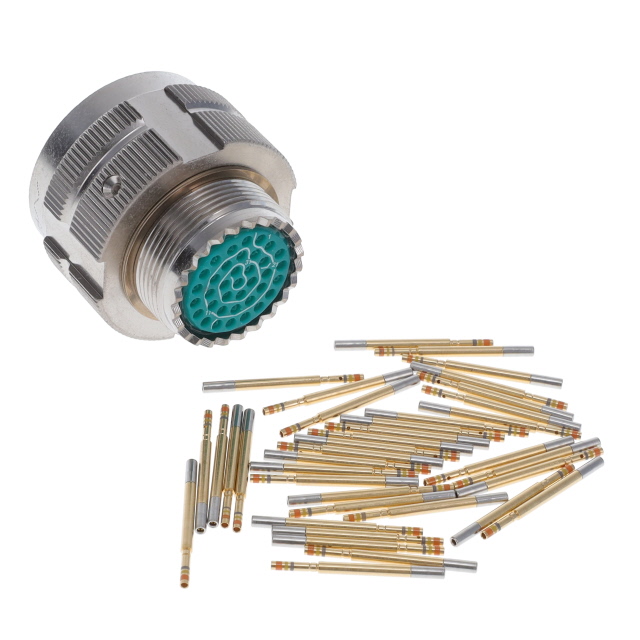

Amphenol Industrial Operations ALM06FD15-35S	Composite	Aviation	5 A	Silicon Rubber	15	35	IP67 - Dust Tight Waterproof	37	Coupling Nut	125 °C	-65 ░C		Composite	Shielded	Electroless Nickel	Female Sockets Plug	UL94 V-0	N	Gold	Crimp	Free Hanging (In-Line)

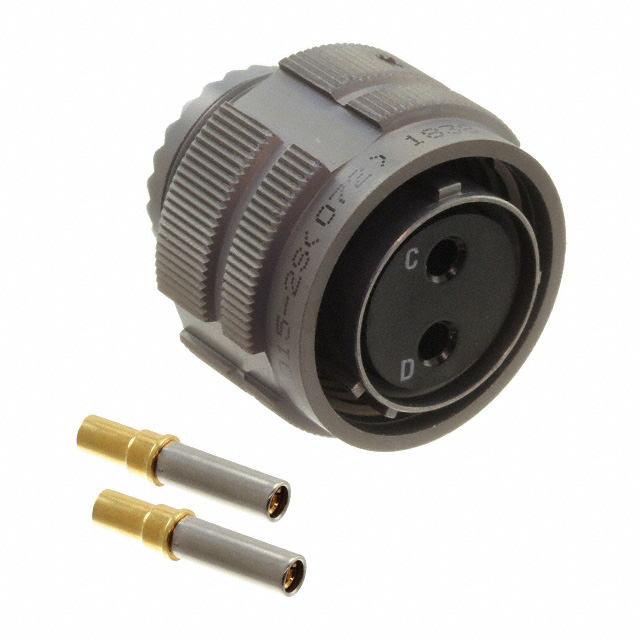

Amphenol Industrial Operations ALM06FD15-2S(072)	Composite	Aviation		Silicon Rubber			IP67 - Dust Tight Waterproof	2	Coupling Nut	125 °C	-65 ░C	Gray	Composite	Shielded	Gray Zinc Nickel	Female Sockets Plug	UL94 V-0	N	Gold	Crimp	Free Hanging (In-Line)	15-2

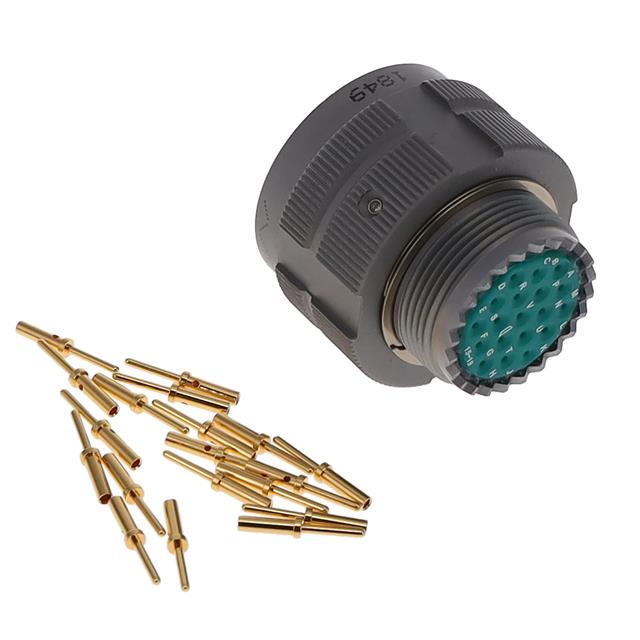

Amphenol Industrial Operations ALM06FD15-19P(072)	Composite	Aviation	7.5 A	Silicon Rubber			IP67 - Dust Tight Waterproof	19	Coupling Nut	125 °C	-65 ░C	Gray	Composite	Shielded	Gray Zinc Nickel	Male Pins Plug	UL94 V-0	N	Gold	Crimp	Free Hanging (In-Line)		19	15

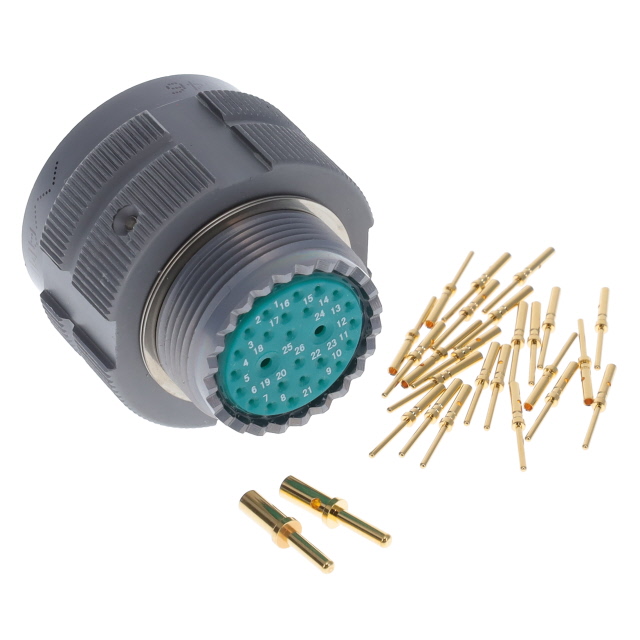

Amphenol Industrial Operations ALM06FD15-ACP(072)	Composite	Aviation		Silicon Rubber			IP67 - Dust Tight Waterproof	26	Coupling Nut	125 °C	-65 ░C	Gray	Composite	Shielded	Gray Zinc Nickel	Male Pins Plug	UL94 V-0	N	Gold	Crimp	Free Hanging (In-Line)	15-AC

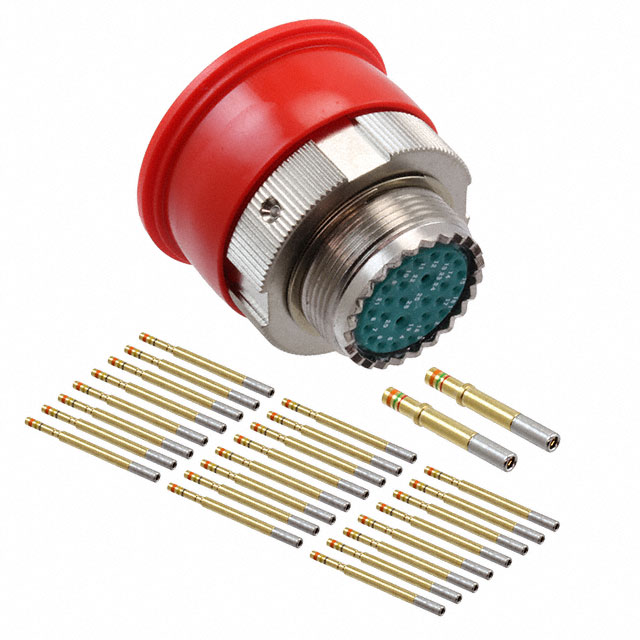

Amphenol Industrial Operations ALM06FD15-ACS	Composite	Aviation		Silicon Rubber			IP67 - Dust Tight Waterproof	26	Coupling Nut	125 °C	-65 ░C		Composite	Shielded	Electroless Nickel	Female Sockets Plug	UL94 V-0	N	Gold	Crimp	Free Hanging (In-Line)	15-AC
