NXH240 Series

Catalog

150KW 110V Q1BOOST SOLDER PIN/ BTRAY

Part	Supplier Device Package	Configuration	Mounting Type	Input	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Cies) @ Vce	IGBT Type	Package / Case	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	NTC Thermistor	Voltage - Collector Emitter Breakdown (Max) [Max]

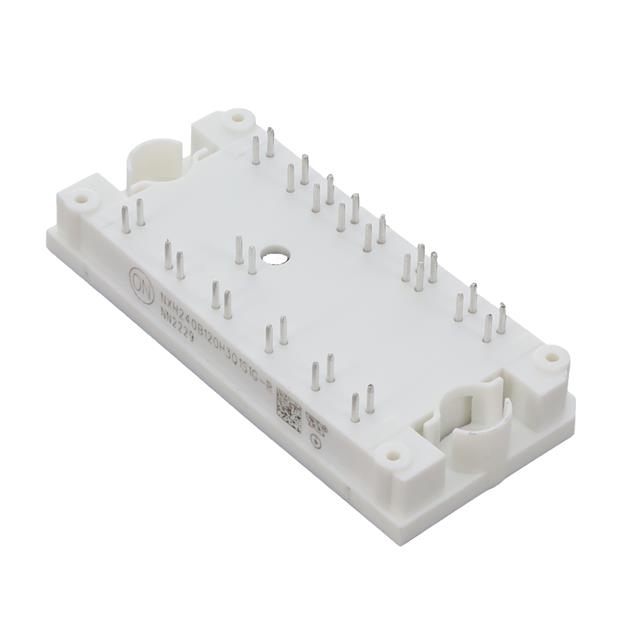

ON Semiconductor NXH240B120H3Q1S1G-R	32-PIM (71x37.4)	Three Level Inverter	Chassis Mount	Standard	2.7 V	150 µA	150 °C	-40 °C	19.082 nF	Trench Field Stop	Module	92 A	266 W		1200 V
