2823207 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

3P,2MM,PL,SRVT,SMD,0.76AU,TR W/C

Part	Insulation Color	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Features	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Number of Positions Loaded	Voltage Rating	Number of Rows	Contact Finish - Post	Style	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Shape	Shrouding	Termination	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Connector Type	Number of Positions

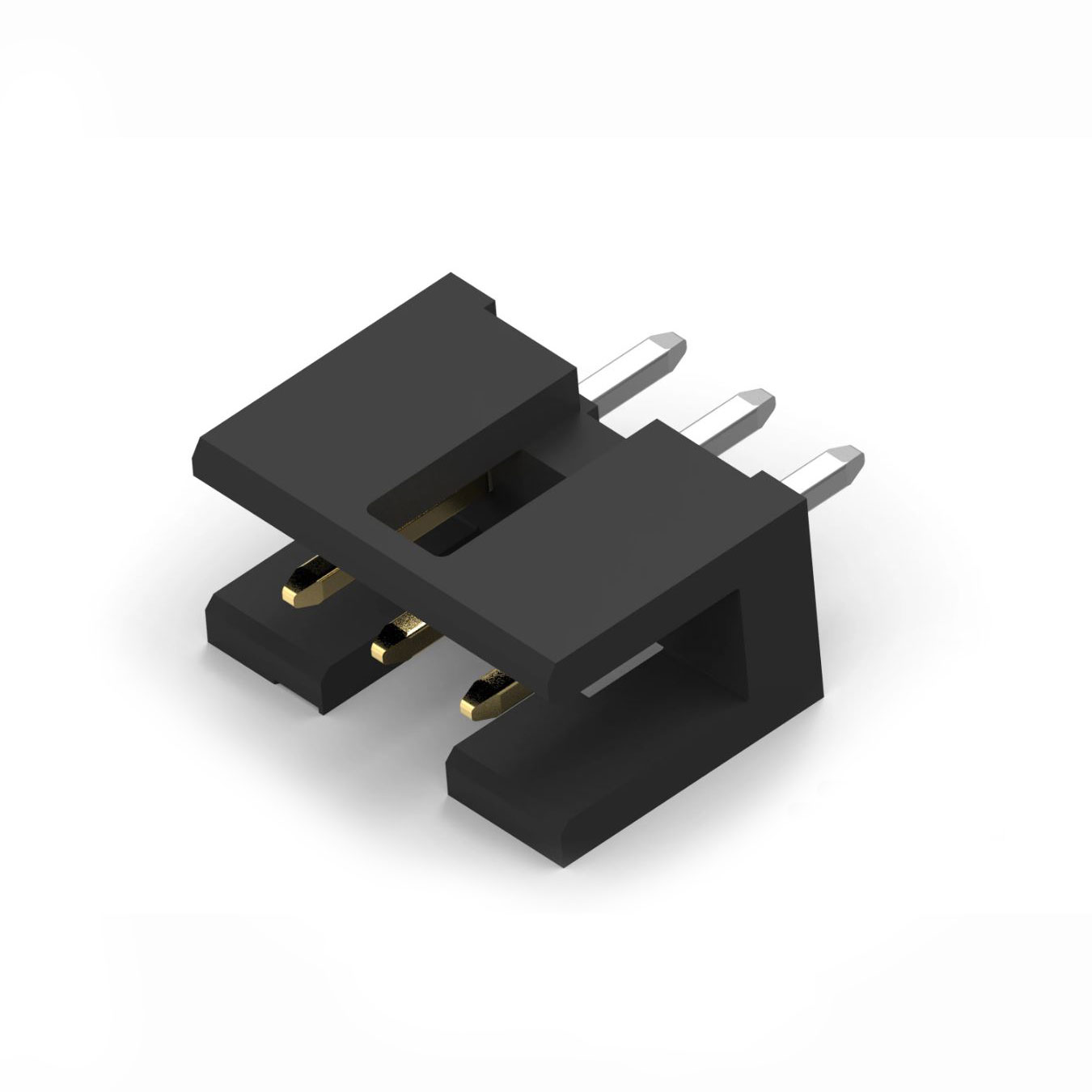

TE Connectivity Raychem Cable Protection 2823207-3	Black	Latch Holder	0.079 in	2 mm	Pick and Place	Surface Mount	2 A	Gold	157.5 Áin	4 Ám	Male Pin	All	125 VAC	1	Tin	Board to Board Cable	4 mm	0.157 in	UL94 V-0	Square	Shrouded - 2 Wall	Solder	Thermoplastic	125 °C	-40 °C	30 Áin	0.76 Ám	5.51 mm	0.217 in	Phosphor Bronze	Header

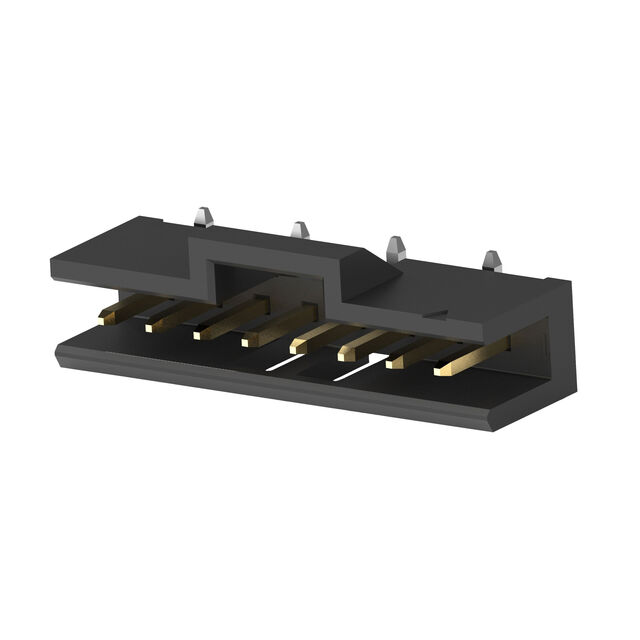

TE Connectivity Raychem Cable Protection 2823207-8	Black	Latch Holder	0.079 in	2 mm	Pick and Place	Surface Mount	2 A	Gold	157.5 Áin	4 Ám	Male Pin	All	125 VAC	1	Tin	Board to Board Cable	4 mm	0.157 in	UL94 V-0	Square	Shrouded - 2 Wall	Solder	Thermoplastic	125 °C	-40 °C	30 Áin	0.76 Ám	5.51 mm	0.217 in	Phosphor Bronze	Header	8
TE Connectivity Raychem Cable Protection 1-2823207-2	Black	Latch Holder	0.079 in	2 mm	Pick and Place	Surface Mount	2 A	Gold	157.5 Áin	4 Ám	Male Pin	All	125 VAC	1	Tin	Board to Board Cable	4 mm	0.157 in	UL94 V-0	Square	Shrouded - 2 Wall	Solder	Thermoplastic	125 °C	-40 °C	30 Áin	0.76 Ám	5.51 mm	0.217 in	Phosphor Bronze	Header	12
TE Connectivity Raychem Cable Protection 2823207-4	Black	Latch Holder	0.079 in	2 mm	Pick and Place	Surface Mount	2 A	Gold	157.5 Áin	4 Ám	Male Pin	All	125 VAC	1	Tin	Board to Board Cable	4 mm	0.157 in	UL94 V-0	Square	Shrouded - 2 Wall	Solder	Thermoplastic	125 °C	-40 °C	30 Áin	0.76 Ám	5.51 mm	0.217 in	Phosphor Bronze	Header	4

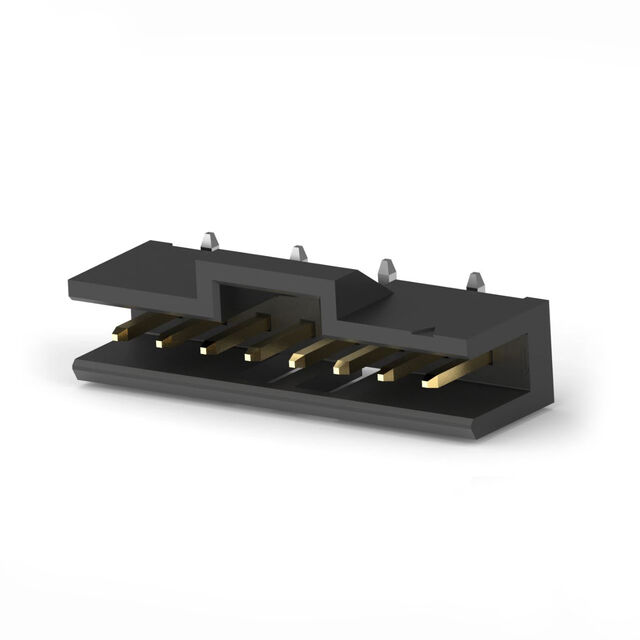

TE Connectivity Raychem Cable Protection 1-2823207-0	Black	Latch Holder	0.079 in	2 mm	Pick and Place	Surface Mount	2 A	Gold	157.5 Áin	4 Ám	Male Pin	All	125 VAC	1	Tin	Board to Board Cable	4 mm	0.157 in	UL94 V-0	Square	Shrouded - 2 Wall	Solder	Thermoplastic	125 °C	-40 °C	30 Áin	0.76 Ám	5.51 mm	0.217 in	Phosphor Bronze	Header	10
