GSM18E09 Series

Catalog

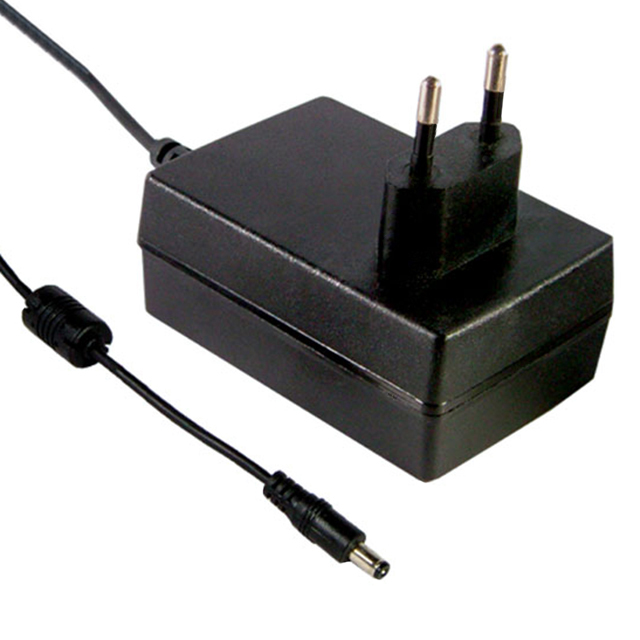

AC/DC WALL MOUNT ADAPTER 9V 18W

Part	No Load Power Consumption	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Region Utilized	Polarization	Form	Output Connector [x]	Output Connector [diameter]	Output Connector	Cord Length	Cord Length	Efficiency	Input Connector	Current - Output (Max) [Max]	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Input Type
MEAN WELL USA Inc. GSM18E09-P1J	100 mW	-25 °C	60 °C	18 W	Europe	Positive Center	Wall Mount	11 mm	2.1 mm 5.5 mm	Barrel Plug	1.2 m	47.2 in	Level V	CEE 7/16	2 A	Medical	33 mm	1.3 in	3.11 in	79 mm	54 mm	2.13 in	CB CE TUV	80 VAC	264 VAC	9 V	Fixed Blade
