PTVS26 Series

Catalog

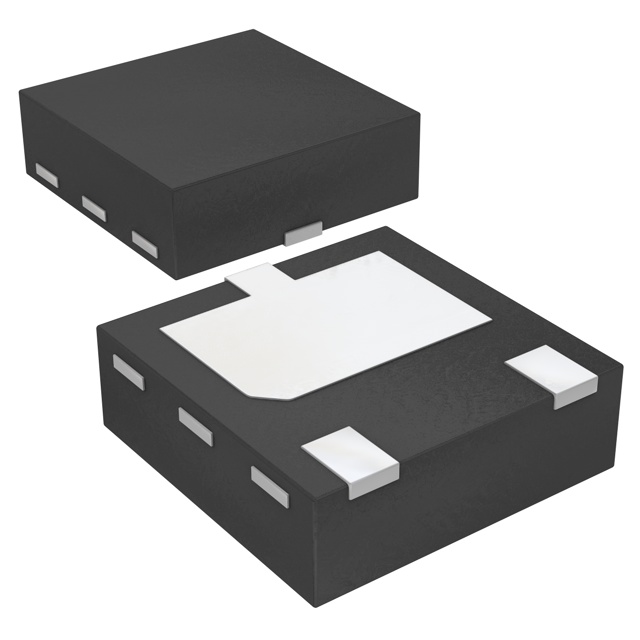

TVS DIODE 26VWM 42.1VC 3HUSON

Part	Voltage - Reverse Standoff (Typ)	Mounting Type	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Type	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Package / Case	Supplier Device Package	Capacitance @ Frequency	Applications
Freescale Semiconductor - NXP PTVS26VU1UPAZ	26 V	Surface Mount	28.9 V	1	42.1 V	Zener	AEC-Q101	-55 °C	150 °C	Automotive	7 A	300 W	3-PowerUDFN
Freescale Semiconductor - NXP PTVS26VZ1USKYL	26 V	Surface Mount	28.9 V	1	46 V	Zener		-40 °C	125 °C		4.5 A	200 W	0603 (1608 Metric)	DSN1608-2	215 pF	General Purpose
Freescale Semiconductor - NXP PTVS26VP1UP,115	26 V	Surface Mount	28.9 V	1	42.1 V	Zener	AEC-Q101	-55 °C	150 °C	Automotive	14.3 A	600 W	SOD-128
Freescale Semiconductor - NXP PTVS26VS1UR,115	26 V	Surface Mount	28.9 V	1	42.1 V	Zener	AEC-Q101	-55 °C	150 °C	Automotive		400 W	SOD-123W	SOD-123W
Freescale Semiconductor - NXP PTVS26VP1UTP,115	26 V	Surface Mount	28.9 V	1	42.1 V	Zener	AEC-Q101	-55 °C	185 °C	Automotive	14.3 A	600 W	SOD-128
