MC33HB2000 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
IC HALF BRIDGE DRIVER 3A 28HVQFN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | Technology | Applications | Supplier Device Package | Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Output Configuration | Motor Type - AC, DC | Function | Grade | Current - Output | Motor Type - Stepper |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Freescale Semiconductor - NXP | -40 °C | 125 ¯C | 5 V | 28 V | Surface Mount Wettable Flank | Power MOSFET | DC Motors General Purpose | 28-HVQFN (6x6) | Logic PWM SPI | 5 V | 3.3 V | 28-VQFN Exposed Pad | ||||||
Freescale Semiconductor - NXP | -40 °C | 125 °C | 5 V | 28 V | Surface Mount Wettable Flank | CMOS | DC Motors | 28-HVQFN (6x6) | SPI | 28 V | 5 V | 28-VQFN Exposed Pad | Half Bridge (2) | Brushed DC | Driver - Fully Integrated Control and Power Stage | Automotive | 10 A | Bipolar |

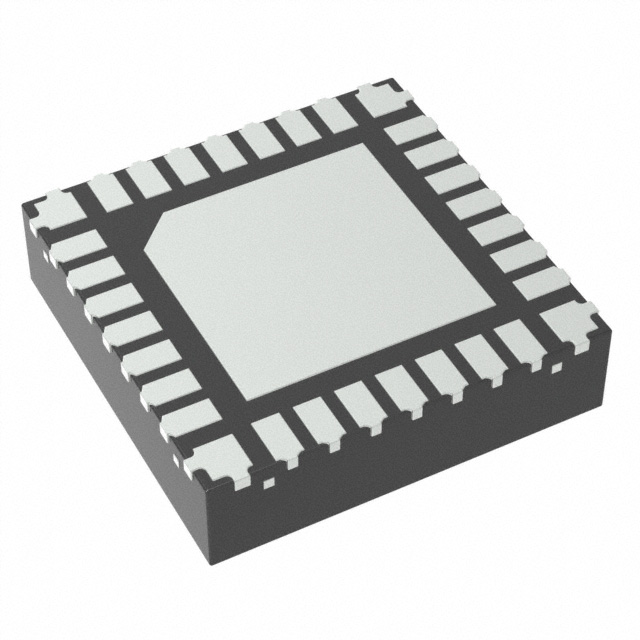

 Freescale Semiconductor - NXP | -40 °C | 125 ¯C | 5 V | 28 V | Surface Mount | Power MOSFET | DC Motors General Purpose | 32-PQFN (8x8) | Logic PWM SPI | 5 V | 3.3 V | 32-PowerQFN |
