M80-850 Series

Catalog

BOARD-TO-BOARD CONNECTOR, VERTICAL, DATAMATE L-TEK M80 SERIES, THROUGH HOLE, RECEPTACLE, 14, 2 MM ROHS COMPLIANT: YES

Part	Applications	Insulation Material	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Voltage Rating	Number of Positions	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Fastening Type	Termination	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Style	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type

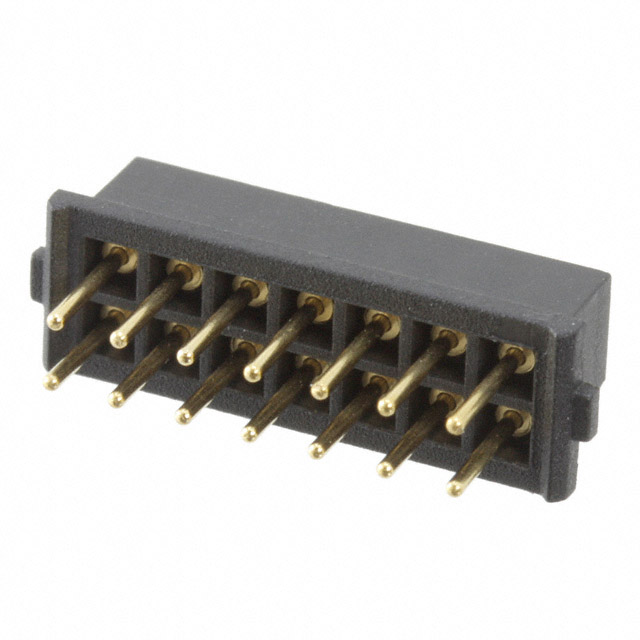

Harwin Inc. M80-8501445	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	10 Áin	0.25 çm	2	800 V	14	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Gold	12 Áin	0.3 Ám	Through Hole

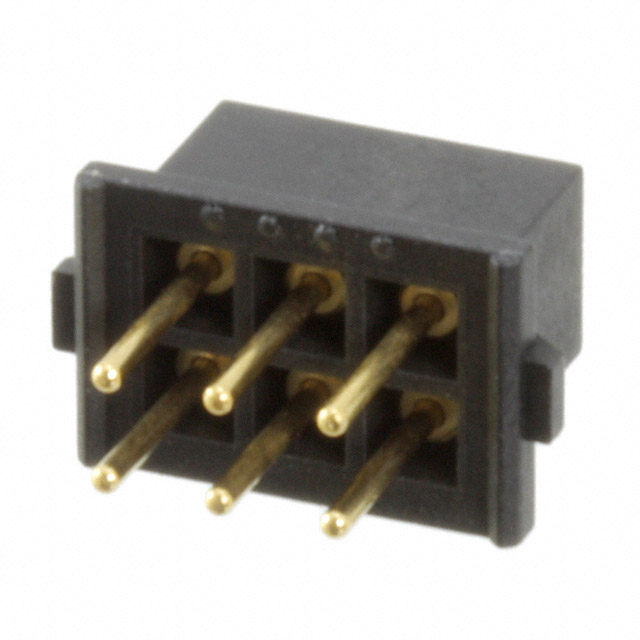

Harwin Inc. M80-8500645	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	10 Áin	0.25 çm	2	800 V	6	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Gold	12 Áin	0.3 Ám	Through Hole
Harwin Inc. M80-8502642	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	157.5 Áin	4 Ám	2	800 V	26	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Tin	12 Áin	0.3 Ám	Through Hole

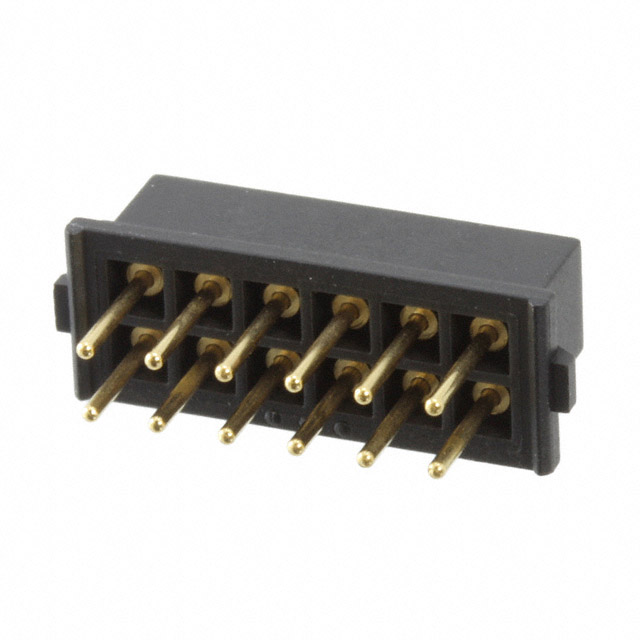

Harwin Inc. M80-8501245	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	10 Áin	0.25 çm	2	800 V	12	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Gold	12 Áin	0.3 Ám	Through Hole

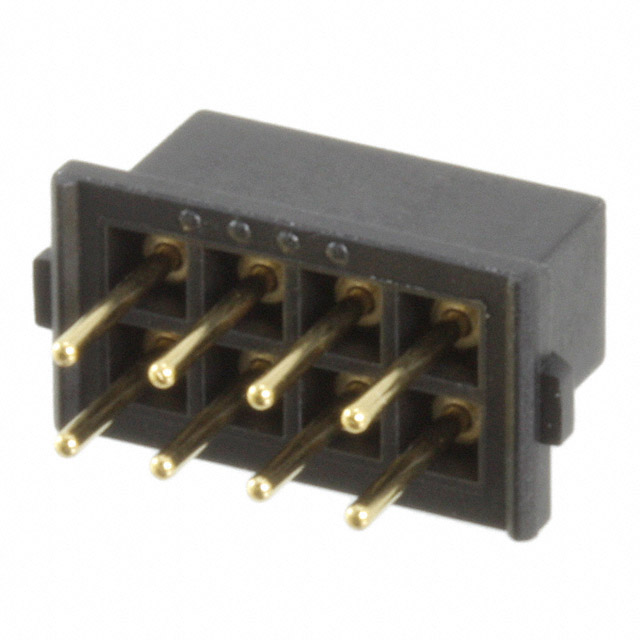

Harwin Inc. M80-8500845	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	10 Áin	0.25 çm	2	800 V	8	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Gold	12 Áin	0.3 Ám	Through Hole

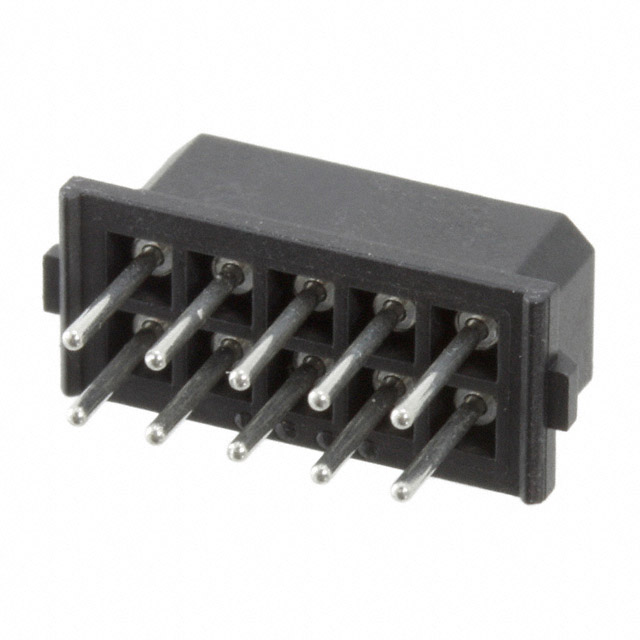

Harwin Inc. M80-8501042	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	157.5 Áin	4 Ám	2	800 V	10	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Tin	12 Áin	0.3 Ám	Through Hole

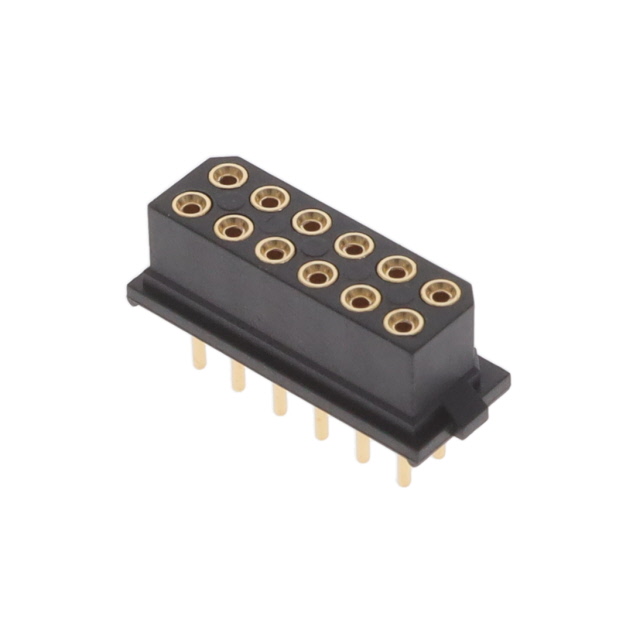

Harwin Inc. M80-8501245R	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	10 Áin	0.25 çm	2	800 V	12	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Gold	12 Áin	0.3 Ám	Through Hole

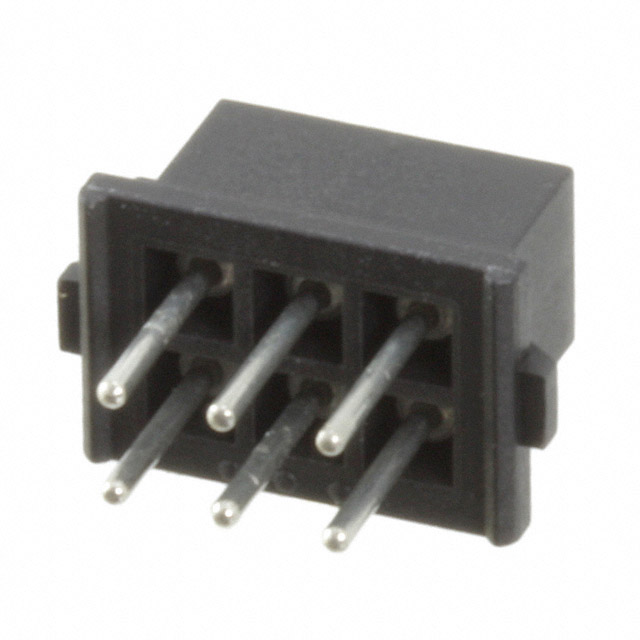

Harwin Inc. M80-8500642	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	157.5 Áin	4 Ám	2	800 V	6	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Tin	12 Áin	0.3 Ám	Through Hole
Harwin Inc. M80-8501045	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	10 Áin	0.25 çm	2	800 V	10	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Gold	12 Áin	0.3 Ám	Through Hole

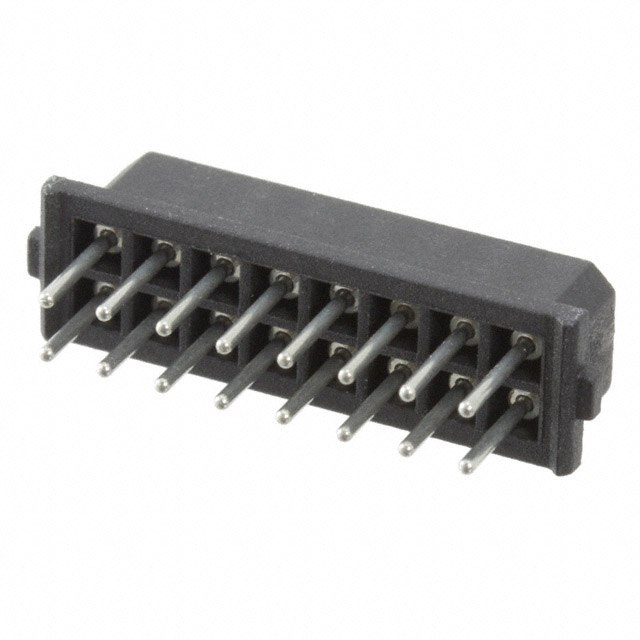

Harwin Inc. M80-8501642	Automotive General Purpose Military	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	157.5 Áin	4 Ám	2	800 V	16	7.23 mm 7.85 mm	-55 C	125 °C	All	Receptacle	UL94 V-0	0.079 "	2 mm	Black	Locking Ramp	Solder	2 mm	0.079 in	0.202 in	5.14 mm	Board to Board Cable	Female Socket	0.118 in	3 mm	Gold	Tin	12 Áin	0.3 Ám	Through Hole
