RAC20 Series

AC/DC Power Modules 20W AC/DC 3kV REG 90-264Vin 12Vout

Manufacturer: Recom Power

Catalog

AC/DC Power Modules 20W AC/DC 3kV REG 90-264Vin 12Vout

Catalog

AC/DC Power Modules 20W AC/DC 3kV REG 90-264Vin 12Vout

Part	Line Regulation	Load Regulation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Package / Case	Mounting Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Approval Agency	Features	Applications	Type	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Weight	Weight	Load Regulation	Size / Dimension [z]	Size / Dimension [y]	Standard Number	Minimum Load Required	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)

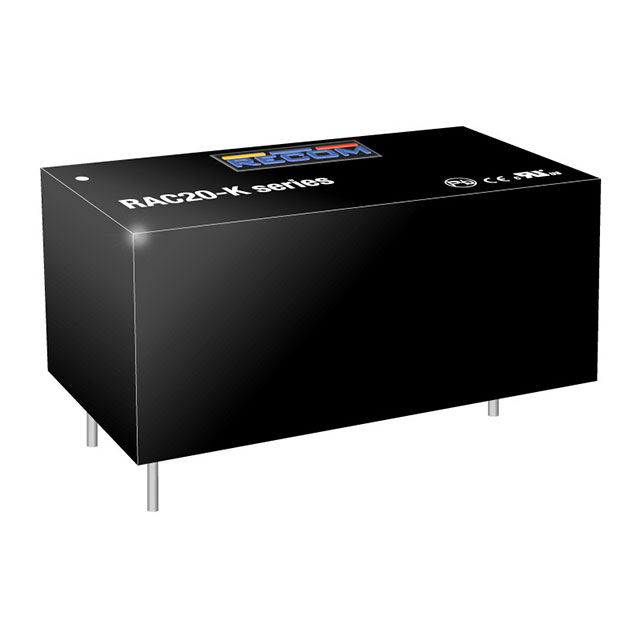

Recom Power RAC20-24SK	0.5 %	2 %	27.4 mm	0.91 in	2.07 in	23 mm	52.5 mm	1.08 in	840 mA	5-DIP Module 4 Leads	Through Hole	20 W	-40 °C	85 °C	24 V	CB CE cURus	IP20 Universal Input	Household Appliances ITE (Commercial)	Enclosed	85 %	85 VAC 120 VDC	264 VAC 370 VDC	1
Recom Power RAC20-12SB	0.5 %			0.94 "	2.06 "		52.3 mm	1.07 in	1.66 A	4-DIP Module	Through Hole	20 W			12 V	CE UL	SCP	ITE (Commercial)	Enclosed		90 VAC	264 VAC	1	58.97 g	0.13 lbs	±1%	23.8 mm	27.2 mm
Recom Power RAC20-05SK/W	0.5 %	2 %	27.4 mm	0.91 in	2.07 in	23 mm	52.5 mm	1.08 in	4 A		Through Hole	20 W	-40 °C	80 ¯C	5 V	CE cURus	Universal Input	Household Appliances ITE (Commercial)	Enclosed	84 %	85 VAC 120 VDC	264 VAC 370 VDC	1						62368-1

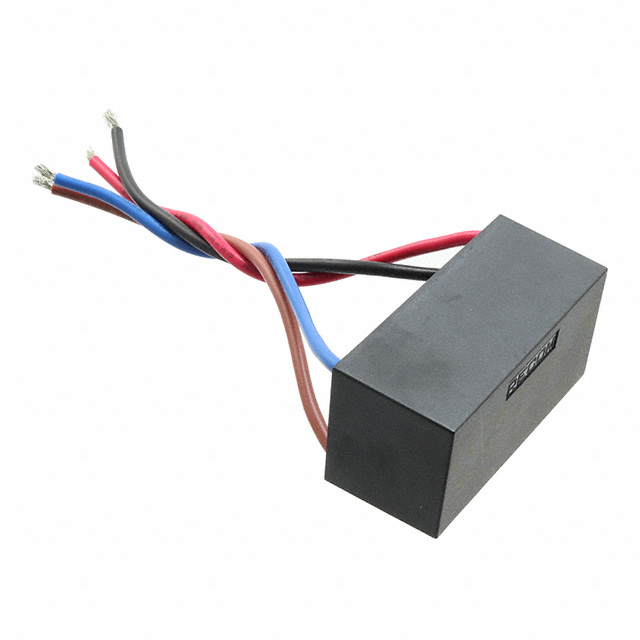

Recom Power RAC20-24SK/W			27.4 mm	0.91 in	2.07 in	23 mm	52.5 mm	1.08 in			Chassis Mount		-40 °C	80 ¯C	24 V	CE cURus	Universal Input	Household Appliances ITE (Commercial)	Enclosed		85 VAC 120 VDC	264 VAC 370 VDC	1								4000 V

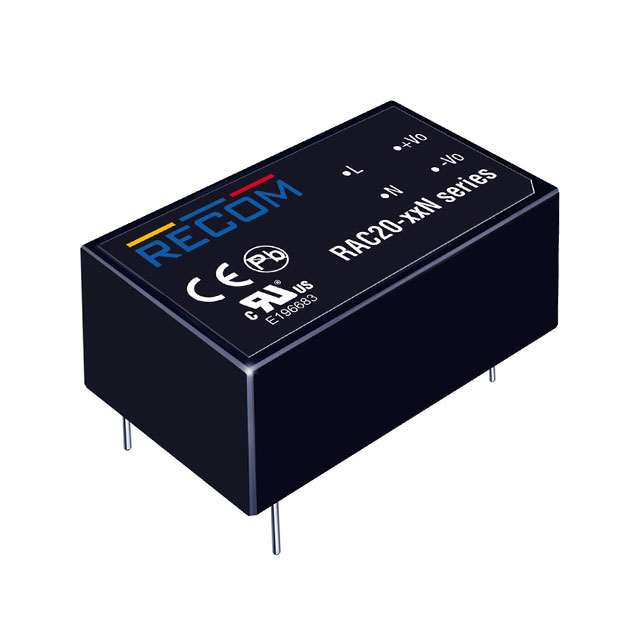

Recom Power RAC20-12SN	0.5 %			0.93 "	2.07 in		52.5 mm	1.08 in	1.66 A	4-DIP Module	Through Hole	20 W			12 V	CE cURus	Universal Input	ITE (Commercial)	Enclosed		90 VAC	264 VAC	1	62.14 g	0.137 lb	±1%	23.5 mm	27.4 mm

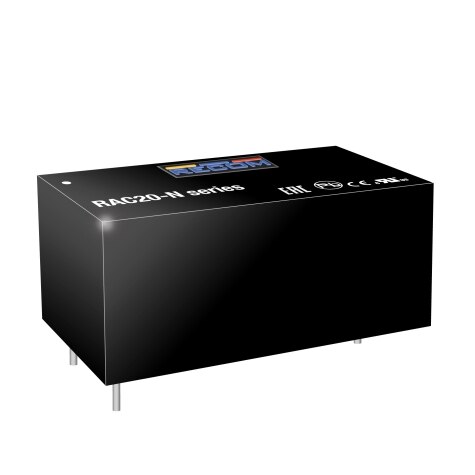

Recom Power RAC20-24SN	0.5 %			0.93 "	2.07 in		52.5 mm	1.08 in	833 mA	4-DIP Module	Through Hole	20 W			24 V	CE cURus	Universal Input	ITE (Commercial)	Enclosed	83 %	90 VAC	264 VAC	1	62.14 g	0.137 lb	±1%	23.5 mm	27.4 mm

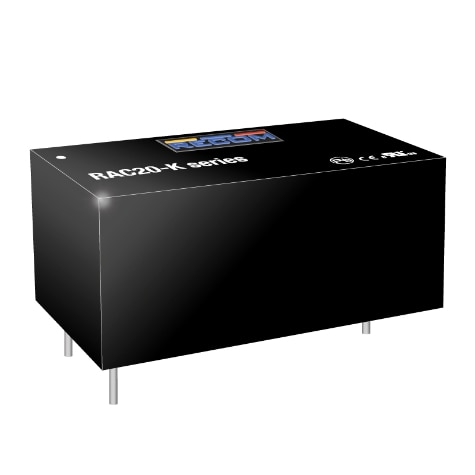

Recom Power RAC20-12DK	0.5 %	2 %	27.4 mm	0.91 in	2.07 in	23 mm	52.5 mm	1.08 in		5-DIP Module	Through Hole	20 W	-40 °C	85 °C	12 V	CB CE cURus	IP20 Universal Input	Household Appliances ITE (Commercial)	Enclosed	84 %	85 VAC 120 VDC	264 VAC 370 VDC	2									833 mA	833 mA
Recom Power RAC20-05SA	0.5 %		48 mm	0.88 in	2.76 "	22.3 mm	70 mm	1.89 in	4 A	8-DIP Module 5 Leads	Through Hole	20 W	-25 °C	70 °C	5 V	CE cULus	Universal Input	ITE (Commercial)	Enclosed	79 %	90 VAC	264 VAC	1	110.22 g	0.243 lb	±1%			60950-1
Recom Power RAC20-15DK	0.5 %	2 %	27.4 mm	0.91 in	2.07 in	23 mm	52.5 mm	1.08 in		5-DIP Module	Through Hole	20 W	-40 °C	85 °C	15 V	CB CE cURus	IP20 Universal Input	Household Appliances ITE (Commercial)	Enclosed	84 %	85 VAC 120 VDC	264 VAC 370 VDC	2									670 mA	670 mA
