Mini AMP-IN Series

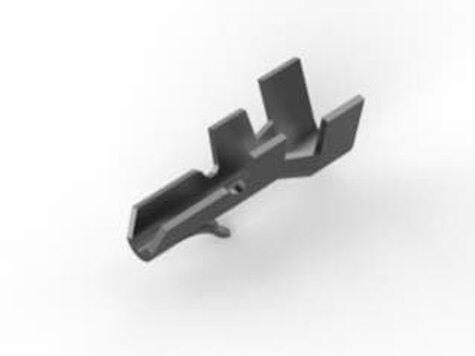

Terminals CONTACT 22-26AWG TIN Reel of 10000
Manufacturer: TE Connectivity AMP Connectors
Catalog
Terminals CONTACT 22-26AWG TIN Reel of 10000
| Part | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Contact Material | Hole Diameter [diameter] | Hole Diameter [diameter] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.02 mm | 0.04 " | 1.78 mm | 0.07 in | 26 AWG | 22 AWG | Tin | 6.35 mm | 0.25 in | Phosphor Bronze | 0.055 in | 1.4 mm | Through Board Locking |
