VS Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 105 W, 15 V, 7 A

Part	Current - Output 5	Number of Outputs	Voltage - Output 4	Standard Number	Applications	Voltage - Output 6	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 3	Mounting Type	Voltage - Output 1	Power (Watts)	Voltage - Isolation	Approval Agency	Voltage - Output 5	Type	Efficiency	Current - Output 4	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Voltage - Output 2	Voltage - Output 3	Current - Output 2	Current - Output 6	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]	Current - Output 4 [custom]

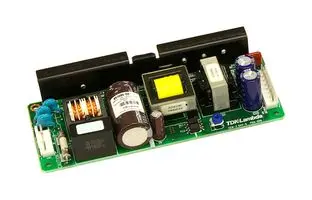

TDK Corporation VS100E-15	7 A	6	15 V	60950-1 62368-1	ITE (Commercial)	15 V	70 °C	-10 °C	7 A	Chassis Mount	15 V	105 W	2000 V	CE cURus	15 V	Open Frame	85 %	7 A	155 mm	6.1 "	29 mm	1.14 in	62 mm	2.44 "	Adjustable Output	15 V	15 V	7 A	7 A	85 VAC 110 VDC	132 VAC 175 VDC	7 A
TDK Corporation VS100E-48	2.2 A	6		60950-1 62368-1	ITE (Commercial)	48 V	70 °C	-10 °C	2.2 A	Chassis Mount	48 V	106 W	2000 V	CE cURus	48 V	Open Frame	87 %	2.2 A	155 mm	6.1 "	29 mm	1.14 in	62 mm	2.44 "	Adjustable Output	48 V	48 V	2.2 A	2.2 A	85 VAC 110 VDC	132 VAC 175 VDC	2.2 A
TDK Corporation VS100E-3	20 A	6	3.3 V	60950-1 62368-1	ITE (Commercial)	3.3 V	70 °C	-10 °C	20 A	Chassis Mount	3.3 V	66 W	2000 V	CE cURus	3.3 V	Open Frame	80 %	20 A	155 mm	6.1 "	29 mm	1.14 in	62 mm	2.44 "	Adjustable Output	3.3 V	3.3 V	20 A	20 A	85 VAC 110 VDC	132 VAC 175 VDC	20 A
TDK Corporation VS150E-5		1			ITE (Commercial)		70 °C	-10 °C		Chassis Mount	5 V	150 W	2500 V	CE cURus TUV		Open Frame	86 %		222 mm	8.74 in	36 mm	1.42 "	75 mm	2.95 "	Adjustable Output DC Input Capable					85 VAC	132 VAC	30 A
TDK Corporation VS50E-3	10 A	6	3.3 V	60950-1 62368-1	ITE (Commercial)	3.3 V	70 °C	-10 °C		Chassis Mount	3.3 V	33 W	2000 V	CE cURus	3.3 V	Open Frame	80 %	10 A	132 mm	5.2 in		0.91 in		1.97 in	Adjustable Output	3.3 V	3.3 V	10 A	10 A	85 VAC	132 VAC	10 A	23 mm	50 mm
TDK Corporation VS50E-5	10 A	6	5 V	60950-1 62368-1	ITE (Commercial)	5 V	70 °C	-10 °C		Chassis Mount	5 V	50 W	2000 V	CE cURus	5 V	Open Frame	85 %	10 A	132 mm	5.2 in		0.91 in		1.97 in	Adjustable Output	5 V	5 V	10 A	10 A	85 VAC	132 VAC	10 A	23 mm	50 mm

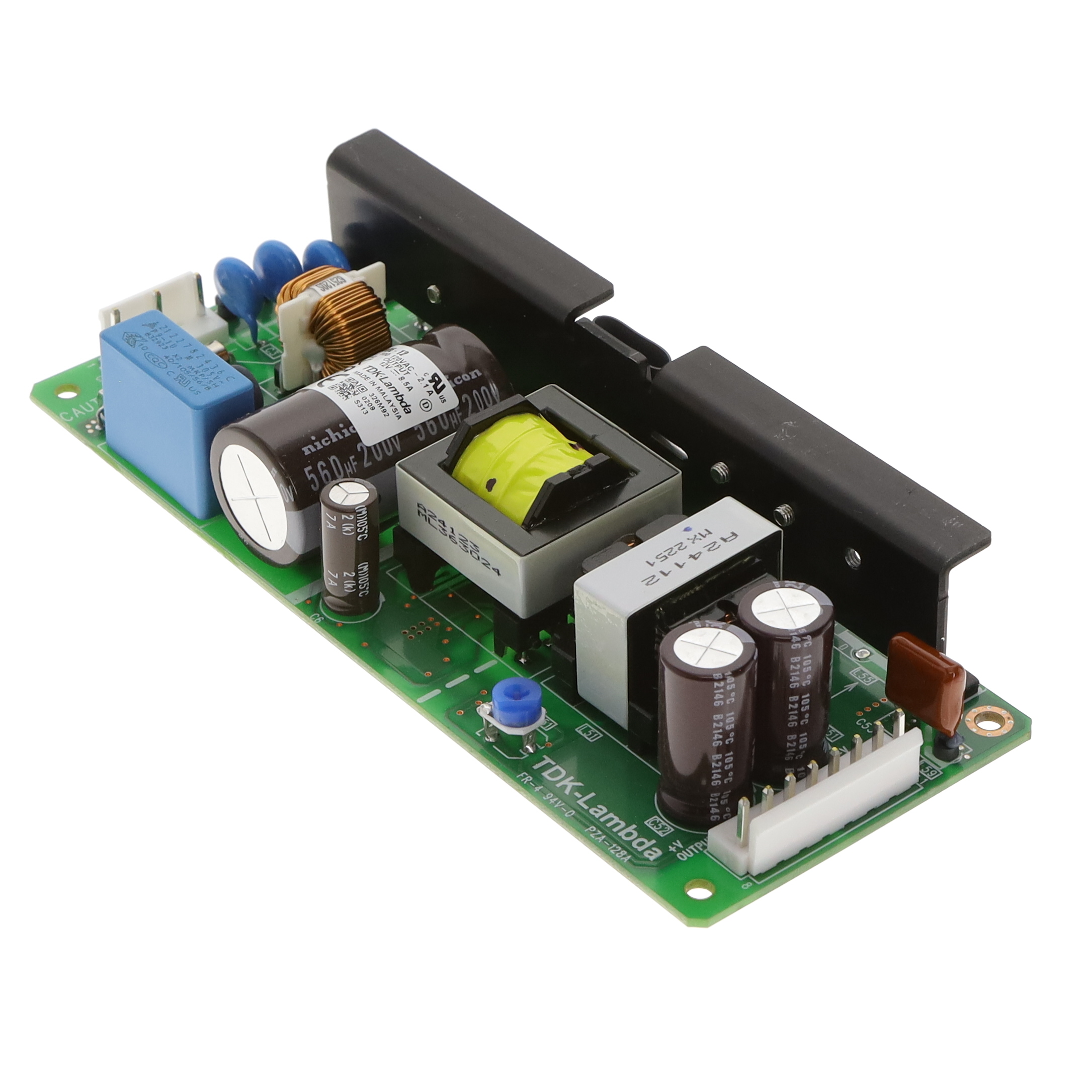

TDK Corporation VS100E-12	8.5 A	6	12 V	60950-1 62368-1	ITE (Commercial)	12 V	70 °C	-10 °C	8.5 A	Chassis Mount	12 V	102 W	2000 V	CE cURus	12 V	Open Frame	85 %		155 mm	6.1 "	29 mm	1.14 in	62 mm	2.44 "	Adjustable Output	12 V	12 V	8.5 A	8.5 A	85 VAC 110 VDC	132 VAC 175 VDC				8.5 A

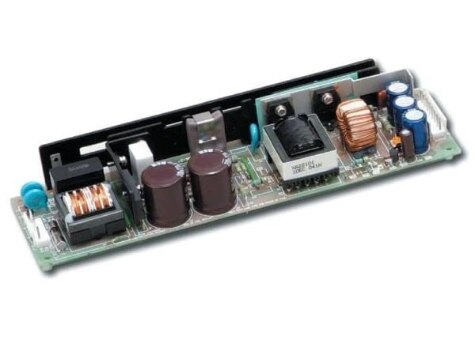

TDK Corporation VS50E-15	3.5 A	6	15 V	60950-1 62368-1	ITE (Commercial)	15 V	70 °C	-10 °C	3.5 A	Chassis Mount	15 V	53 W	2000 V	CE cURus	15 V	Open Frame	85 %	3.5 A	132 mm	5.2 in		0.91 in		1.97 in	Adjustable Output	15 V	15 V	3.5 A	3.5 A	85 VAC	132 VAC	3.5 A	23 mm	50 mm
TDK Corporation VS150E-3	30 A	6	3.3 V	60950-1 62368-1	ITE (Commercial)	3.3 V	70 °C	-10 °C	30 A	Chassis Mount	3.3 V	99 W	2000 V	CE cURus	3.3 V	Open Frame	80 %	30 A	160 mm	6.3 in	34 mm	1.34 "	75 mm	2.95 "	Adjustable Output	3.3 V	3.3 V	30 A	30 A	85 VAC 110 VDC	132 VAC 175 VDC	30 A

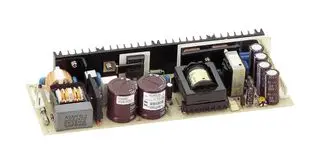

TDK Corporation VS150E-15	10 A	6	15 V	60950-1 62368-1	ITE (Commercial)	15 V	70 °C	-10 °C		Chassis Mount	15 V	150 W	2000 V	CE cURus	15 V	Open Frame	87 %	10 A	160 mm	6.3 in	34 mm	1.34 "	75 mm	2.95 "	Adjustable Output	15 V	15 V	10 A	10 A	85 VAC 110 VDC	132 VAC 175 VDC	10 A
