PK10 Series

Catalog

CONN SCSI RCP 50 POS 1MM SOLDER RA SMD 50 TERMINAL 1 PORT BOX

Part	Number of Rows [custom]	Mounting Type	Number of Positions	Connector Type	Pitch	Pitch	Features	Contact Finish	Height Above Board	Height Above Board	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]

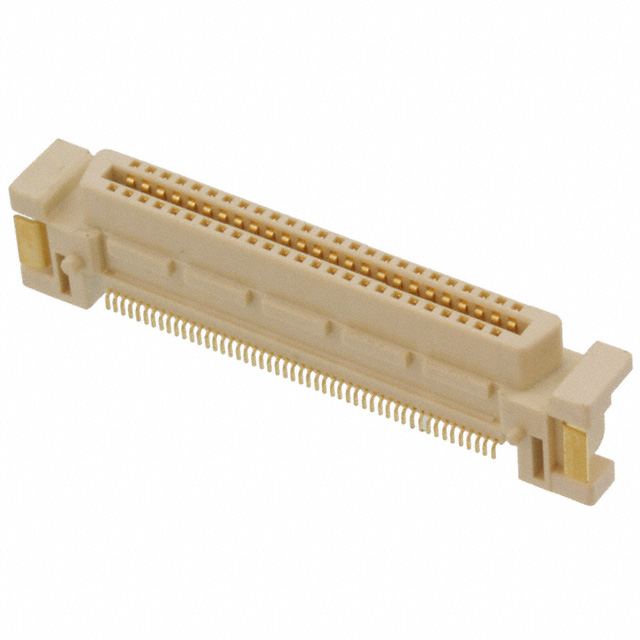

3M Electronic Specialty PK10-050S-R-DA	2	Right Angle Surface Mount	50	Socket Outer Shroud Contacts	1 mm	0.039 in	Board Guide Solder Retention	Gold	0.189 in	4.8 mm
3M Electronic Specialty PK10-080S-R-TGF	2	Right Angle Surface Mount	80	Socket Outer Shroud Contacts	1 mm	0.039 in	Board Guide Solder Retention	Gold	0.189 in	4.8 mm
3M Electronic Specialty PK10-080S-R-DA	2	Right Angle Surface Mount	80	Socket Outer Shroud Contacts	1 mm	0.039 in	Board Guide Solder Retention	Gold	0.189 in	4.8 mm
3M Electronic Specialty PK10-080P-R-DA	2	Right Angle Surface Mount	80		1 mm	0.039 in	Board Guide Solder Retention	Gold	0.189 in	4.8 mm
3M Electronic Specialty PK10-100S-S-DA	2	Surface Mount	100	Socket Outer Shroud Contacts	1 mm	0.039 in	Board Guide Solder Retention	Gold			5 mm	0.157 in	4 mm

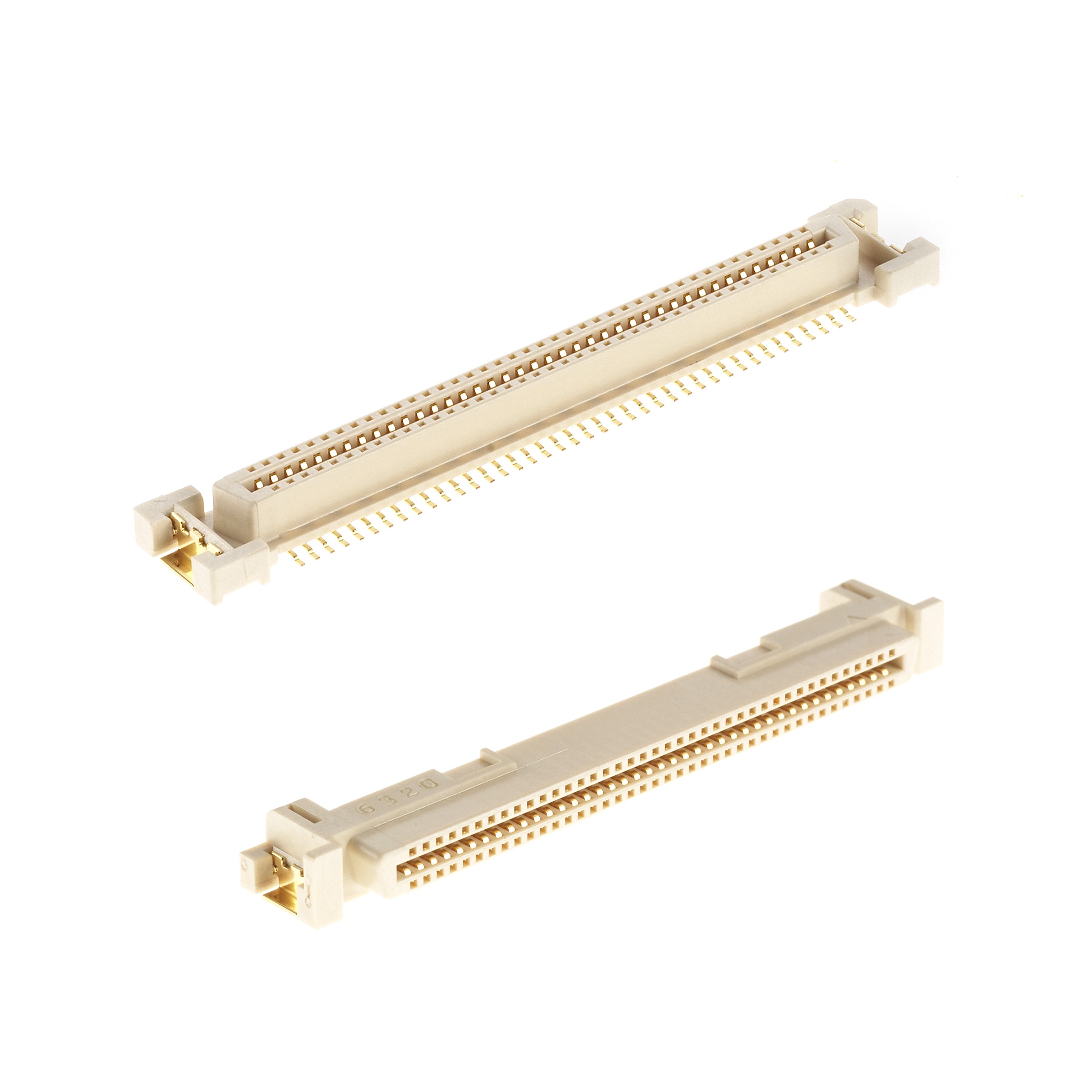

3M Electronic Specialty PK10-050PM-S-DA	2	Surface Mount	50		1 mm	0.039 in	Board Guide Solder Retention	Gold				0.154 in	3.9 mm
3M Electronic Specialty PK10-050P-R-DA	2	Right Angle Surface Mount	50		1 mm	0.039 in	Board Guide Solder Retention	Gold	0.189 in	4.8 mm
