CD630815 Series

Catalog

THYRISTOR MODULE, SERIES CONNECTED, 150 A

Part	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Number of SCRs, Diodes	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Structure	Current - On State (It (RMS)) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (AV)) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case

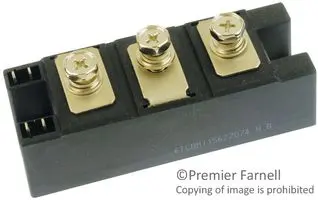

Powerex Inc. CD630815C	800 V	5400 A	2 SCRs	2.5 V	150 mA	Series Connection - All SCRs	235 A	-40 C	125 °C	150 A	150 mA	Module
