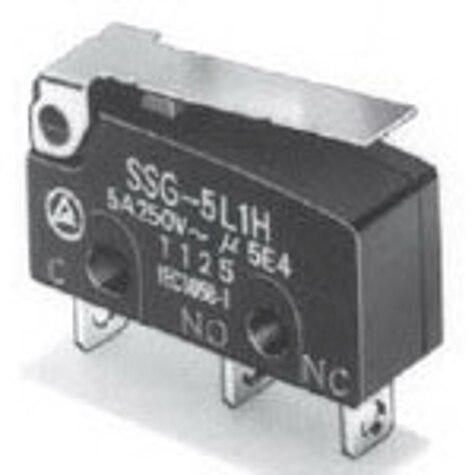

SSG Series
Basic / Snap Action Switches Hinge Lever Solder .6N OF 5A
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
Basic / Snap Action Switches Hinge Lever Solder .6N OF 5A
Beta
⌘K
Basic / Snap Action Switches Hinge Lever Solder .6N OF 5A
Basic / Snap Action Switches Hinge Lever Solder .6N OF 5A
Basic / Snap Action Switches Hinge Lever Solder .6N OF 5A
| Part | Release Force | Differential Travel | Differential Travel | Operating Position | Operating Position | Mounting Type | Voltage Rating - AC | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Circuit | Overtravel [custom] | Overtravel [custom] | Actuator Type | Termination Style | Ingress Protection | Electrical Life | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 6.118 gf | 0.031 in | 0.8 mm | 0.345 in | 8.8 mm | Chassis Mount | 125 V | 10000000 Cycles | -25 °C | 125 °C | On-Mom | 4A 5A | 30 V | SPDT | 0.04 " | 1 mm | Lever Straight | Solder Lug | IP40 | 200000 Cycles | 61 gf |
