PM2203 Series

Catalog

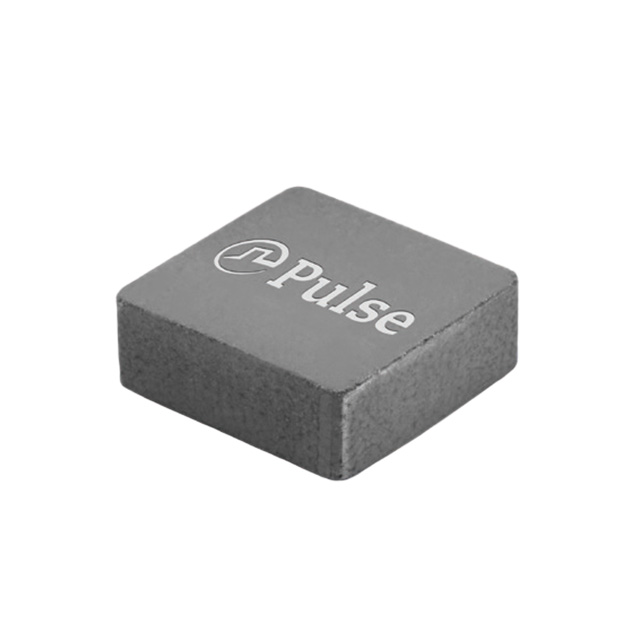

POWER INDUCTORS - SMD IND, MODED POWER 5.7X5.5X3.1 SMT

Part	Current - Saturation (Isat)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Inductance	Tolerance	Ratings	Package / Case	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Supplier Device Package	Current Rating (Amps)
Pulse Electronics PM2203.801NLT	20 A	Surface Mount	0.217 in	0.209 in	5.3 mm	5.5 mm	155 C	-55 C	100 kHz	800 nH	20 %	AEC-Q200	Nonstandard	Unshielded	0.122 in	3.1 mm	5.65 mOhm	SMD	13.1 A
Pulse Electronics PM2203.152NLT	14 A	Surface Mount	0.217 in	0.209 in	5.3 mm	5.5 mm	155 C	-55 C	100 kHz	1.5 µH	20 %	AEC-Q200	Nonstandard	Unshielded	0.122 in	3.1 mm	11.2 mOhm	SMD	10.5 A
