RXM-GNSS Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RF RX GNSS 1.575/1.602GHZ MODULE
| Part | Modulation or Protocol | Antenna Connector | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Current - Receiving | Data Interface | Frequency | Package / Case | Sensitivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

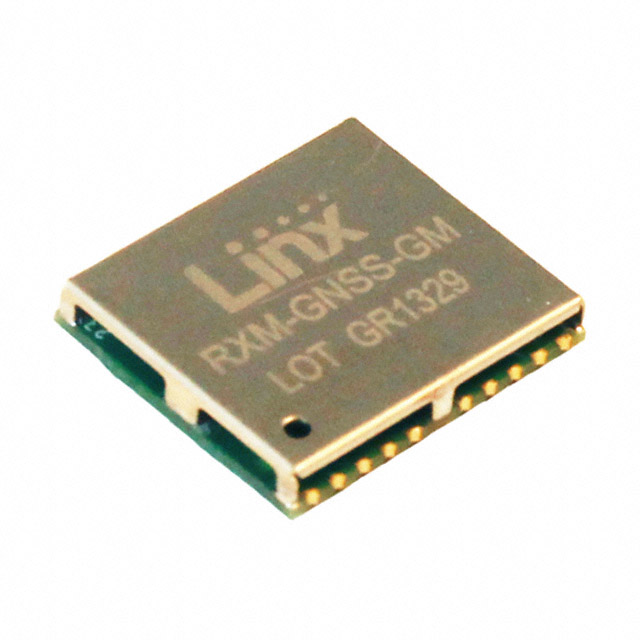

 TE Connectivity AMP Connectors | GNSS GPS | Not Included | 3 V | 4.3 V | Module | Surface Mount | -40 C | 85 °C | Fleet Management Location Navigation Tracking | 20 mA | UART | 1.575 GHz 1.602 GHz | 18-SMD Module | |

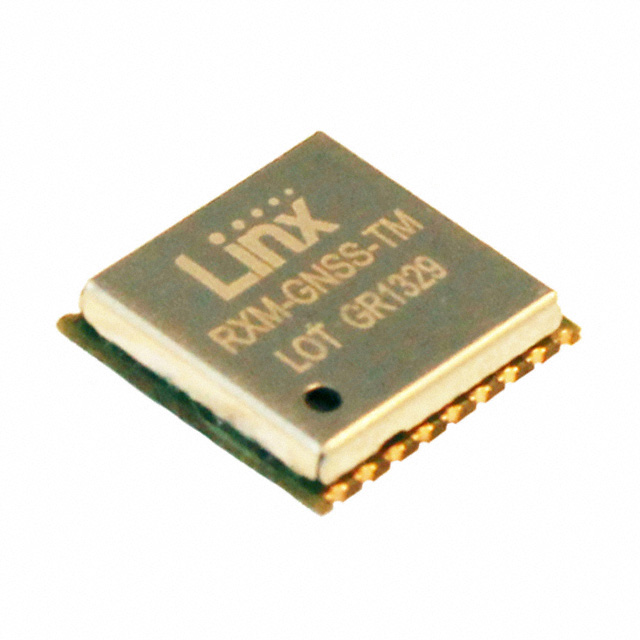

 TE Connectivity AMP Connectors | GNSS GPS | PCB Surface Mount | 3 V | 4.3 V | Module | Surface Mount | -40 C | 85 °C | Fleet Management Location Navigation Tracking | 16 mA | UART | 1.575 GHz 1.602 GHz | 20-SMD Module | -161 dB |
