Schaffner FN332 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 250VAC 6A CHASS MNT

Part	Current	Inductance	Frequency - Operating	Approval Agency	Mounting Type	Applications	Configuration	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Voltage - Rated AC
TE Connectivity AMP Connectors FN332Z-6-05	6 A	800 µH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Terminal Post	100 °C	-25 °C	Single Phase	250 V
TE Connectivity AMP Connectors FN332-6-05	6 A	800 µH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Quick Connect	100 °C	-25 °C	Single Phase	250 V
TE Connectivity AMP Connectors FN332Z-10-05	10 A	500 µH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Terminal Post	100 °C	-25 °C	Single Phase	250 V
TE Connectivity AMP Connectors FN332-6-05	6 A	800 µH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Quick Connect	100 °C	-25 °C	Single Phase	250 V
TE Connectivity AMP Connectors FN332Z-3-05	3 A	2 mH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Terminal Post	100 °C	-25 °C	Single Phase	250 V

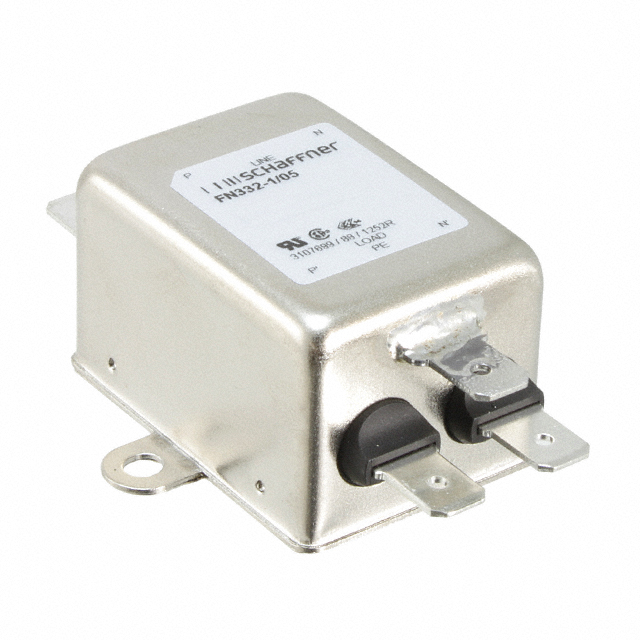

TE Connectivity AMP Connectors FN332-1-05	1 A	10 mH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Quick Connect	100 °C	-25 °C	Single Phase	250 V
TE Connectivity AMP Connectors FN332-3-05	3 A	2 mH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Quick Connect	100 °C	-25 °C	Single Phase	250 V
TE Connectivity AMP Connectors FN332Z-6-05	6 A	800 µH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Terminal Post	100 °C	-25 °C	Single Phase	250 V

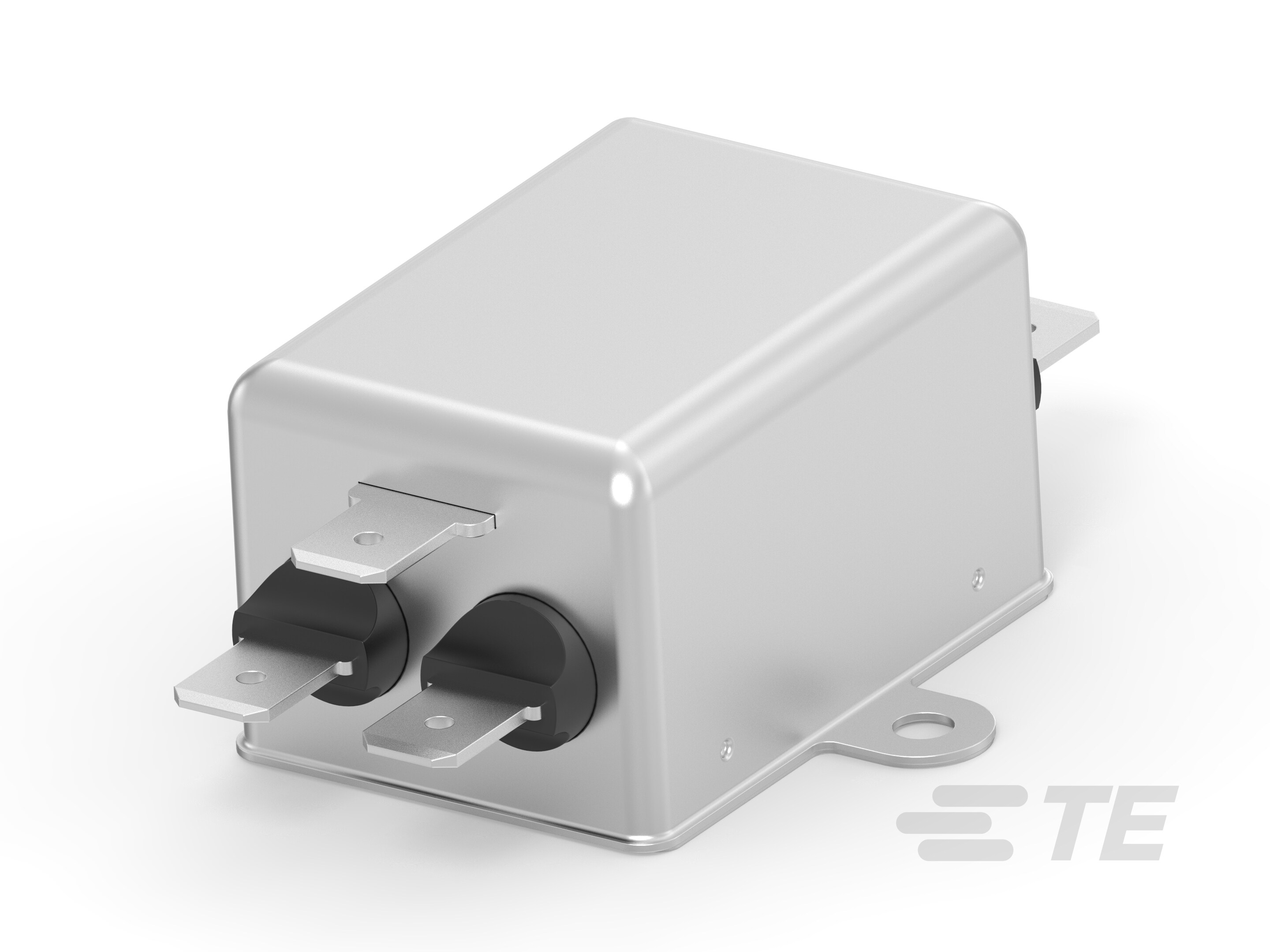

TE Connectivity AMP Connectors FN332Z-3-05	3 A	2 mH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Terminal Post	100 °C	-25 °C	Single Phase	250 V
TE Connectivity AMP Connectors FN332-10A-05	10 A	500 µH	DC ~ 400Hz	CSA ENEC UR	Chassis Mount	General Purpose	Single Stage	Quick Connect	100 °C	-25 °C	Single Phase	250 V
