LLEN Series
Manufacturer: Taiyo Yuden
Beta
⌘K

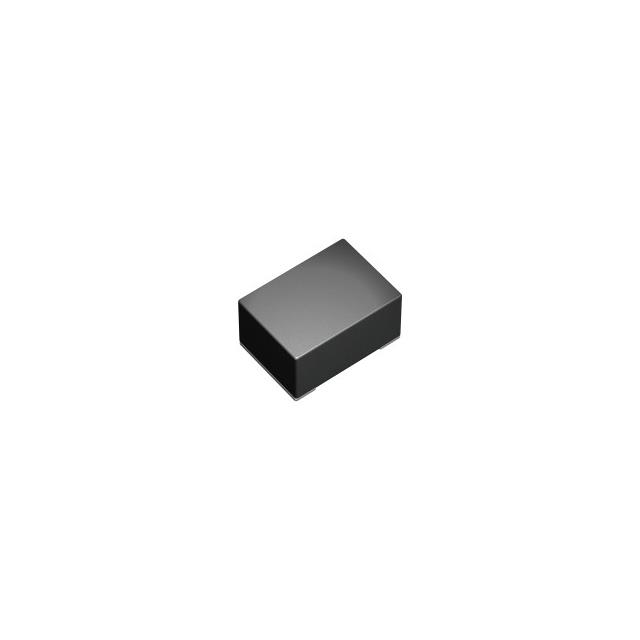

POWER INDUCTORS - SMD INDUCTOR,METAL WIRE-W CHIP,1.0UH20% ,T&R
| Part | Material - Core | Tolerance | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Supplier Device Package | Current - Saturation (Isat) | Shielding | Inductance | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taiyo Yuden | Metal | 20 % | 1 MHz | 53 mOhm | 2.5 mm | 0.079 in | 0.098 in | 2 mm | 1008 | 4.3 A | Unshielded | 1 µH | Surface Mount | 0.039 in | 1 mm | 125 °C | -40 C | 2520 Metric | 1008 | Wirewound | 3.3 A |
