83264 Series
Manufacturer: Belden Inc.
Beta
⌘K

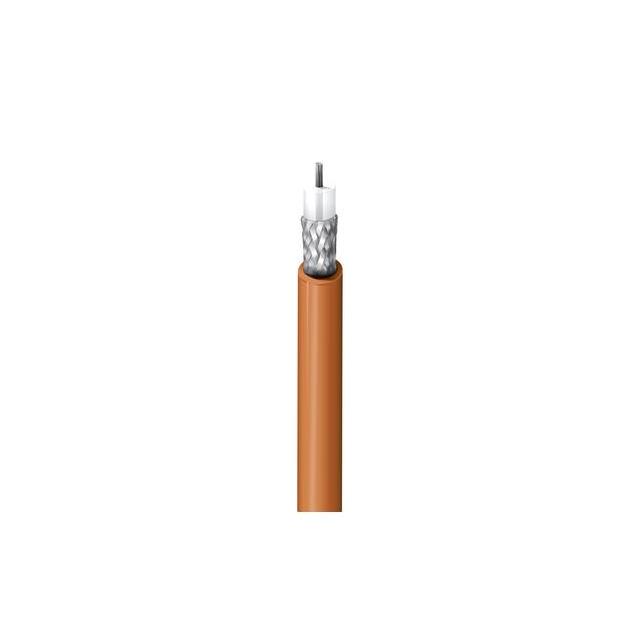

#30 COAX M17/94-RG179
| Part | Shield Material | Dielectric Material | Shield Coverage | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Cable Group | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color | Length [x] | Length [x] | Wire Gauge | Usage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Silver Coated | Polytetrafluoroethylene (PTFE) | 95 % | Copper Covered Silver Coated Steel | -70 °C | 200 °C | 0.063 in | 1.6 mm | 70 | Braid | 2.54 mm | 0.1 in | 75 Ohms | RG-179 | Coaxial | 38 AWG | 7 Strands | Fluorinated Ethylene-Propylene (FEP) | Brown | 304.8 m | 1000 ft | 30 AWG | Aerospace Video | ||
 Belden Inc. | Copper Silver Coated | Tetrafluoroethylene (TFE) | 95 % | Copper Covered Silver Coated Steel | -70 °C | 200 °C | 0.062 in | 1.57 mm | 69.5 | Braid | 2.54 mm | 0.1 in | 75 Ohms | Coaxial | 38 AWG | 7 Strands | Fluorinated Ethylene-Propylene (FEP) | Brown | 30 AWG | 100 ' | 30.48 m |
