35RASM Series

Catalog

PHONE AUDIO CONNECTOR, 3.5MM, 3 CONTACTS, JACK, SURFACE MOUNT RIGHT ANGLE, GOLD PLATED CONTACTS

Part	Contact Material	Contact Material - Plating	Body Color	Housing Material	Mounting Type	Termination	Shielding	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Features	Gender	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Insulation Color	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Signal Lines	Current Rating (Amps)	Voltage - Rated	Internal Switch(s)	Operating Temperature [Max]	Operating Temperature [Min]
SWITCHCRAFT/CONXALL 35RASMT2BHWNTRX	Copper Alloy	Gold	Black	Thermoplastic	Right Angle Surface Mount	Solder	Unshielded	Phone Jack	0.142 in	3.6 mm	Board Guide	Female	3	3	Black	0.125 in	3.5 mm	0.141 in	Stereo (3 Conductor TRS)
SWITCHCRAFT/CONXALL 35RASMT4BHNTRX	Copper Alloy	Silver	Black	Thermoplastic	Right Angle Surface Mount	Solder	Unshielded	Phone Jack	0.142 in	3.6 mm	Board Guide	Female	5	3		0.125 in	3.5 mm	0.141 in	Stereo (3 Conductor TRS)	3 A	250 VAC	Two Switches	85 °C	-25 °C

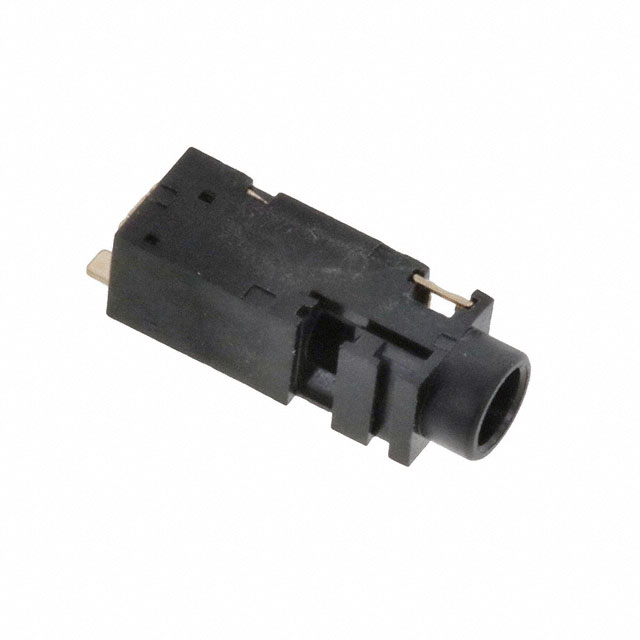

SWITCHCRAFT/CONXALL 35RASMT2AHNTRX	Copper Alloy		Black	Thermoplastic	Right Angle Surface Mount	Solder	Unshielded	Phone Jack	0.142 in	3.6 mm	Board Guide	Female	3	2		0.125 in	3.5 mm	0.141 in	Mono	3 A	250 VAC	Single Switch	85 °C	-25 °C

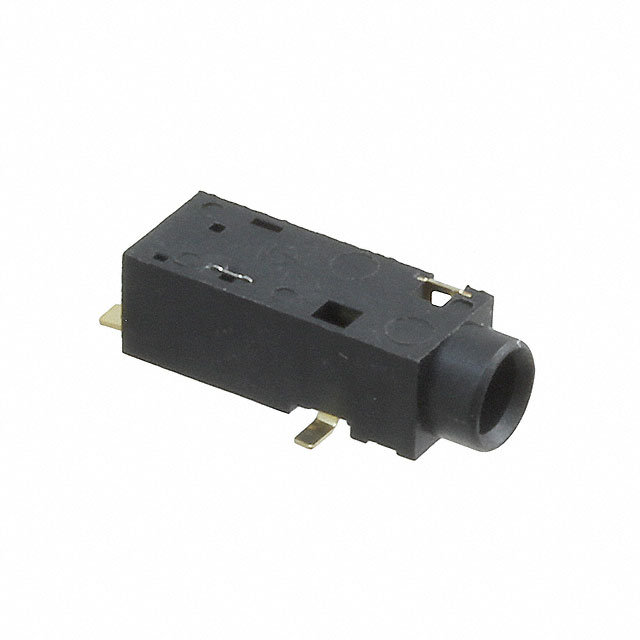

SWITCHCRAFT/CONXALL 35RASMT3BHNTRX	Copper Alloy	Silver	Black	Thermoplastic	Right Angle Surface Mount	Solder	Unshielded	Phone Jack	0.142 in	3.6 mm	Board Guide	Female	4	3		0.125 in	3.5 mm	0.141 in	Stereo (3 Conductor TRS)	3 A	250 VAC	Single Switch	85 °C	-25 °C
