DIN-Signal R Series
Manufacturer: HARTING
Beta
⌘K

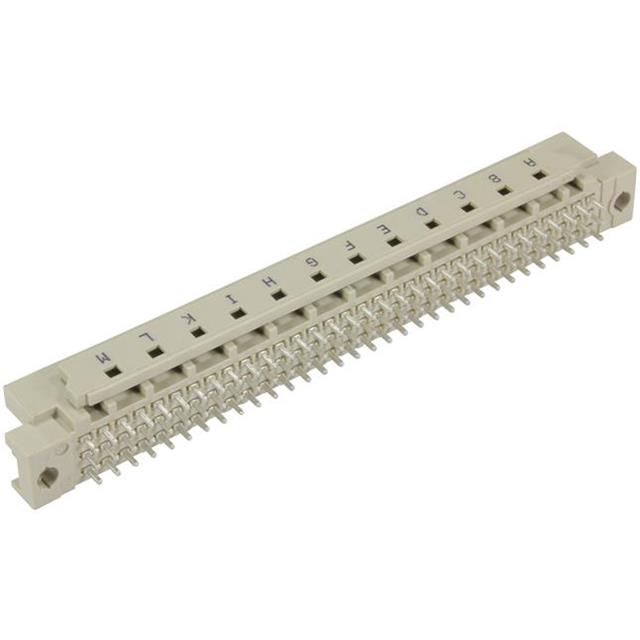

DIN 41612 CONNECTORS DIN-SIGNAL R096FR-3,0C1-2
| Part | Connector Type | Mounting Type | Style | Number of Positions | Number of Positions Loaded | Number of Rows [custom] | Termination | Contact Finish | Pitch | Pitch | Material - Insulation | Current Rating (Amps) | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Receptacle Female Sockets | Right Angle Through Hole | R | 96 | All | 3 | Solder | Gold | 0.1 " | 2.54 mm | ||||||
 HARTING | Header Male Pins | Through Hole | R | 96 | All | 3 | Press-Fit | Gold-Palladium | 0.1 " | 2.54 mm | ||||||
 HARTING | Header Male Pins | Through Hole | R | 96 | All | 3 | Press-Fit | Gold-Palladium | 0.1 " | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2 A | UL94 V-0 | -55 C | 125 °C | Flash |
 HARTING | Header Male Pins | Through Hole | R | 96 | All | 3 | Solder | 0.1 " | 2.54 mm |
