950414 Series

Catalog

CONN RCPT 14P 0.079 GOLD PCB R/A

Part	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Color	Contact Finish - Post	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Termination	Number of Rows [custom]	Voltage Rating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height [z]	Contact Type	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Fastening Type	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
3M Electronic Specialty 950414-5002-AR	Thermoplastic	40 Áin	1.02 Ám	Copper Alloy	Square	Black	Tin	Gold	0.118 in	3 mm	Solder	2	1000 VDC	Flash	4.85 mm	0.191 in	Female Socket	Right Angle Through Hole	0.079 "	2 mm	All	UL94 V-0	2 mm	0.079 in	Receptacle	-40 C	105 ░C	14	Push-Pull

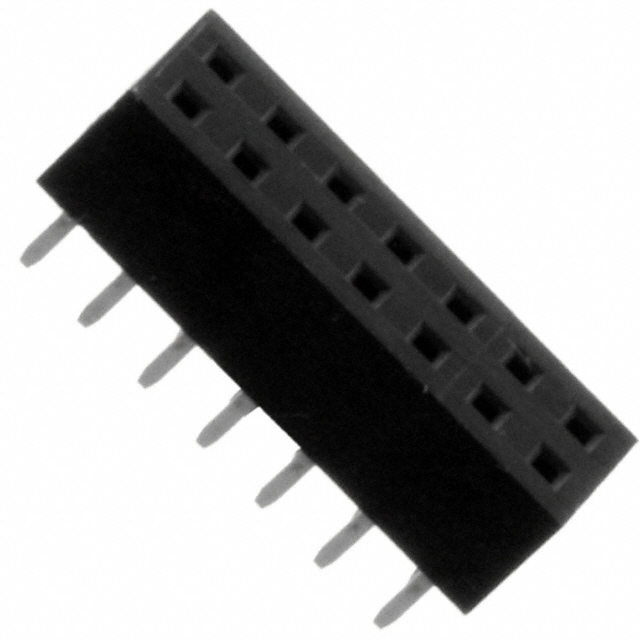

3M Electronic Specialty 950414-6102-AR	Thermoplastic	40 Áin	1.02 Ám	Copper Alloy	Square	Black	Tin	Gold			Solder	2	1000 VDC	Flash	4.3 mm		Female Socket	Through Hole	0.079 "	2 mm	All	UL94 V-0	2 mm	0.079 in	Receptacle	-40 C	105 ░C	14	Push-Pull	0.169 "	0.106 in	2.69 mm
