FKCS Series

Catalog

PLUGGABLE TERMINAL BLOCKS 12 POS 5MM PITCH PLUG 24-12AWG SPRING

Part	Housing Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Material Flammability Rating	Wire Strip Length	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Number of Levels	Mounting Type	Plug Wire Entry	Contact Mating Finish	Voltage - UL	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - IEC	Type	Positions Per Level	Current - UL	Pitch	Pitch	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - IEC	Termination Style	Features

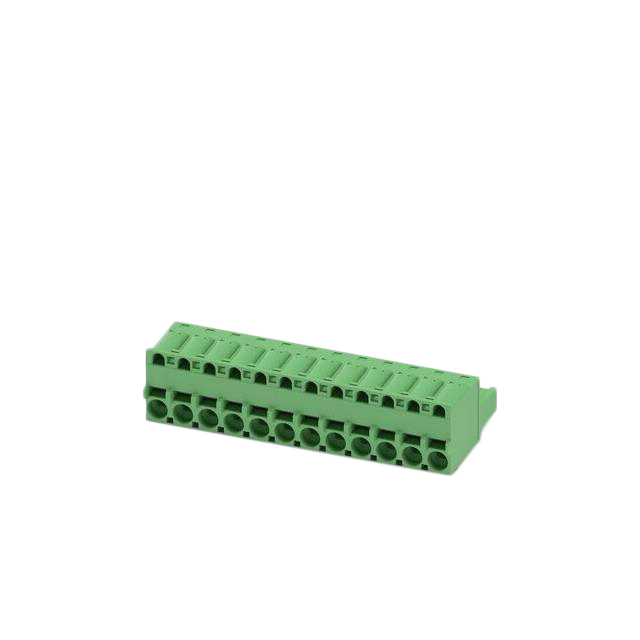

Phoenix Contact 1974834	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	UL94 V-0	10 mm	0.591 in	15 mm	12	1	Free Hanging (In-Line)	180 °	Tin	300 V	2.5 mm²	0.2 mm²	12 A	Plug Female Sockets	12	10 A	0.197 in	5 mm	Green	12 AWG	26 AWG	630 V	Push-In Spring Screwless - Leg Spring

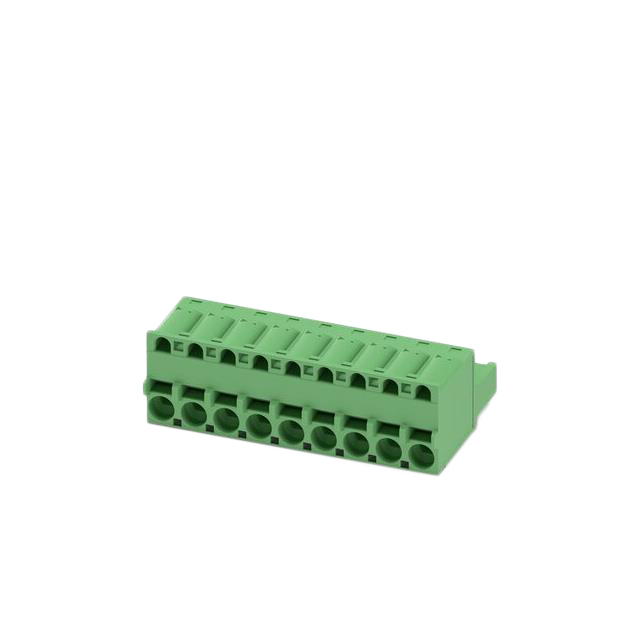

Phoenix Contact 1974805	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	UL94 V-0	10 mm	0.591 in	15 mm	9	1	Free Hanging (In-Line)	180 °	Tin	300 V	2.5 mm²	0.2 mm²	12 A	Plug Female Sockets	9	10 A	0.197 in	5 mm	Green	12 AWG	26 AWG	630 V	Push-In Spring Screwless - Leg Spring

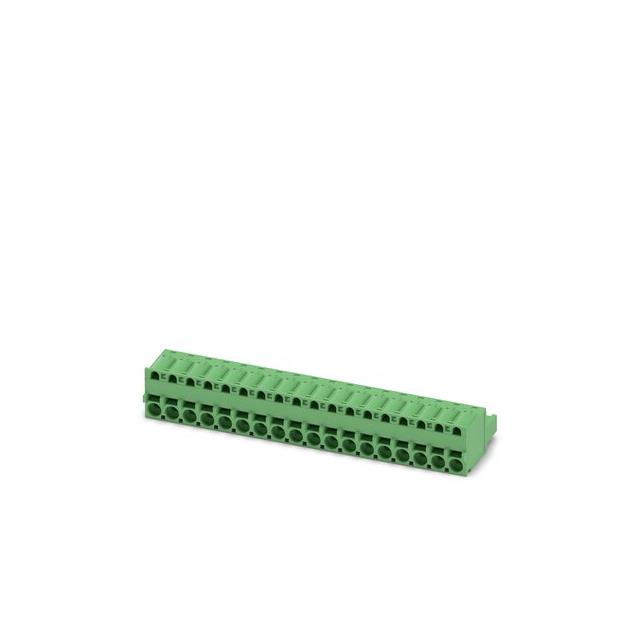

Phoenix Contact 1975231	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	UL94 V-0	10 mm	0.591 in	15 mm	18	1	Free Hanging (In-Line)	180 °	Tin	300 V	2.5 mm²	0.2 mm²	12 A	Plug Female Sockets	18	10 A	0.2 in	5.08 mm	Green	12 AWG	26 AWG	630 V	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1975079	Polyamide (PA) Nylon			UL94 V-0	10 mm	0.591 in	15 mm	2	1	Free Hanging (In-Line)	180 °	Tin	300 V	2.5 mm²	0.2 mm²	12 A	Plug Female Sockets	2	10 A	0.2 in	5.08 mm	Green	12 AWG	26 AWG	630 V	Push-In Spring Screwless - Leg Spring

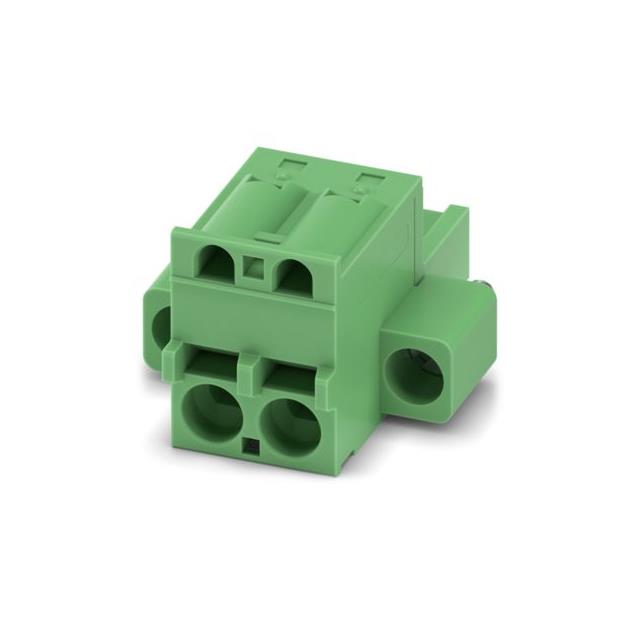

Phoenix Contact 1975260	Polyamide (PA) Nylon			UL94 V-0	10 mm	0.591 in	15 mm	2	1	Free Hanging (In-Line)	180 °	Tin	300 V	2.5 mm²	0.2 mm²	12 A	Plug Female Sockets	2	10 A	0.2 in	5.08 mm	Green	12 AWG	26 AWG	630 V	Push-In Spring Screwless - Leg Spring	Mating Flange Retention Latches (Non-Wire Side)
