745-051 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 51POS 0.100

Part	Termination Rows	Material - Insulation	Number of Rows	Termination	Contact Material	Pitch	Pitch	Color	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Type	Number of Positions	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Gender	Card Type	Operating Temperature [Min]	Operating Temperature [Max]
EDAC Inc. 745-051-545-101	1	Polyester Thermoplastic	1	Press-Fit	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C
EDAC Inc. 745-051-525-101	1	Polyester Thermoplastic	1	Press-Fit	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C

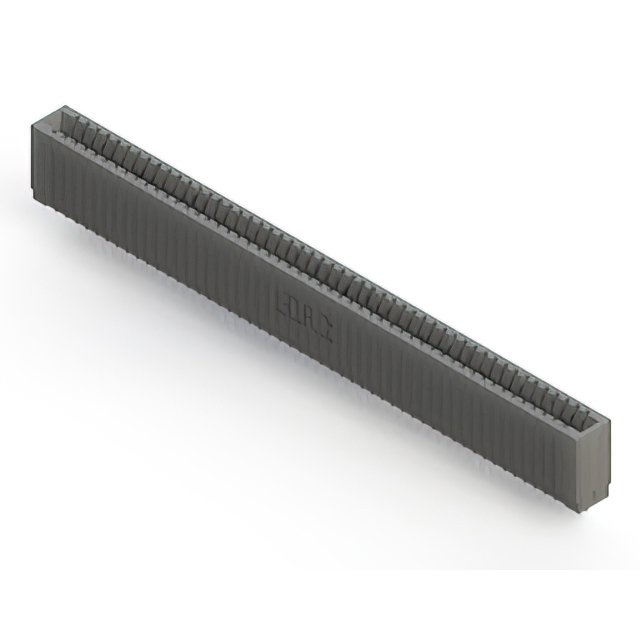

EDAC Inc. 745-051-520-101	1	Polyester Thermoplastic	1	Press-Fit	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C
EDAC Inc. 745-051-540-106	1	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C

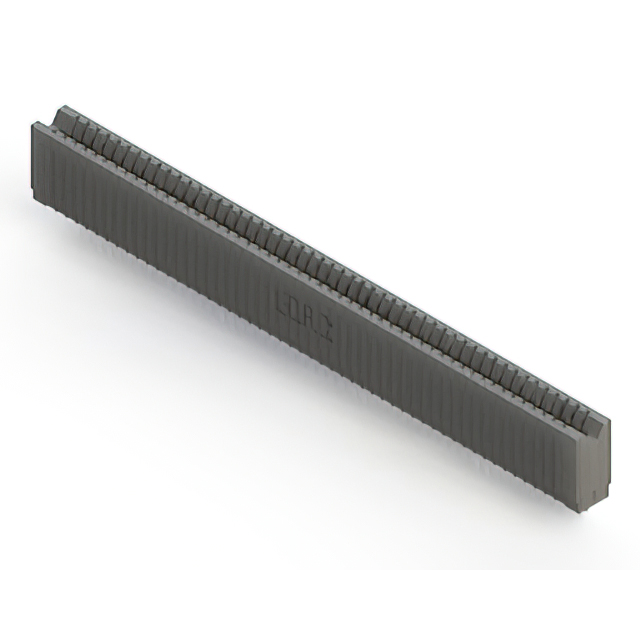

EDAC Inc. 745-051-525-106	1	Polyester Thermoplastic	1	Press-Fit	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C
EDAC Inc. 745-051-522-101	1	Polyester Thermoplastic	1	Press-Fit	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C
EDAC Inc. 745-051-545-106	1	Polyester Thermoplastic	1	Press-Fit	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C
EDAC Inc. 745-051-541-101	1	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C
EDAC Inc. 745-051-522-106	1	Polyester Thermoplastic	1	Press-Fit	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C
EDAC Inc. 745-051-540-101	1	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Copper Alloy	0.1 "	2.54 mm	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	51	Single	30 Áin	0.76 Ám	51	Female	Non Specified - Single Edge	-40 C	105 ░C
